417224277
Axle - 8mm This part replaces 417223992.

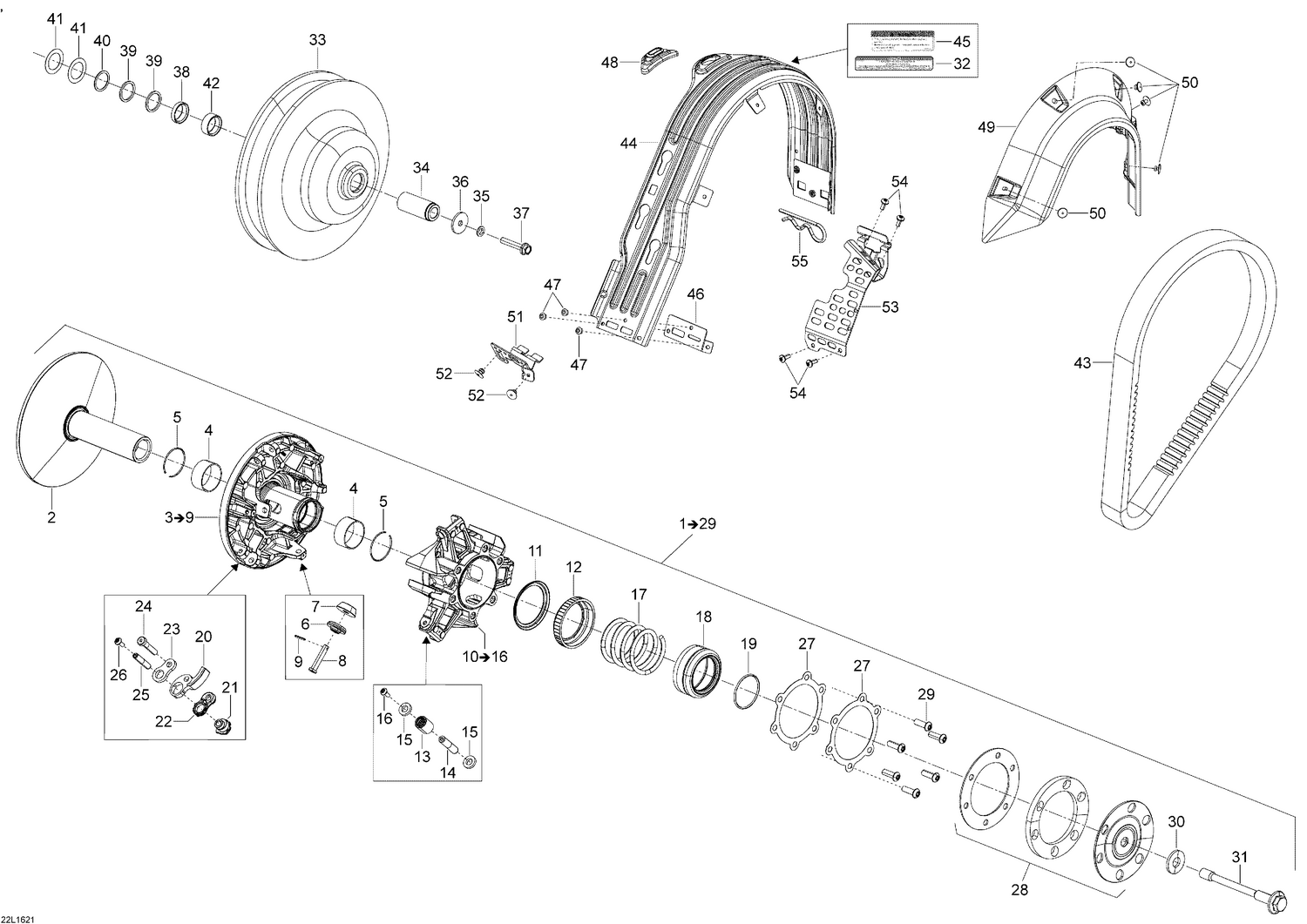

Схема сборки, где используется деталь
Used in (33 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 05- Pulley System | Lynx / 2016 / Rave / Rave RS (2-Stroke), 2016 000SFGB00 / 05- Pulley System | 8 |
| LNX_EN_US | 05- Pulley System | Lynx / 2017 / Rave / Rave RS Racing, 2017 000SFHB00 / 05- Pulley System | 8 |
| LNX_EN_US | 05- Pulley Boondocker - 850 E-TEC - Package DS | Lynx / 2018 / Boondocker Series / Boondocker 850 E-TEC, 2018 000LGJD00 000LGJE00 | 7 |
| LNX_EN_US | 05- Pulley Boondocker - 850 E-TEC - Package RE | Lynx / 2018 / Boondocker Series / Boondocker 850 E-TEC, 2018 000LGJD00 000LGJE00 | 7 |
| LNX_EN_US | 05- Pulley Rave - 850 E-TEC | Lynx / 2018 / RAVE Series / RAVE 850 E-TEC, 2018 000STJE00 000STJF00 / 05- Pulle | 7 |
| LNX_EN_US | 05- Pulley Rave - 600 RS | Lynx / 2018 / RAVE Series / RAVE Racing, 2018 000SFJB00 / 05- Pulley Rave - 600 | 11g |
| LNX_EN_US | 05- Pulley Xtrim - 850 E-TEC | Lynx / 2018 / XTRIM Series / XTRIM 850 E-TEC, 2018 000LEJE00 000LEJF00 000LEJG00 | 7 |
| LNX_EN_US | 05- Pulley - BoonDocker - 850 E-TEC | Lynx / 2019 / 002 - BoonDocker Series / 001 - BoonDocker DS 850 E-TEC, 2019 000L | 10g |
| LNX_EN_US | 05- Pulley - Rave - 850 E-TEC | Lynx / 2019 / 006 - RAVE Series / 002 - RAVE 850 E-TEC, 2019 000SUKA00 000SUKB00 | 10g |
| LNX_EN_US | 05- Pulley - Rave - 600 Racing | Lynx / 2019 / 006 - RAVE Series / 003 - RAVE RS 600 RS E-TEC, 2019 000SFKB00 / 0 | 10g |
| LNX_EN_US | 05- Pulley XTerrain - 850 E-TEC | Lynx / 2019 / 007 - XTerrain Series / 002 - XTerrain 850 E-TEC, 2019 000LUKA00 0 | 10g |
| LNX_EN_US | 05- Pulley Xtrim - 850 E-TEC | Lynx / 2019 / 008 - XTRIM Series / 001 - XTRIM 850 E-TEC, 2019 000LEKA00 000LEKB | 10g |
| LNX_EN_US | 05- Pulley - System - Racing | Lynx / 2020 / 005 - RAVE Series / 003 - RAVE RS 600RS E-TEC, 2020 000SFLB00 / 05 | 10g |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2016 / MXZ Family / MXZ 600 RS, 2016 000BMGA00 000BMGB00 / 05- Pulley | 22 |
| SKI_DOO_EN_US | 05- Pulley System - AllModels | Ski-Doo / 2017 / MXZ Family / MXZ - 2-STROKE - 850 E-TEC, 2017 000UDHD00 000UDHE | 4e |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2017 / MXZ Family / MXZ 600 RS, 2017 000BMHA00 000BMHB00 / 05- Pulley | 22 |
| SKI_DOO_EN_US | 05- Pulley System - All Models | Ski-Doo / 2017 / RENEGADE Family / RENEGADE - 2-STROKE - 850 E-TEC, 2017 000UFHX | 4e |
| SKI_DOO_EN_US | 05- Pulley System - All Models | Ski-Doo / 2017 / SUMMIT Family / SUMMIT - 850 E-TEC, 2017 000CEHA00 000CEHB00 00 | 4e |
| SKI_DOO_EN_US | 05- Pulley | Ski-Doo / 2018 / SKI-DOO - FREERIDE Series / FREERIDE 850 E-TEC, 2018 000MEJA00 | 4e |
| SKI_DOO_EN_US | 05- Pulley MXZ RS | Ski-Doo / 2018 / SKI-DOO - MXZ Racing / 1- MXZ 600RS - Racing, 2018 000BMJA00 00 | 2e |
| SKI_DOO_EN_US | 05- Pulley | Ski-Doo / 2018 / SKI-DOO - MXZ Series / 4- MXZ 850 E-TEC, 2018 000MXJA00 000MXJB | 4e |
| SKI_DOO_EN_US | 05- Pulley | Ski-Doo / 2018 / SKI-DOO - RENEGADE Series / 5- RENEGADE 850 E-TEC, 2018 000UFJA | 4e |
| SKI_DOO_EN_US | 05- Pulley | Ski-Doo / 2018 / SKI-DOO - SUMMIT Series / 3A- SUMMIT 850 E-TEC, 2018 ( SKU List | 4e |
| SKI_DOO_EN_US | 05- Pulley | Ski-Doo / 2019 / SKI-DOO - BACKCOUNTRY Series / 002 - BACKCOUNTRY 850 E-TEC, 201 | 4e |
| SKI_DOO_EN_US | 05- Pulley | Ski-Doo / 2019 / SKI-DOO - FREERIDE Series / 001 - FREERIDE 137 850 E-TEC, 2019 | 4e |
| SKI_DOO_EN_US | 05- Pulley | Ski-Doo / 2019 / SKI-DOO - FREERIDE Series / 002 - FREERIDE 146 850 E-TEC, 2019 | 4e |
| SKI_DOO_EN_US | 05- Pulley | Ski-Doo / 2019 / SKI-DOO - MXZ Series / 003 - MXZ 850 E-TEC, 2019 000MXKA00 000M | 4e |
| SKI_DOO_EN_US | 05- Pulley - 600 Racing | Ski-Doo / 2019 / SKI-DOO - MXZ Series / 004 - MXZ 600 RACING, 2019 000BMKA00 000 | 2e |
| SKI_DOO_EN_US | 05- Pulley | Ski-Doo / 2019 / SKI-DOO - RENEGADE Series / 005 - RENEGADE 850 E-TEC - Adrenali | 4e |
| SKI_DOO_EN_US | 05- Pulley | Ski-Doo / 2019 / SKI-DOO - RENEGADE Series / 006 - RENEGADE 850 E-TEC - Enduro, | 10b5 |
| SKI_DOO_EN_US | 05- Pulley | Ski-Doo / 2019 / SKI-DOO - SUMMIT Series / 003A - SUMMIT 850 E-TEC, 2019 ( SKU | 4e |
| SKI_DOO_EN_US | 05- Pulley - System - Racing | Ski-Doo / 2020 / 005 - SKI-DOO - North America - MXZ Series / 009 - MXZ 600RS - | 10b5 |
| SKI_DOO_EN_US | 05- Pulley - System - Racing | Ski-Doo / 2020 / 014 - SKI-DOO - Europe - MXZ Series / 003 - MXZ 600RS - Europe, | 2e |
