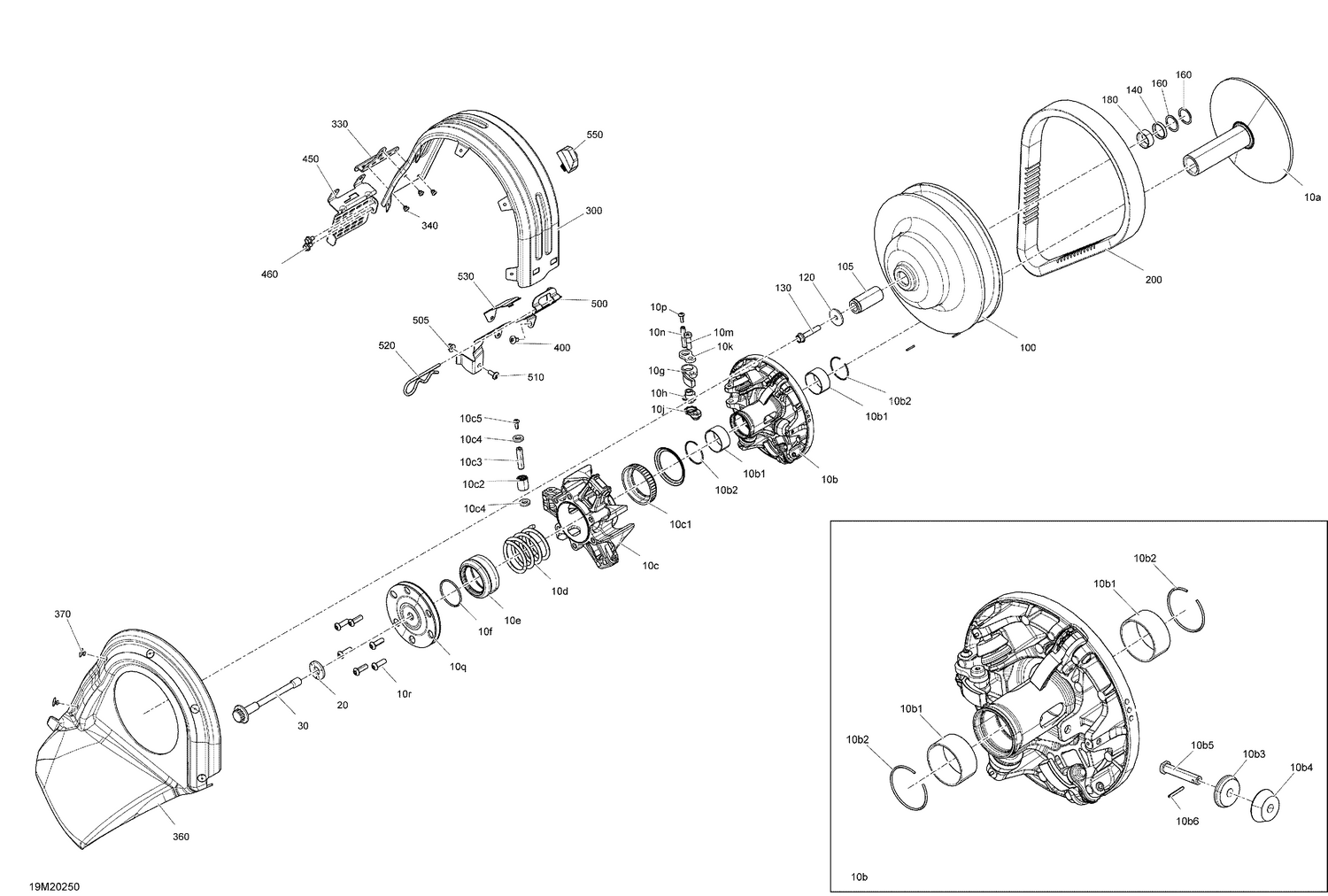

05- Pulley - System - Racing
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 417224579 | Sheave Drive Pulley Ass'y |
| 10b1 | 293250389 | Bushing |
| 10b2 | 293370137 | Circlip This part replaces 293370117. |
| 10b3 | 417224909 | Interior Roller Pullet This part replaces 417223991. |
| 10b4 | 417224916 | Pulley Roller Ext This part replaces 417224458. |
| 10b5 | 417224277 | Axle - 8mm |
| 10b6 | 250400101 | Spring Pin 2.6MM X 20.5MM This part replaces 250400074. |
| 10c1 | 417224571 | Stopper Spring This part replaces 417224151. |
| 10c2 | 417224947 | Roller Pulley Ass'y This part replaces 417223808. |
| 10c3 | 417224204 | Axle - 10mm This part replaces 417223989. |
| 10c4 | 417224868 | Thrust Washer This part replaces 417224009. |
| 10c5 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 10d | 417224234 | Clutch Spring |
| 10e | 417224003 | Seat Spring |
| 10f | 293370116 | Circlip |
| 10g | 417224274 | Ramp 974 |
| 10h | 417224113 | Molded Cam |
| 10j | 417224086 | RH Lever |
| 10k | 417224114 | LH Lever |
| 10m | 417224220 | Pivot 26mm |
| 10n | 417224694 | Pin Ramp This part replaces 417223631. |
| 10p | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 10q | 417224682 | VIbration Damper This part replaces 417223994. |
| 10r | 250000757 | Button Head Torx Screw M8 X 25 S.Gr |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300522 | Pulley Drive Bolt M14 X 144 |
| 100 | 417127916 | Driven Pulley Ass'y This part replaces 417127762. |
| 105 | 417127300 | Bushing |
| 120 | 503183100 | Washer |
| 130 | 207584544 | Hex. Flange Screw M8 X 45, Scotch Grip |
| 140 | 504149100 | Spacer |
| 160 | 417300265 | Spacer |
| 180 | 417300399 | Spacer |
| 200 | 417300572 | Drive Belt |
| 300 | 417300620 | Belt Guard This part replaces 417300479. |
| 330 | 417300525 | Front Retaining Hook |
| 340 | 390909200 | Avex Rivet |
| 360 | 417300565 | CVT Air Duct |
| 370 | 293150103 | Pop Rivet 3/16" |
| 400 | 250000767 | Torx Truss Screw M6 X 12 |
| 450 | 417300546 | Support |
| 460 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 500 | 417300482 | Belt Guard Bracket |
| 505 | 233261466 | Hex. Flange Elastic Nut M6 |
| 510 | 250000755 | Torx Screw M6 X 16 |
| 520 | 114045200 | Hair Pin |
| 530 | 417300567 | Slide |
