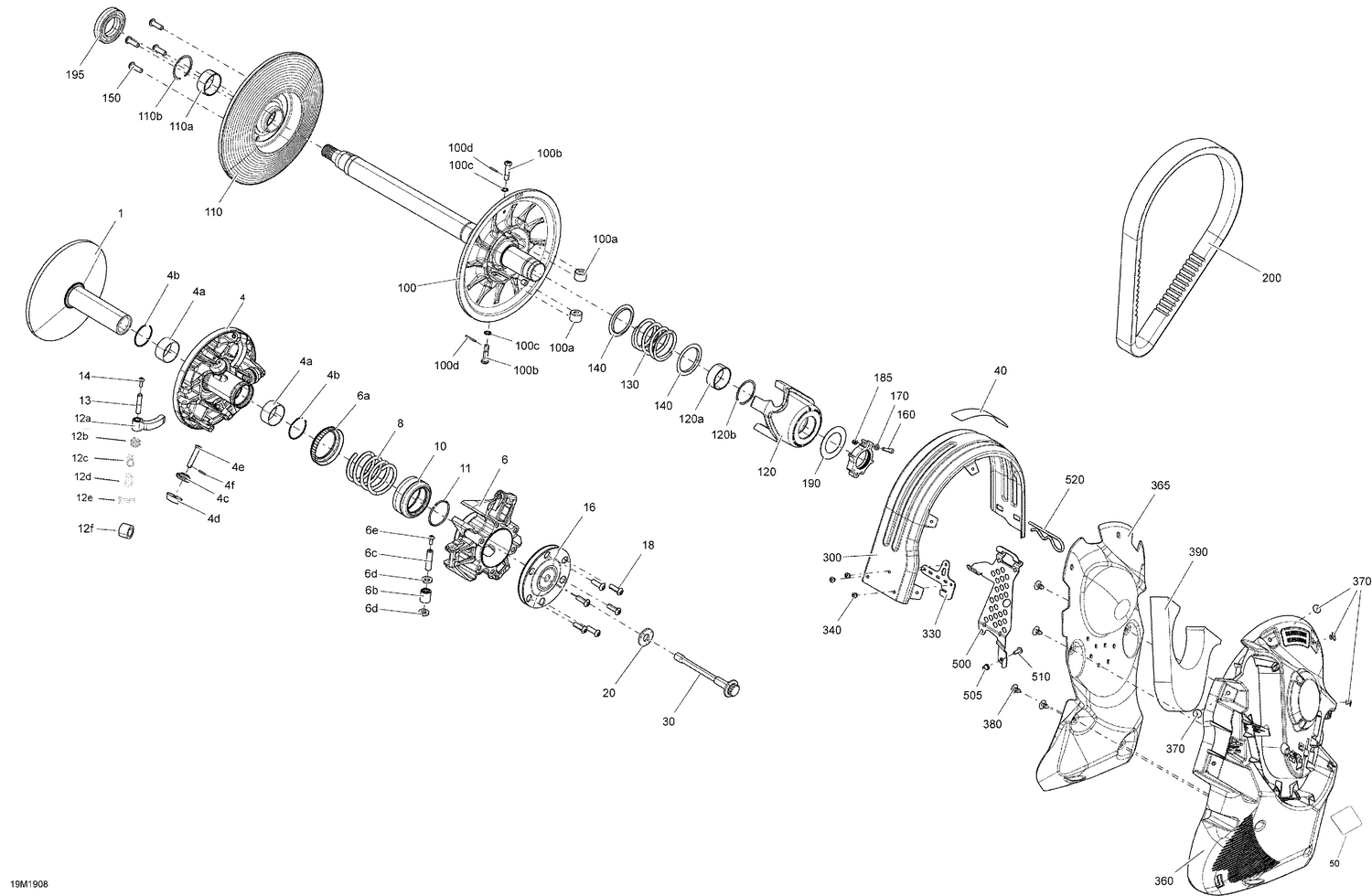

05- Pulley
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417224332 | Fixed Flange Ass'y This part replaces 417224278. |
| 4a | 293250389 | Bushing |
| 4b | 293370137 | Circlip This part replaces 293370117. |
| 4c | 417224153 | Back Torque Roller |
| 4d | 417224916 | Pulley Roller Ext This part replaces 417224458. |
| 4e | 417224277 | Axle - 8mm |
| 4f | 250400101 | Spring Pin 2.6MM X 20.5MM This part replaces 250400074. |
| 6a | 417224002 | Spring Guide |
| 6b | 417224947 | Roller Pulley Ass'y This part replaces 417223808. |
| 6c | 417224204 | Axle - 10mm This part replaces 417223989. |
| 6d | 417224868 | Thrust Washer This part replaces 417224009. |
| 6e | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 8 | 417224015 | Clutch Spring |
| 10 | 417224003 | Seat Spring |
| 11 | 293370116 | Circlip |
| 12a | 417224326 | Ramp 990 |
| 12b | 417224113 | Molded Cam |
| 12c | 417224086 | RH Lever |
| 12d | 417224114 | LH Lever |
| 12e | 417224222 | Pivot 38mm |
| 13 | 417224694 | Pin Ramp This part replaces 417223631. |
| 14 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 16 | 417224682 | VIbration Damper This part replaces 417224201. |
| 18 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300522 | Pulley Drive Bolt M14 X 144 |
| 40 | 516007667 | Warning Decal |
| 50 | 516009265 | Decal Ramp Clicker |
| 100a | 417127016 | Pulley Roller |
| 100b | 417127294 | Pivot Stud |
| 100c | 250200009 | Lock Washer 8 mm |
| 100d | 250400070 | Spring Pin |
| 110a | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 110b | 293370049 | Circlip |
| 120a | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 120b | 293370049 | Circlip |
| 130 | 417127039 | Black, Return Spring |
| 140 | 417127116 | Swivel Abutment |
| 150 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr |
| 155 | 415129604 | Calibration Ass'y |
| 160 | 250000981 | Socket Screw M5 X 25 |
| 170 | 234051410 | Flat Washer M5 |
| 185 | 232551414 | Elastic Stop Nut M5 |
| 190 | 417127155 | Washer |
| 195 | 504152574 | Ball Bearing |
| 200 | 417300571 | Drive Belt |
| 300 | 417300620 | Belt Guard This part replaces 417300479. |
| 330 | 417300561 | Front Retaining Hook |
| 340 | 390909200 | Avex Rivet |
| 360a | 417300553 | CVT Duct Cooling |
| 360b | 414575600 | Hair Pin |
| 365 | 417300590 | Acoustic Panel This part replaces 417300542. |
| 370 | 293150103 | Pop Rivet 3/16" |
| 380 | 414644300 | Black, Dart |
| 500 | 417300514 | Support Guard |
| 505 | 233261466 | Hex. Flange Elastic Nut M6 |
| 510 | 250000755 | Torx Screw M6 X 16 |
