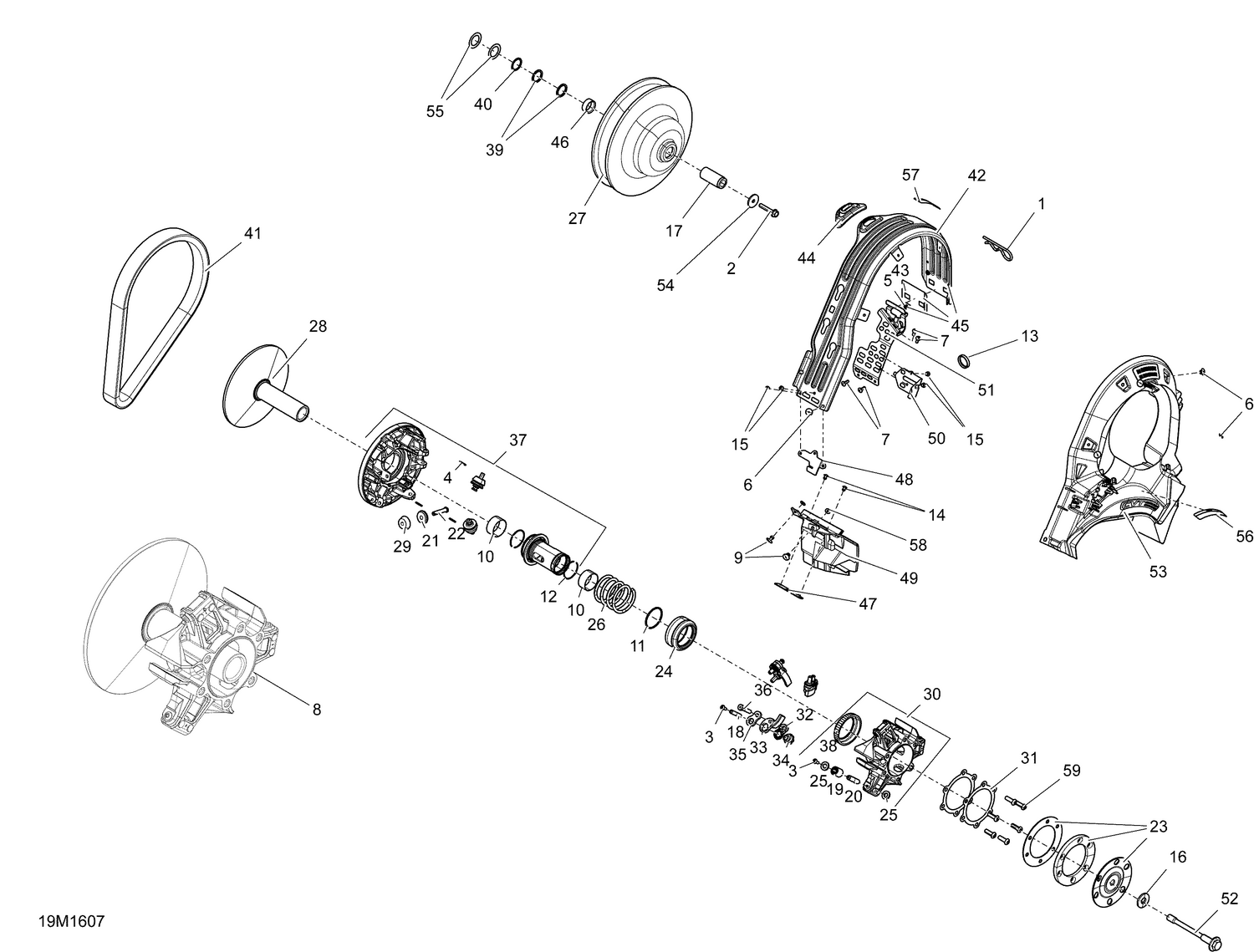

05- Pulley System
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 114045200 | Hair Pin |
| 2 | 207584544 | Hex. Flange Screw M8 X 45, Scotch Grip |
| 3 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 4 | 250400101 | Spring Pin 2.6MM X 20.5MM This part replaces 250400074. |
| 5 | 293150091 | Henrob Rivet |
| 6 | 293150103 | Pop Rivet 3/16" |
| 7 | 250000742 | Torx Screw M5 X 14 |
| 9 | 293150104 | Pop Rivet 3/16" |
| 10 | 293250389 | Bushing |
| 11 | 293370116 | Circlip |
| 12 | 293370137 | Circlip This part replaces 293370117. |
| 13 | 504149100 | Spacer |
| 14 | 390909100 | Avex Rivet |
| 15 | 390909200 | Avex Rivet |
| 16 | 250200144 | Conical Spring Washer M14 |
| 17 | 417127300 | Bushing |
| 18 | 417224694 | Pin Ramp This part replaces 417223631. |
| 19 | 417224947 | Roller Pulley Ass'y This part replaces 417223808. |
| 20 | 417224204 | Axle - 10mm This part replaces 417223989. |
| 21 | 417224909 | Interior Roller Pullet This part replaces 417223991. |
| 22 | 417224277 | Axle - 8mm This part replaces 417223992. |
| 23 | 417224682 | VIbration Damper This part replaces 417223994. |
| 24 | 417224003 | Seat Spring |
| 25 | 417224868 | Thrust Washer This part replaces 417224009. |
| 26 | 417224111 | Clutch Spring |
| 27 | 417127517 | PULLEY-DRIVEN - Call your local BRP dealership |
| 29 | 417224916 | Pulley Roller Ext This part replaces 417224034. |
| 31 | 417224060 | Spacer |
| 32 | 417224086 | RH Lever |
| 33 | 417224112 | Ramp 960 |
| 34 | 417224113 | Molded Cam |
| 35 | 417224114 | LH Lever |
| 36 | 417224222 | Pivot 38mm This part replaces 417224117. |
| 38 | 417224571 | Stopper Spring This part replaces 417224151. |
| 39 | 417300252 | Spacer |
| 40 | 417300265 | Spacer |
| 41 | 417300534 | Drive Belt This part replaces 417300288. |
| 42 | 417300357 | Belt Guard |
| 43 | 417300372 | PLATE - Call your local BRP dealership |
| 44 | 417300381 | Guide |
| 45 | 860200362 | BELT GUARD ASS'Y KIT - Call your local BRP dealership |
| 46 | 417300399 | Spacer |
| 47 | 417300421 | Reinforcement Plate |
| 48 | 417300423 | Front Bracket |
| 49 | 417300430 | Front Support |
| 50 | 417300445 | Stopper |
| 51 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership |
| 52 | 417300493 | BOLT-PULLEY DRIVE - Call your local BRP dealership |
| 53 | 417300440 | CVT Air Duct Pulley |
| 53 | 417300501 | CVT AIR DUCT - Call your local BRP dealership |
| 54 | 503183100 | Washer |
| 55 | 504112000 | Shim |
| 56 | 516005503 | Decal English |
| 57 | 516005509 | Safety Belt Guard Decal |
| 58 | 517225900 | Flat Washer |
