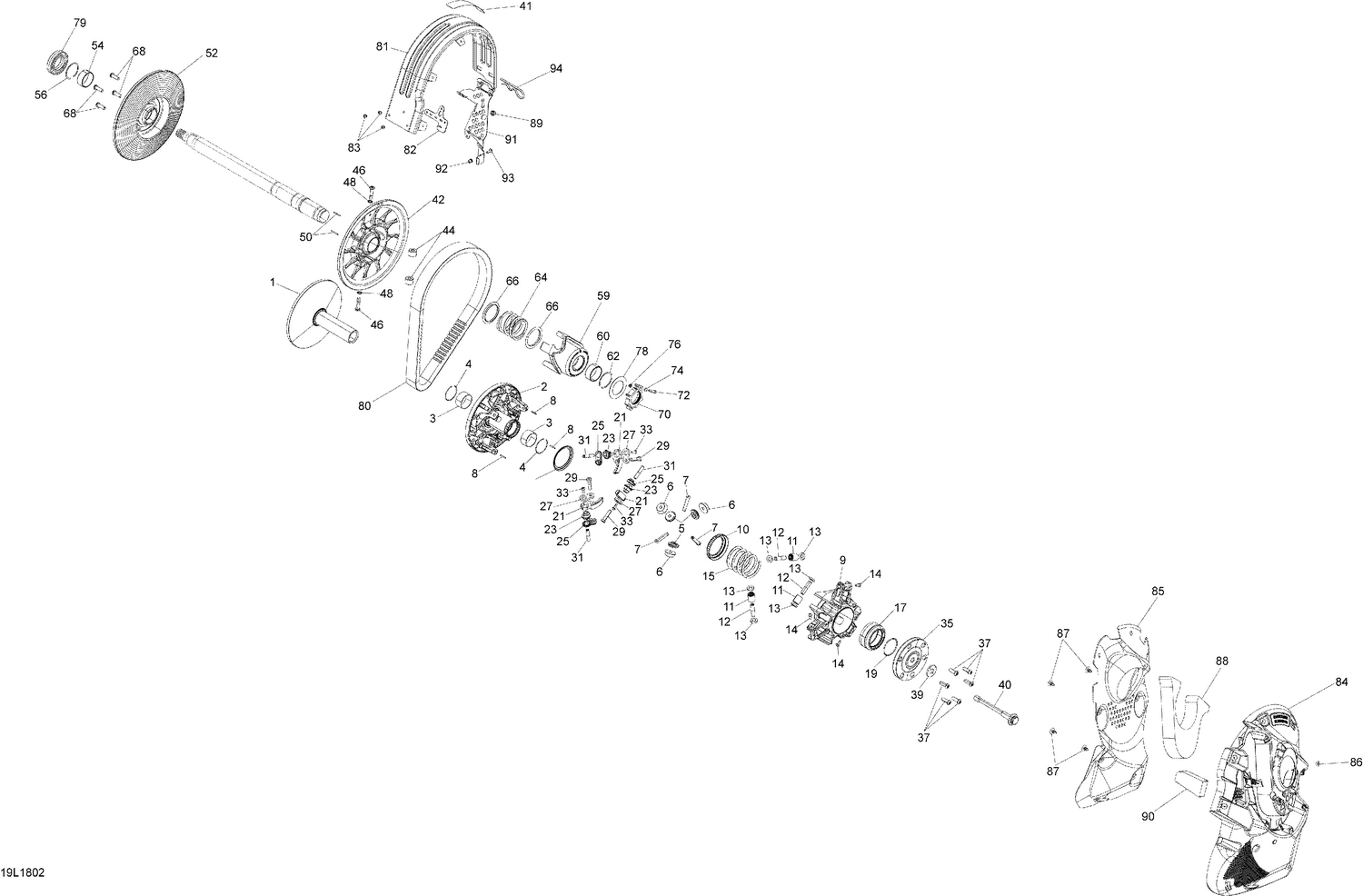

05- Pulley Xtrim - 850 E-TEC
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417224332 | Fixed Flange Ass'y This part replaces 417224278. |
| 2 | 417224610 | Sheave Drive Pulley Sliding Ass'y This part replaces 417224275. |
| 3 | 293250389 | Bushing |
| 4 | 293370137 | Circlip This part replaces 293370117. |
| 5 | 417224153 | Back Torque Roller |
| 6 | 417224916 | Pulley Roller Ext This part replaces 417224034. |
| 7 | 417224277 | Axle - 8mm |
| 8 | 250400101 | Spring Pin 2.6MM X 20.5MM This part replaces 250400074. |
| 9 | 417225067 | Spider Drive Pulley This part replaces 417224019. |
| 10 | 417224002 | Spring Guide |
| 11 | 417224947 | Roller Pulley Ass'y This part replaces 417223808. |
| 12 | 417224204 | Axle - 10mm This part replaces 417223989. |
| 13 | 417224868 | Thrust Washer This part replaces 417224009. |
| 14 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 17 | 417224003 | Seat Spring |
| 19 | 293370116 | Circlip |
| 23 | 417224113 | Molded Cam |
| 25 | 417224086 | RH Lever |
| 27 | 417224114 | LH Lever |
| 29 | 417224221 | Pivot 33mm |
| 31 | 417224694 | Pin Ramp This part replaces 417223631. |
| 33 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 35 | 417224682 | VIbration Damper This part replaces 417223994. |
| 37 | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 39 | 250200144 | Conical Spring Washer M14 |
| 40 | 417300522 | Pulley Drive Bolt M14 X 144 |
| 41 | 516007667 | Warning Decal |
| 42 | 861805529 | Kit Fixed Flange Assembly This part replaces 417127400. |
| 44 | 417127016 | Roller |
| 46 | 417127294 | Pivot Stud |
| 48 | 250200009 | Lock Washer 8 mm |
| 50 | 250400070 | Spring Pin |
| 52 | 417127317 | Sliding Flange Ass'y |
| 54 | 417127318 | Bushing |
| 56 | 293370049 | Spacer (1.91/2.21mm) |
| 60 | 417127318 | Bushing |
| 62 | 293370049 | Spacer (1.91/2.21mm) |
| 66 | 417127116 | Swivel Abutment |
| 68 | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 70 | 415129604 | Pulley Adjuster Ass'y |
| 72 | 250000981 | Socket Screw M5 X 25 |
| 74 | 234051410 | Flat Washer M5 |
| 76 | 232551414 | Elastic Stop Nut M5 |
| 78 | 417127155 | Washer |
| 79 | 504152574 | Ball Bearing |
| 80 | 417300571 | Drive Belt This part replaces 417300531. |
| 81 | 417300620 | Belt Guard This part replaces 417300479. |
| 82 | 417300494 | Bracket |
| 83 | 390909200 | Avex Rivet |
| 84 | 414575600 | Hair Pin |
| 84 | 417300533 | Cvt Air Duct |
| 85 | 417300538 | Acoustic Pannel |
| 86 | 293150103 | Pop Rivet 3/16 |
| 87 | 414644300 | Black, Dart |
| 88 | 417300509 | Foam |
| 89 | 233261494 | Hex. Elastic Flanged Nut M6 |
| 90 | 417300517 | Foam |
| 91 | 417300482 | Belt Guard Bracket |
| 92 | 293450268 | Insert M5 X 0.8 |
| 93 | 250000742 | Torx Screw M5 X 14 |
