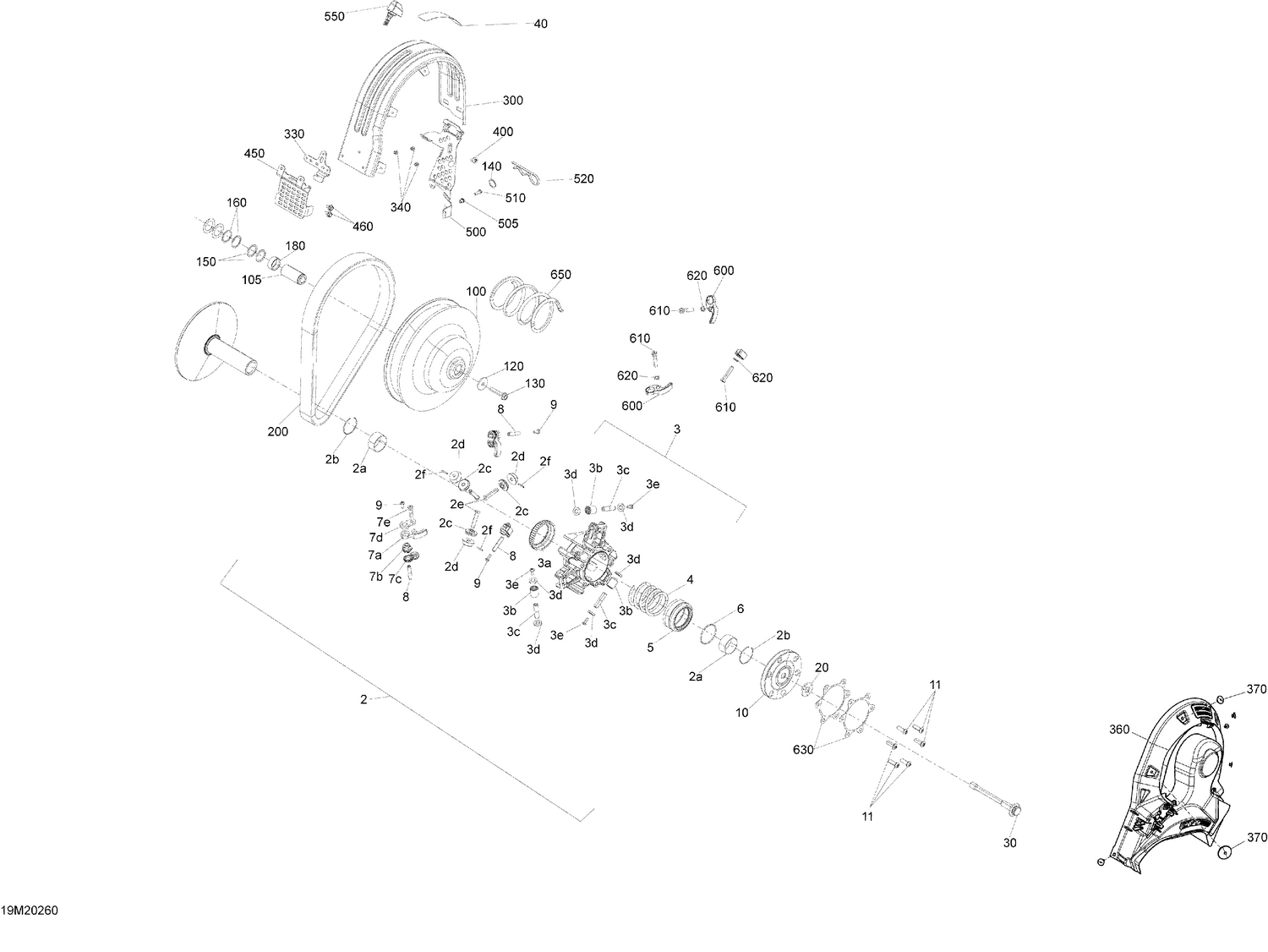

05- Pulley - System - Racing
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 2a | 293250389 | Bushing |
| 2b | 293370137 | Circlip This part replaces 293370117. |
| 2c | 417224909 | Interior Roller Pullet This part replaces 417223991. |
| 2d | 417224916 | Pulley Roller Ext This part replaces 417224458. |
| 2e | 417224277 | Axle - 8mm |
| 2f | 250400101 | Spring Pin 2.6MM X 20.5MM This part replaces 250400074. |
| 3a | 417224571 | Stopper Spring This part replaces 417224151. |
| 3b | 417224947 | Roller Pulley Ass'y This part replaces 417223808. |
| 3c | 417224204 | Axle - 10mm This part replaces 417223989. |
| 3d | 417224868 | Thrust Washer This part replaces 417224009. |
| 3e | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 4 | 417224234 | Clutch Spring |
| 5 | 417224003 | Seat Spring |
| 6 | 293370116 | Circlip |
| 7a | 417224274 | Ramp 974 |
| 7b | 417224113 | Molded Cam |
| 7c | 417224086 | RH Lever |
| 7d | 417224114 | LH Lever |
| 7e | 417224221 | Pivot 33mm |
| 8 | 417224694 | Pin Ramp This part replaces 417223631. |
| 9 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 10 | 417224682 | VIbration Damper This part replaces 417224201. |
| 11 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300522 | Pulley Drive Bolt M14 X 144 |
| 40 | 516007667 | Warning Decal |
| 100 | 417127703 | PULLEY-DRIVEN - Call your local BRP dealership |
| 105 | 417127300 | Bushing |
| 120 | 503183100 | Washer |
| 130 | 207584544 | Hex. Flange Screw M8 X 45, Scotch Grip |
| 140 | 504149100 | Spacer |
| 150 | 417300252 | Spacer |
| 160 | 417300265 | Spacer |
| 180 | 417300399 | Spacer |
| 200 | 417300572 | Drive Belt |
| 300 | 417300620 | Belt Guard This part replaces 417300479. |
| 330 | 417300525 | Front Retaining Hook |
| 340 | 390909200 | Avex Rivet |
| 360 | 417300565 | CVT Air Duct |
| 370 | 293150103 | Pop Rivet 3/16" |
| 400 | 250000767 | Torx Truss Screw M6 X 12 |
| 450 | 417300546 | Support |
| 460 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 500 | 417300482 | Belt Guard Bracket |
| 505 | 233261466 | Hex. Flange Elastic Nut M6 |
| 510 | 250000755 | Torx Screw M6 X 16 |
| 520 | 114045200 | Hair Pin |
| 550 | 417300506 | Stopper |
| 610 | 417224222 | Pivot 38mm |
| 620 | 417224366 | Weight |
| 630 | 417224060 | Spacer |
