8471-616
Screw, Machine Price: $0.71

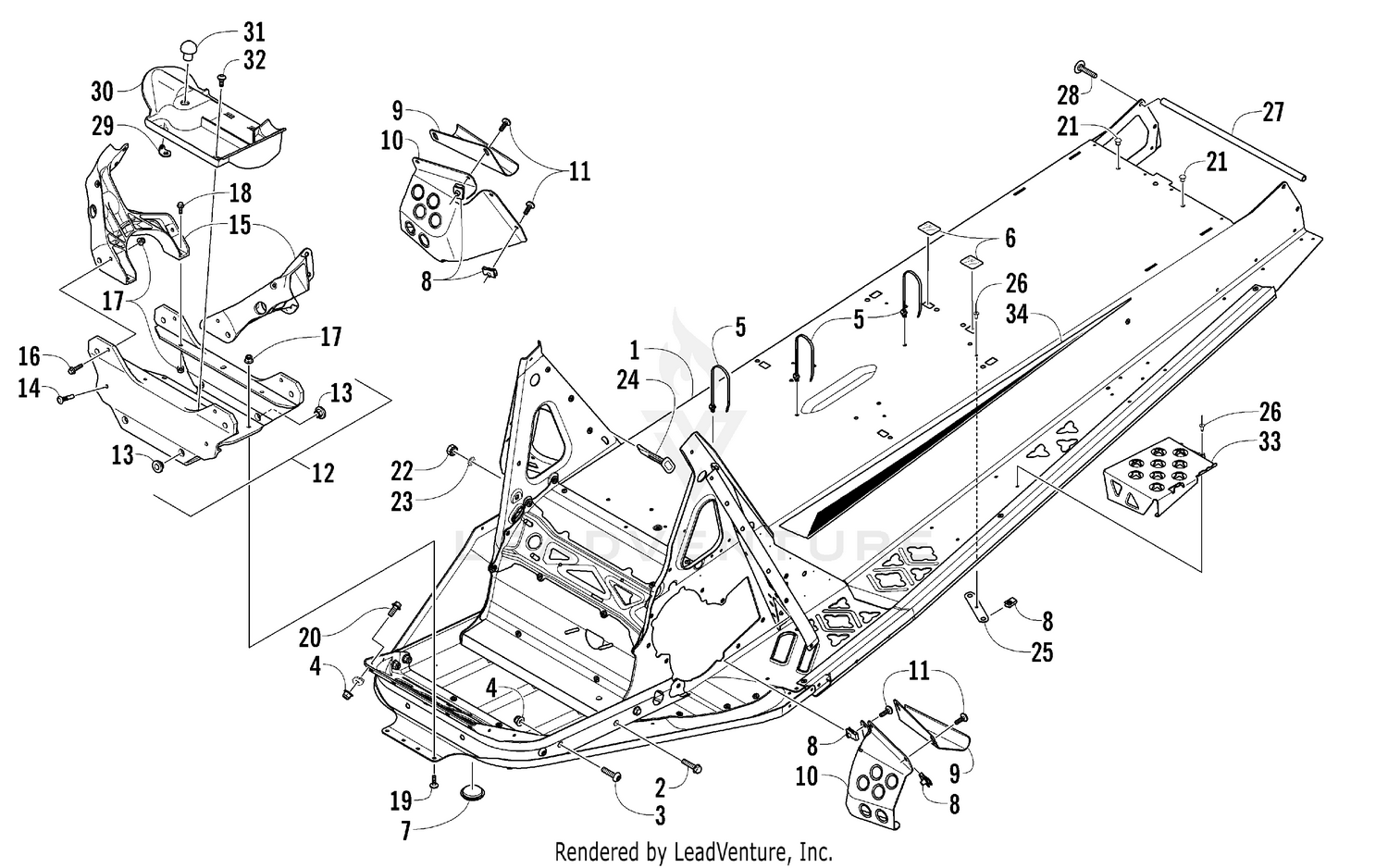

Схема сборки, где используется деталь
Used in (18 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| ARC | CHASSIS ASSEMBLY [97265] | Arctic Cat / SNOWMOBILE / 2013 / 2013 BEARCAT 570 BLUE [S2013BCDFCUSL] / CHASSIS | 11 |
| ARC | CHASSIS ASSEMBLY [97577] | Arctic Cat / SNOWMOBILE / 2013 / 2013 BEARCAT Z1 XT GS ORANGE [S2013BCNWGUSO] / | 13 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [99104] | Arctic Cat / SNOWMOBILE / 2014 / 2014 M 9000 SNO PRO 162 GREEN [S2014M9NSEUSG] / | 14 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [99387] | Arctic Cat / SNOWMOBILE / 2014 / 2014 M 9000 SNO PRO LTD 162 BLACK-WHITE [S2014M | 14 |
| ARC | CHASSIS ASSEMBLY [101629] | Arctic Cat / SNOWMOBILE / 2015 / 2015 BEARCAT 2000 XT ORANGE [S2015BCDWTUSO] / C | 26 |
| ARC | CHASSIS ASSEMBLY [101589] | Arctic Cat / SNOWMOBILE / 2015 / 2015 LYNX 2000 LT BLACK [S2015LXDLTUSB] / CHASS | 11 |
| ARC | CHASSIS ASSEMBLY [103167] | Arctic Cat / SNOWMOBILE / 2016 / 2016 BEARCAT 2000 XT BLUE INTERNATIONAL [S2016B | 26 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [103411] | Arctic Cat / SNOWMOBILE / 2016 / 2016 M 8000 SNO PRO 141 GREEN [S2016M8HSMUSG] / | 20 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [103404] | Arctic Cat / SNOWMOBILE / 2016 / 2016 M 8000 SNO PRO ES 153 GREEN [S2016M8HMPUSG | 20 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [102902] | Arctic Cat / SNOWMOBILE / 2016 / 2016 M 8000 SNO PRO LTD 153 GREEN [S2016M8HPSUS | 20 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [106176] | Arctic Cat / SNOWMOBILE / 2016 / 2016 M 9000 SNO PRO 162 GREEN [S2016M9NSEUSG] / | 17 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [104457] | Arctic Cat / SNOWMOBILE / 2017 / 2017 M 6000 SNO PRO 153 GREEN [S2017M6DSPUSG] / | 20 |
| ARC | FRONT FRAME ASSEMBLY [106241] | Arctic Cat / SNOWMOBILE / 2018 / 2018 ZR 6000 R SX GREEN INTERNATIONAL [S2018ACD | 14 |
| ARC | CHASSIS ASSEMBLY [108956] | Arctic Cat / SNOWMOBILE / 2021 / 2021 BLAST 4000 M LTD RED NE [S2021JABA1NER] / | 13 |
| ARC | CHASSIS ASSEMBLY [109253] | Arctic Cat / SNOWMOBILE / 2022 / 2022 BLAST 4000 ZR GREEN INTERNATIONAL SK [S202 | 13 |
| ARC | CHASSIS ASSEMBLY [109028] | Arctic Cat / SNOWMOBILE / 2022 / 2022 BLAST 4000 ZR GREEN SK EARLY BUILD [S2022J | 13 |
| ARC | FRONT FRAME ASSEMBLY [108976] | Arctic Cat / SNOWMOBILE / 2024 / 2024 ZR 6000 136 R SX GREEN [S2024ACDPRUSG] / F | 14 |
| ARC | CHASSIS ASSEMBLY [109921] | Arctic Cat / SNOWMOBILE / 2026 / 2026 M 400 Purple [S2026JABA2USP] / CHASSIS ASS | 13 |
