0423-538
Screw, Self-Tapping Price: $0.71

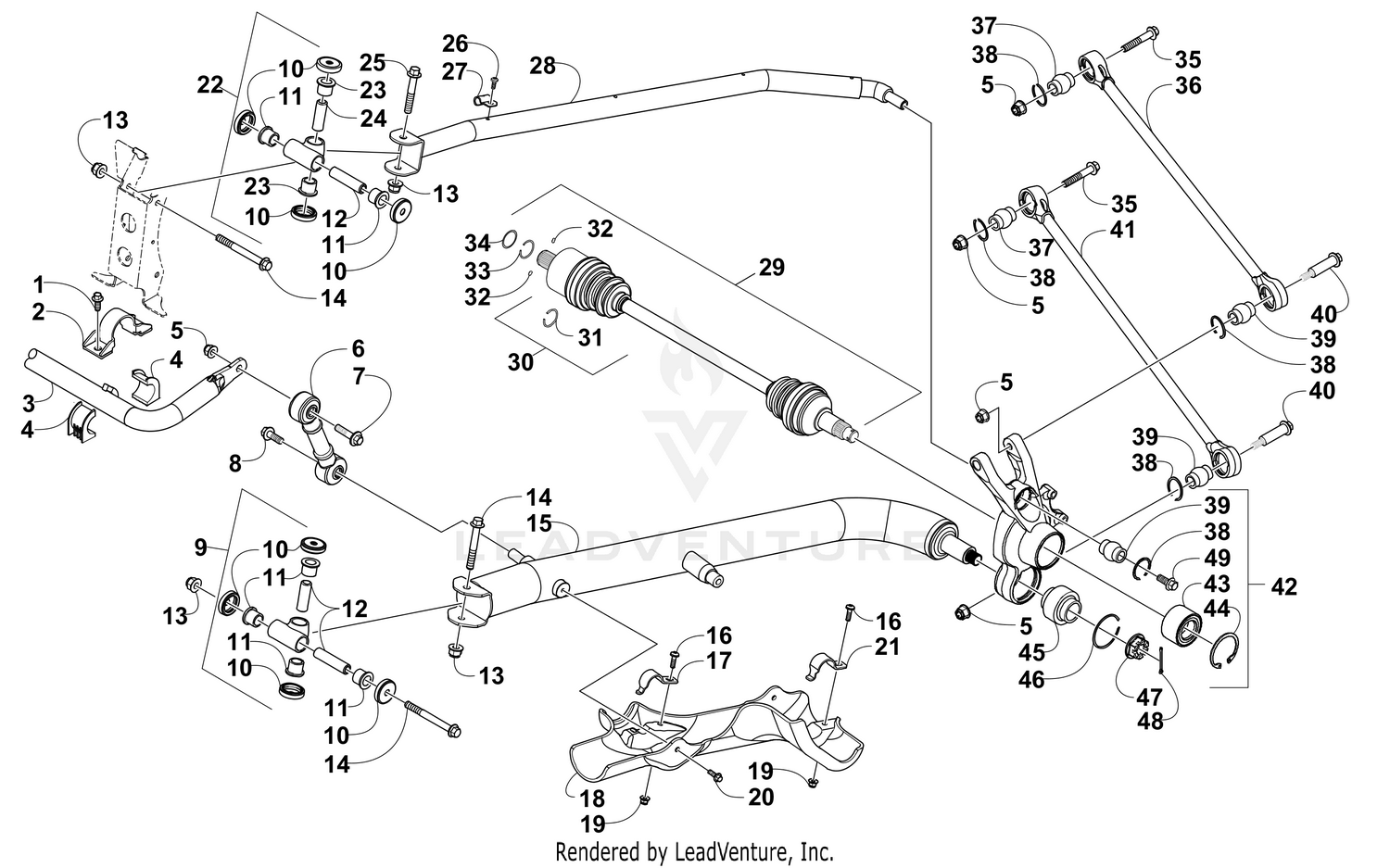

Схема сборки, где используется деталь
Used in (40 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| ARC | REAR SUSPENSION ASSEMBLY [98572] | Arctic Cat / ROV / 2013 / 2013 WILDCAT 1000 LTD LATE BUILD INTERNATIONAL WHITE [ | 20 |
| ARC | SEAT ASSEMBLY [301530] | Arctic Cat / ROV / 2017 / 2017 HDX 700 CREW XT RED [U2017RDT1PUSM] / SEAT ASSEMB | 22 |
| ARC | HYDRAULIC BRAKE ASSEMBLY [SER. # 300906 AND BELOW] [305532] | Arctic Cat / ROV / 2023 / 2023 PROWLER PRO XT EPS 50 PHANTOM GRAY [U2023M2V2PCAU | 13 |
| ARC | HYDRAULIC BRAKE ASSEMBLY [SER. # 300907 AND ABOVE] [305533] | Arctic Cat / ROV / 2023 / 2023 PROWLER PRO XT EPS 50 PHANTOM GRAY [U2023M2V2PCAU | 13 |
| ARC | HYDRAULIC BRAKE ASSEMBLY [305816] | Arctic Cat / ROV / 2024 / 2024 CUSHMAN HAULER 4X4 CREW EPS (DIESEL) (UR) DYNAMIC | 13 |
| ARC | STEERING AND SHIFT ASSEMBLY [305808] | Arctic Cat / ROV / 2024 / 2024 CUSHMAN HAULER 4X4 CREW EPS (DIESEL) (UR) DYNAMIC | 53 |
| ARC | STEERING AND SHIFT ASSEMBLY [305739] | Arctic Cat / ROV / 2024 / 2024 PROWLER PRO CREW LTD OS 49 FOSSIL [U2024AGV2POSK] | 53 |
| ARC | HYDRAULIC BRAKE ASSEMBLY [304480] | Arctic Cat / ROV / 2024 / 2024 PROWLER PRO CREW XT EPS 49 PHANTOM GRAY [U2024AFV | 13 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [96683] | Arctic Cat / SNOWMOBILE / 2013 / 2013 F 1100 SNO PRO GREEN [S2013F1NEPUSG] / FRO | 4 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [96820] | Arctic Cat / SNOWMOBILE / 2013 / 2013 XF 1100 TURBO SNO PRO HIGH COUNTRY LTD INT | 15 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [99104] | Arctic Cat / SNOWMOBILE / 2014 / 2014 M 9000 SNO PRO 162 GREEN [S2014M9NSEUSG] / | 4 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [99387] | Arctic Cat / SNOWMOBILE / 2014 / 2014 M 9000 SNO PRO LTD 162 BLACK-WHITE [S2014M | 4 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [99090] | Arctic Cat / SNOWMOBILE / 2014 / 2014 M 9000 SNO PRO LTD 162 ORANGE-BLACK [S2014 | 15 |
| ARC | GEARCASE ASSEMBLY [99317] | Arctic Cat / SNOWMOBILE / 2014 / 2014 TZ1 LXR BLACK [S2014TZNLXUSB] / GEARCASE A | 34 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [99549] | Arctic Cat / SNOWMOBILE / 2014 / 2014 XF 7000 141 CROSS-TOUR ORANGE [S2014X7UCTU | 4 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [101291] | Arctic Cat / SNOWMOBILE / 2015 / 2015 XF 7000 LXR 137 GREEN [S2015XFULXUSG] / FR | 4 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [102119] | Arctic Cat / SNOWMOBILE / 2015 / 2015 XF 9000 SNO PRO 137 ORANGE [S2015XFNSPUSO] | 4 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [103288] | Arctic Cat / SNOWMOBILE / 2016 / 2016 M 8000 SE 153 GREEN INTERNATIONAL [S2016M8 | 23 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [103411] | Arctic Cat / SNOWMOBILE / 2016 / 2016 M 8000 SNO PRO 141 GREEN [S2016M8HSMUSG] / | 5 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [103404] | Arctic Cat / SNOWMOBILE / 2016 / 2016 M 8000 SNO PRO ES 153 GREEN [S2016M8HMPUSG | 5 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [102902] | Arctic Cat / SNOWMOBILE / 2016 / 2016 M 8000 SNO PRO LTD 153 GREEN [S2016M8HPSUS | 5 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [106176] | Arctic Cat / SNOWMOBILE / 2016 / 2016 M 9000 SNO PRO 162 GREEN [S2016M9NSEUSG] / | 4 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [103685] | Arctic Cat / SNOWMOBILE / 2016 / 2016 M 9000 SNO PRO 162 ORANGE [S2016M9NSEUSO] | 23 |
| ARC | SLIDE RAIL AND TRACK ASSEMBLY [103354] | Arctic Cat / SNOWMOBILE / 2016 / 2016 M 9000 SNO PRO LTD 162 GREEN [S2016M9NLEUS | 23 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [102667] | Arctic Cat / SNOWMOBILE / 2016 / 2016 PANTERA 7000 LTD BLACK EARLY BUILD [S2016P | 4 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [103316] | Arctic Cat / SNOWMOBILE / 2016 / 2016 XF 7000 CROSSTREK ORANGE [S2016ZXUCTUSO] / | 4 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [103646] | Arctic Cat / SNOWMOBILE / 2016 / 2016 XF 8000 HIGH COUNTRY LTD ES 141 BLACK INTE | 5 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [106218] | Arctic Cat / SNOWMOBILE / 2016 / 2016 ZR 5000 LXR ORANGE [S2016ZRNLXUSO] / FRONT | 5 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [104457] | Arctic Cat / SNOWMOBILE / 2017 / 2017 M 6000 SNO PRO 153 GREEN [S2017M6DSPUSG] / | 5 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [104497] | Arctic Cat / SNOWMOBILE / 2017 / 2017 ZR 3000 LXR 129 BLACK [S2017ZRTLXUSB] / FR | 4 |
| ARC | FRONT FRAME ASSEMBLY [106136] | Arctic Cat / SNOWMOBILE / 2018 / 2018 XF 6000 HIGH COUNTRY ES 141 ORANGE INTERNA | 5 |
| ARC | FRONT FRAME ASSEMBLY [106307] | Arctic Cat / SNOWMOBILE / 2018 / 2018 ZR 3000 129 GREEN [S2018ZRTLXUSG] / FRONT | 4 |
| ARC | FRONT FRAME ASSEMBLY [106241] | Arctic Cat / SNOWMOBILE / 2018 / 2018 ZR 6000 R SX GREEN INTERNATIONAL [S2018ACD | 3 |
| ARC | TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [106242] | Arctic Cat / SNOWMOBILE / 2018 / 2018 ZR 6000 R SX GREEN INTERNATIONAL [S2018ACD | 20 |
| ARC | CHASSIS ASSEMBLY [108956] | Arctic Cat / SNOWMOBILE / 2021 / 2021 BLAST 4000 M LTD RED NE [S2021JABA1NER] / | 3 |
| ARC | CHASSIS ASSEMBLY [109253] | Arctic Cat / SNOWMOBILE / 2022 / 2022 BLAST 4000 ZR GREEN INTERNATIONAL SK [S202 | 3 |
| ARC | CHASSIS ASSEMBLY [109028] | Arctic Cat / SNOWMOBILE / 2022 / 2022 BLAST 4000 ZR GREEN SK EARLY BUILD [S2022J | 3 |
| ARC | TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [108977] | Arctic Cat / SNOWMOBILE / 2022 / 2022 ZR 6000 R SX GREEN [S2022ACDPRUSG] / TUNNE | 20 |
| ARC | FRONT FRAME ASSEMBLY [108976] | Arctic Cat / SNOWMOBILE / 2024 / 2024 ZR 6000 136 R SX GREEN [S2024ACDPRUSG] / F | 3 |
| ARC | CHASSIS ASSEMBLY [109921] | Arctic Cat / SNOWMOBILE / 2026 / 2026 M 400 Purple [S2026JABA2USP] / CHASSIS ASS | 3 |
