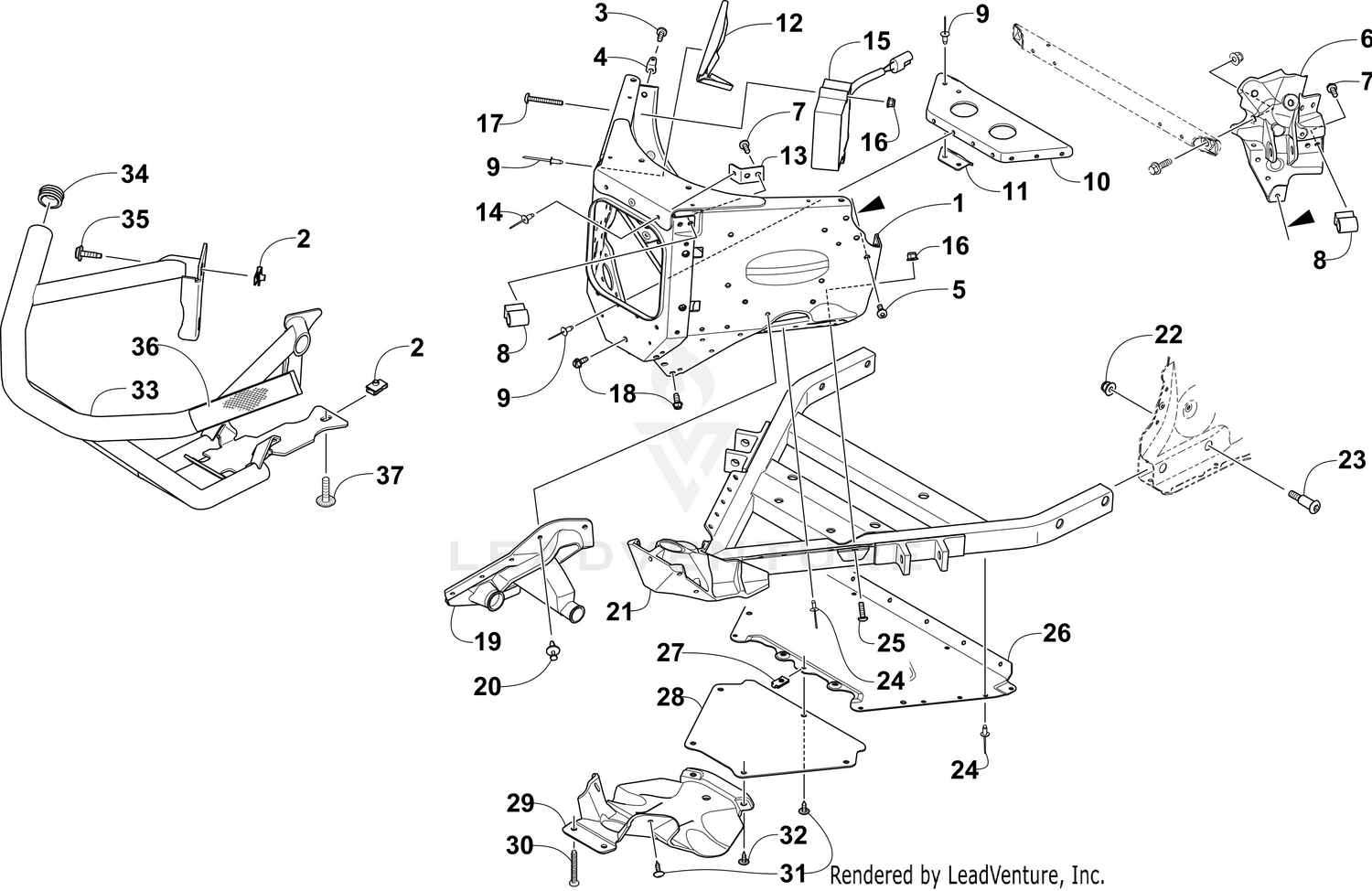

FRONT BUMPER AND FRAME ASSEMBLY [103646]

Parts (38)

Ref	Part Number	Description
2	0423-577	Clip, U-Nut Price: $0.46
3	1623-683	Screw, Self-Tapping Price: $1.32
4	2612-707	Tab, Spring Price: $3.21
5	0423-538	Screw, Self-Tapping Price: $0.71
6	2707-304	Bracket, Shock Mount - Upper Right - Black Price: $113.95
6	2707-305	Bracket, Shock Mount - Upper Left - Black Price: $113.95
7	8413-617	Screw, Cap Price: $1.32
8	1607-233	Bracket, Mounting - Upper A-Arm Price: $16.92
9	8060-706	Rivet Price: $0.46
10	1607-565	Bracket, Reinforcement Price: $104.95
11	1607-566	Brace, Steering Post Price: $3.88
12	0607-991	Bracket, Steering Stop Price: $18.13
13	1607-561	Gusset, A-Arm Mounting Bracket Price: $1.92
14	1623-241	Rivet Price: $2.05
15	0630-322	Regulator, Voltage Price: $226.95
16	8427-602	Nut, Hex Price: $0.23
17	8477-650	SCREW,MACH-TSTRH M6X1.0X50 Z&BLK Price: $1.80
18	1623-959	Screw, Self-Tapping Price: $0.35
19	1605-028	Boot, Steering - Right Price: $36.95
19	1605-029	Boot, Steering - Left Price: $36.95
20	0623-362	Rivet, Reinstallable Price: $0.71
21	1707-865	Frame, Front - Lower - Black Price: $359.95
22	8427-802	Nut, Lock Price: $0.58
23	1623-817	Screw, Shoulder Price: $2.05
24	8060-686	Rivet - Zinc Price: $0.46
25	8468-620	Screw, Machine Price: $0.71
26	0607-983	Belly Pan - Center Price: $113.95
27	1623-052	Clip, U-Nut Price: $1.08
28	1607-063	Panel, Access Price: $13.28
29	6606-614	Belly Pan - Front Price: $21.77
30	1623-929	Screw, Self-Tapping Price: $1.45
31	1623-129	Screw, Self-Tapping Price: $0.29
32	0623-784	Screw, Self-Tapping Price: $0.09
33	2707-234	Bumper, Front - Assembly - Black Price: $240.95
34	2623-087	Plug Price: $2.30
35	0423-609	Screw, Machine Not Available Price:
36	2621-210	Decal, Reflector - Amber Price: $13.28
37	1623-031	SCREW,SELF TAP-TSTRH #10-12X1.00 Price: $1.99
