Parts Catalog

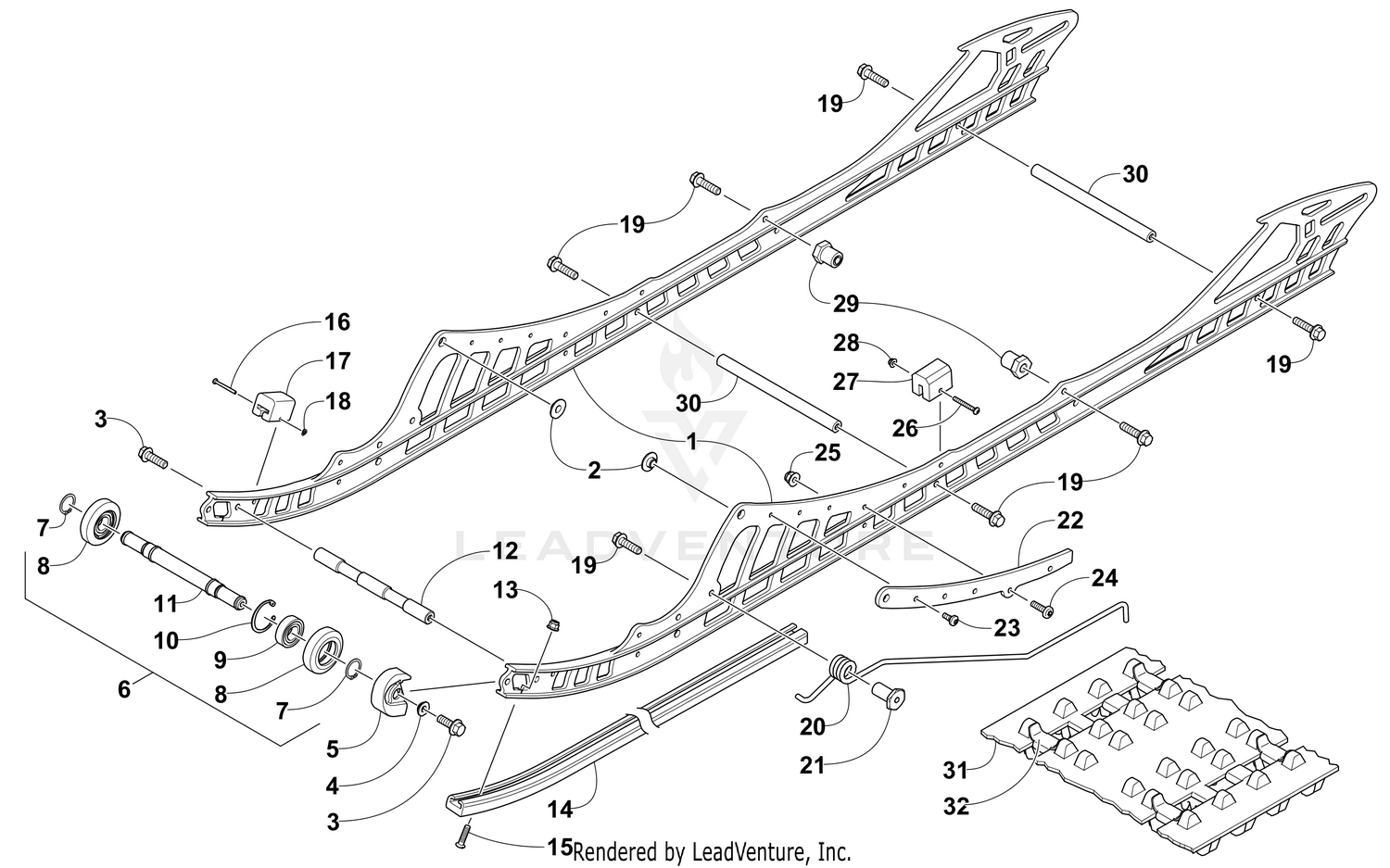

SLIDE RAIL AND TRACK ASSEMBLY [103354]

Parts (29)

Ref	Part Number	Description
1	2704-651	Rail, Formed - Black Price: $306.95
2	3604-266	Insert, Rail Price: $3.51
3	8408-831	Screw, Cap Price: $1.08
4	3604-928	Spacer Price: $7.23
5	2704-975	End Cap, Slide Rail Price: $6.95
7	1423-001	Ring, Retaining Price: $1.20
9	3604-033	Bearing Price: $13.95
10	0623-946	Ring, Retaining Price: $2.26
11	3604-921	Axle Price: $69.95
12	3604-630	Axle Price: $77.95
13	8047-366	Nut, Lock Price: $0.46
14	3604-716	Wearstrip, Slide Rail Price: $37.95
15	0123-859	Screw, Machine Price: $1.18
16	0123-767	Rivet, Solid Price: $1.07
17	0104-631	Pad, Shock Price: $7.08
18	0123-766	Nut, Push Price: $1.32
19	8408-826	Screw, Cap Price: $0.46
20	1704-734	Scratcher, Ice - Right Price: $46.95
20	1704-735	Scratcher, Ice - Left Price: $46.95
21	3604-678	Bushing Price: $18.13
22	2704-654	Brace, Rail - Black Price: $50.95
23	0423-538	Screw, Self-Tapping Price: $0.71
24	8468-625	Screw, Machine Price: $0.71
25	8427-602	Nut, Hex Price: $0.23
26	8470-540	Screw, Machine Price: $1.45
27	1604-429	Pad, Shock Price: $7.23
28	8427-502	Nut, Lock Price: $1.07
29	3604-635	Bushing, Stop Price: $5.94
30	3604-667	Axle Price: $40.95
