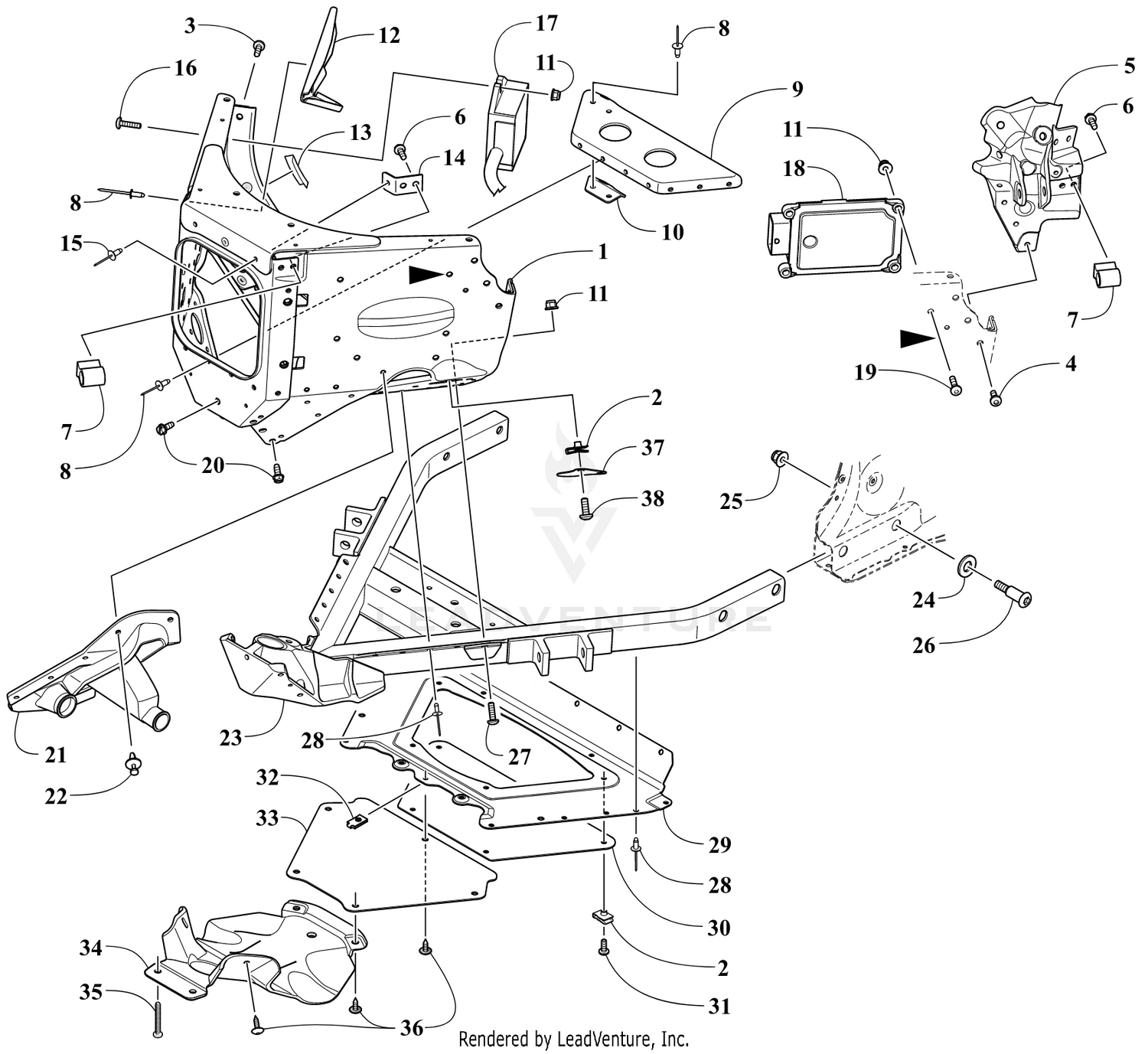

FRONT FRAME ASSEMBLY [106307]

Parts (38)

Ref	Part Number	Description
2	0423-577	Clip, U-Nut Price: $0.46
3	1623-683	Screw, Self-Tapping Price: $1.32
4	0423-538	Screw, Self-Tapping Price: $0.71
5	1707-776	Bracket, Shock Mount - Upper Right - Black Price: $114.95
5	1707-777	Bracket, Shock Mount - Upper Left - Black Price: $109.95
6	8413-617	Screw, Cap Price: $1.32
7	1607-233	Bracket, Mounting - Upper A-Arm Price: $16.92
8	8060-706	Rivet Price: $0.46
9	1607-565	Bracket, Reinforcement Price: $104.95
10	1607-566	Brace, Steering Post Price: $3.88
11	8427-602	Nut, Hex Price: $0.23
12	0607-991	Bracket, Steering Stop Price: $18.13
13	0706-371	Trim Price: $23.76
14	1607-561	Gusset, A-Arm Mounting Bracket Price: $1.92
15	1623-241	Rivet Price: $2.05
16	8477-620	Screw, Machine Price: $0.58
17	0630-255	Regulator, Voltage Price: $193.95
18	0730-304	ECM Price: $797.95
19	8468-625	Screw, Machine Price: $0.71
20	1623-959	Screw, Self-Tapping Price: $0.35
21	1605-028	Boot, Steering - Right Price: $36.95
21	1605-029	Boot, Steering - Left Price: $36.95
22	0623-362	Rivet, Reinstallable Price: $0.71
23	3707-132	Frame, Front - Lower Price: $465.95
24	8050-217	Washer, Flat Price: $0.24
25	8427-802	Nut, Lock Price: $0.58
26	1623-817	Screw, Shoulder Price: $2.05
27	8468-620	Screw, Machine Price: $0.71
28	8060-686	Rivet - Zinc Price: $0.46
29	1607-217	Belly Pan - Center Price: $142.95
30	1607-218	Cover, Access Price: $15.71
31	8468-617	Screw, Machine Not Available Price:
32	1623-052	Clip, U-Nut Price: $1.08
33	1607-063	Panel, Access Price: $13.28
34	6606-614	Belly Pan - Front Price: $21.77
35	1623-929	Screw, Self-Tapping Price: $1.45
36	2623-166	Screw, Self-Tapping Price: $1.66
37	1707-568	Panel, Close-Off Price: $6.06
