07001640
BOLT,.38-16 X 4.25-.62 DIA EYE Price: $15.45

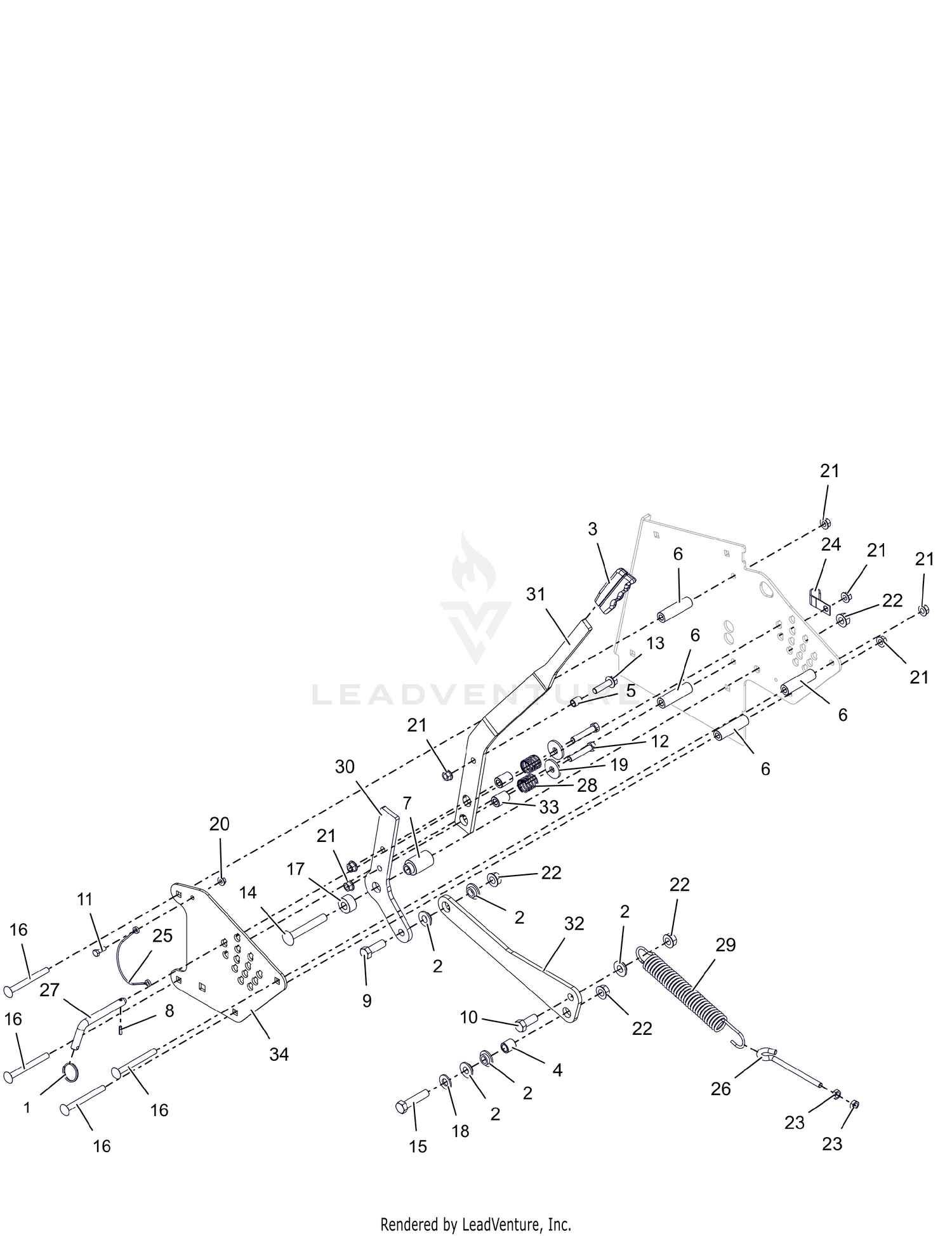

Схема сборки, где используется деталь
Used in (43 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| ARN | Height of Cut - 48" - 52" | Ariens / Stand-On Mowers / Ridgeline / 994167 (200000 - ) Ridgeline 48" FS 651V | 26 |
| ARN | Transaxle Drive | Ariens / Zero-Turn Lawn Mowers / Ikon / 915220 (075000 - 079999) Ikon-X 42 / Tra | 18 |
| ARN | Transaxle Drive | Ariens / Zero-Turn Lawn Mowers / Ikon / 915220 (080000 - ) Ikon-X 42 / Transaxle | 18 |
| ARN | Transaxle Drive | Ariens / Zero-Turn Lawn Mowers / Ikon / 915226 (035000 - 044999) Ikon XL 42 / Tr | 16 |
| ARN | Transaxle Drive | Ariens / Zero-Turn Lawn Mowers / Ikon / 915226 (075000 - 079999) Ikon-XL 42 / Tr | 16 |
| ARN | Transaxle Dirve | Ariens / Zero-Turn Lawn Mowers / Ikon / 915226 (080000 - ) Ikon XL 42 / Transaxl | 16 |
| ARN | Transaxle Drive | Ariens / Zero-Turn Lawn Mowers / Ikon / 915265 (000101 - 002499) Ikon-XD 42 / T | 18 |
| ARN | Transaxle Drive | Ariens / Zero-Turn Lawn Mowers / Ikon / 915265 (002500 - 029999) Ikon-XD 42 / Tr | 18 |
| ARN | Transaxle Drive | Ariens / Zero-Turn Lawn Mowers / Ikon / 915279 (000101 - ) Ikon Limited Edition | 17 |
| ARN | Transaxle Drive | Ariens / Zero-Turn Lawn Mowers / Ikon / 915331 (045000 - 074999) Ikon X 42 CE / | 18 |
| ARN | Transaxle Drive | Ariens / Zero-Turn Lawn Mowers / Ikon / 915331 (075000 - 079999) Ikon-X 42 CE / | 18 |
| ARN | Transaxle Drive | Ariens / Zero-Turn Lawn Mowers / Ikon / 915331 (080000 - ) Ikon-X 42 CE / Transa | 18 |
| ARN | Transaxle Drive | Ariens / Zero-Turn Lawn Mowers / Ikon / 915335 (A03759565 - ) Ikon XD 52 CE / Tr | 18 |
| ARN | Transaxle Drive | Ariens / Zero-Turn Lawn Mowers / Ikon / 915340 - (A0396329 - ) Ikon- XD 42 CE / | 18 |
| GRV | Deck Lift - Left Hand | Gravely / Gravely Zero Turn / Pro-Turn / 991200 (030000 - 039999) Pro-Turn 48" / | 20 |
| GRV | Deck Lift - Right Hand | Gravely / Gravely Zero Turn / Pro-Turn / 991200 (030000 - 039999) Pro-Turn 48" / | 34 |
| GRV | Deck Lift - Left Hand | Gravely / Gravely Zero Turn / Pro-Turn / 991200 (040000 - ) Pro-Turn 48" / Deck | 20 |
| GRV | Deck Lift - Right Hand | Gravely / Gravely Zero Turn / Pro-Turn / 991200 (040000 - ) Pro-Turn 48" / Deck | 34 |
| GRV | Deck Lift - Left Hand | Gravely / Gravely Zero Turn / Pro-Turn / 991209 (050000 - ) Pro-Turn 48" / Deck | 20 |
| GRV | Deck Lift - Right Hand | Gravely / Gravely Zero Turn / Pro-Turn / 991209 (050000 - ) Pro-Turn 48" / Deck | 34 |
| GRV | Deck Lift - Right Hand | Gravely / Gravely Zero Turn / Pro-Turn / 991215 (000101 - 009999) Pro-Turn 48" / | 16 |
| GRV | Deck Lift - Left Hand | Gravely / Gravely Zero Turn / Pro-Turn / 991306 (030000 - ) Pro-Turn 48" CE / De | 21 |
| GRV | Deck Lift - Right Hand | Gravely / Gravely Zero Turn / Pro-Turn / 991306 (030000 - ) Pro-Turn 48" CE / De | 35 |
| GRV | Mechanical Deck Lift - Left Hand | Gravely / Gravely Zero Turn / Pro-Turn 100 / 991079 (030000 - 039999) Pro-Turn 1 | 15 |
| GRV | Mechanical Deck Lift - Right Hand | Gravely / Gravely Zero Turn / Pro-Turn 100 / 991079 (030000 - 039999) Pro-Turn 1 | 29 |
| GRV | Mechanical Deck Lift - Left Hand | Gravely / Gravely Zero Turn / Pro-Turn 100 / 991079 (040000 - 040999) Pro-Turn 1 | 15 |
| GRV | Mechanical Deck Lift - Right Hand | Gravely / Gravely Zero Turn / Pro-Turn 100 / 991079 (040000 - 040999) Pro-Turn 1 | 28 |
| GRV | Mechanical Deck Lift - Left Hand | Gravely / Gravely Zero Turn / Pro-Turn 100 / 991079 (041000 - 999999) Pro-Turn 1 | 15 |
| GRV | Mechanical Deck Lift - Right Hand | Gravely / Gravely Zero Turn / Pro-Turn 100 / 991079 (041000 - 999999) Pro-Turn 1 | 28 |
| GRV | Mechanical Deck Lift - Left Hand | Gravely / Gravely Zero Turn / Pro-Turn 100 / 991119 (050000 - ) Pro-Turn 148 / M | 15 |
| GRV | Mechanical Deck Lift - Right Hand | Gravely / Gravely Zero Turn / Pro-Turn 100 / 991119 (050000 - ) Pro-Turn 148 / M | 28 |
| GRV | Mechanical Deck Lift - Left Hand | Gravely / Gravely Zero Turn / Pro-Turn 100 / 991128 (000101 - 009999) Pro-Turn 1 | 9 |
| GRV | Mechanical Deck Lift - Right Hand | Gravely / Gravely Zero Turn / Pro-Turn 100 / 991128 (000101 - 009999) Pro-Turn 1 | 16 |
| GRV | Deck Lift - Left Hand | Gravely / Gravely Zero Turn / Pro-Turn 100 / 991300 (030000 - ) Pro-Turn 148 CE | 15 |
| GRV | Deck Lift - Right Hand - SN 030000 - 039999 | Gravely / Gravely Zero Turn / Pro-Turn 100 / 991300 (030000 - ) Pro-Turn 148 CE | 29 |
| GRV | Deck Lift - Right Hand - SN 040000 And Up | Gravely / Gravely Zero Turn / Pro-Turn 100 / 991300 (030000 - ) Pro-Turn 148 CE | 29 |
| GRV | Transaxle Drive | Gravely / Gravely Zero Turn / ZT X / 915172 (000101 - 015999) ZTX 42 / Transaxle | 21 |
| GRV | Transaxle Drive | Gravely / Gravely Zero Turn / ZT X / 915172 (020000 - 029999) ZTX 42 / Transaxle | 17 |
| GRV | Transaxle Drive | Gravely / Gravely Zero Turn / ZT X / 915174 (016000 - 019999) ZTX 52 / Transaxle | 19 |
| GRV | Transaxle Drive | Gravely / Gravely Zero Turn / ZT XL / 915200 (000101 - 019999) ZT XL 52 / Transa | 9 |
| GRV | Transaxle Drive | Gravely / Gravely Zero Turn / ZT XL / 915200 (020000 - 029999) ZT XL 52 / Transa | 17 |
| GRV | Deck - Idlers And Sheaves | Gravely / Stand-on Lawn Mowers / Pro-Stance (Fixed Deck) / 994121 (041000 - ) Pr | 6 |
| GRV | Deck - Idlers And Sheaves | Gravely / Stand-on Lawn Mowers / Pro-Stance (Fixed Deck) / 994122 (040000 - 0409 | 6 |
