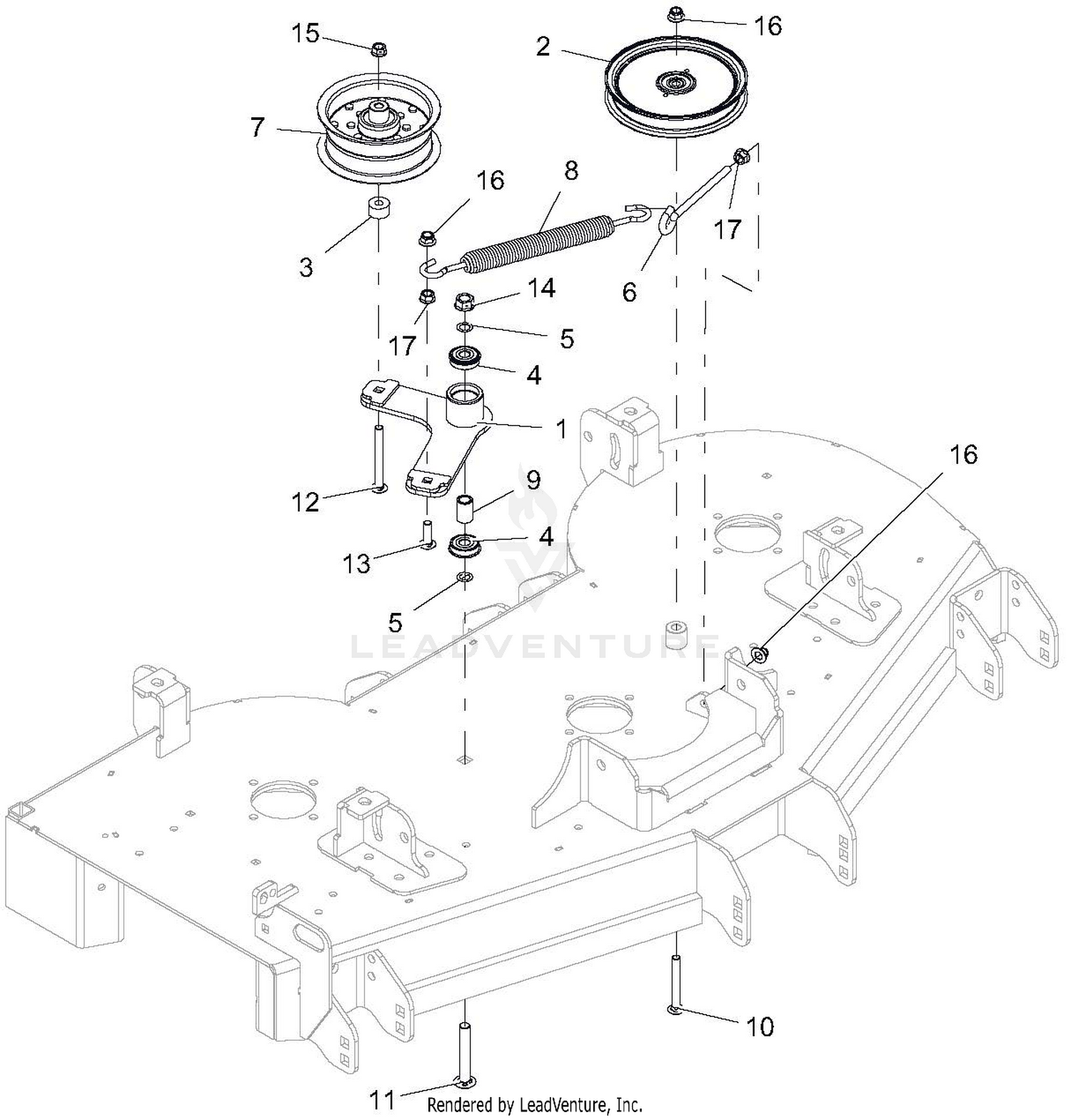

| Ref | Part Number | Description |
|---|
| 1 |
04766051 |
WLDMT, DECK IDLER ARM Price: $63.45 |
| 2 |
07343300 |
IDLER, FLAT-6.00" X .75" Price: $72.45 |
| 3 |
03035100 |
SPACER .390X1.000X.562 Price: $8.45 |
| 4 |
05480000 |
BRG-BALL .50X1.38X.438 SEALED Price: $13.95 |
| 5 |
06400015 |
WASHER, .500X.750X.020 THRUST Price: $0.95 |
| 6 |
07001640 |
BOLT,.38-16 X 4.25-.62 DIA EYE Price: $15.45 |
| 7 |
07300532 |
PULLEY, FLAT 5.00X2.36X.375 Price: $67.95 |
| 8 |
08300505 |
SPRING, EXTENSION Price: $23.95 |
| 9 |
09357700 |
SPACER .510 X .867 X 1.1485 Price: $4.45 |
| 10 |
06200418 |
BLT, RHSN .38-16X3.00 G5 ZCC This part replaces 06228100. Price: $3.95 |
| 11 |
06200339 |
BTL,RHSSN .500-13 X 3.25 G5 ZCC This part replaces 06200216. Price: $3.45 |
| 12 |
06200238 |
BLT,RHSSN .38-16X3.50 G5 ZCC This part replaces 06200125. Price: $3.45 |
| 13 |
06200236 |
BLT,RHSSN .38-16X1.25 G5 ZCC This part replaces 06222200. Price: $2.45 |
| 14 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC This part replaces 06530008. Price: $0.95 |
| 15 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC This part replaces 06534800. Price: $0.95 |
| 16 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
