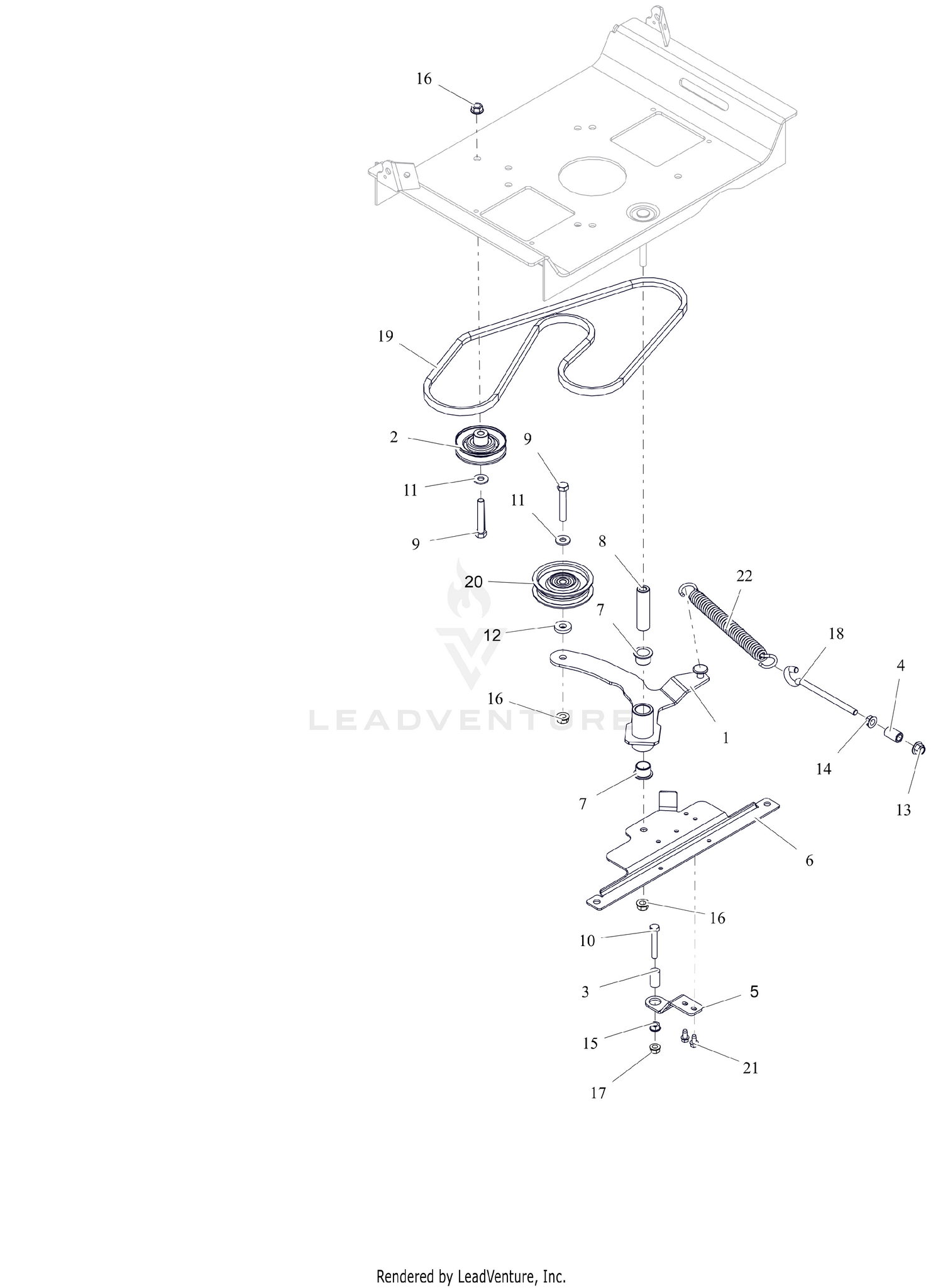

| Ref | Part Number | Description |
|---|
| 1 |
04890451 |
WLDMT,GRD DRIVE IDLER ARM-LGR Price: $52.95 |
| 2 |
07347200 |
IDLER, V-3.000 OD Price: $27.95 |
| 3 |
03980200 |
SPACER, RUBBER 5/16 IDX1.0 LG Price: $2.45 |
| 4 |
04193500 |
SPACER, .375X.625X.970 (PM) Price: $0.95 |
| 5 |
04879351 |
BRKT, CLUTCH STOP (XL) Price: $17.45 |
| 6 |
05240851 |
BRKT-IDLER ATTACHMENT Price: $15.45 |
| 7 |
05500039 |
BSHG-FLG 0.75X0.875X.625X1.125 Price: $6.95 |
| 8 |
05501237 |
BUSHING, SLEEVE .38X.750X2.78 Price: $15.45 |
| 9 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC Price: $3.95 |
| 10 |
05901805 |
BLT, HEX .31-18X2.00 G5 ZCC Price: $1.45 |
| 11 |
06401023 |
WSHR,FLT .375X.875X.083 ZCC Price: $1.45 |
| 12 |
06401108 |
WSHR, FLT .406X1.00X.188 ZCC Price: $2.45 |
| 13 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC Price: $1.45 |
| 14 |
06500735 |
NUT, SPNLK-FLG .38-16 G5 ZCC Price: $1.45 |
| 15 |
06500815 |
NUT,SPNLK-FLG .31-18 G5 ZCC Price: $1.45 |
| 16 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 Price: $0.95 |
| 17 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC Price: $0.95 |
| 18 |
07001640 |
BOLT,.38-16 X 4.25-.62 DIA EYE Price: $15.45 |
| 19 |
07200718 |
V-BELT, A-RAW EDGE Price: $46.95 |
| 20 |
07349900 |
SHEAVE, IDLER -V .38 x 4.00 Price: $14.45 |
| 21 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
