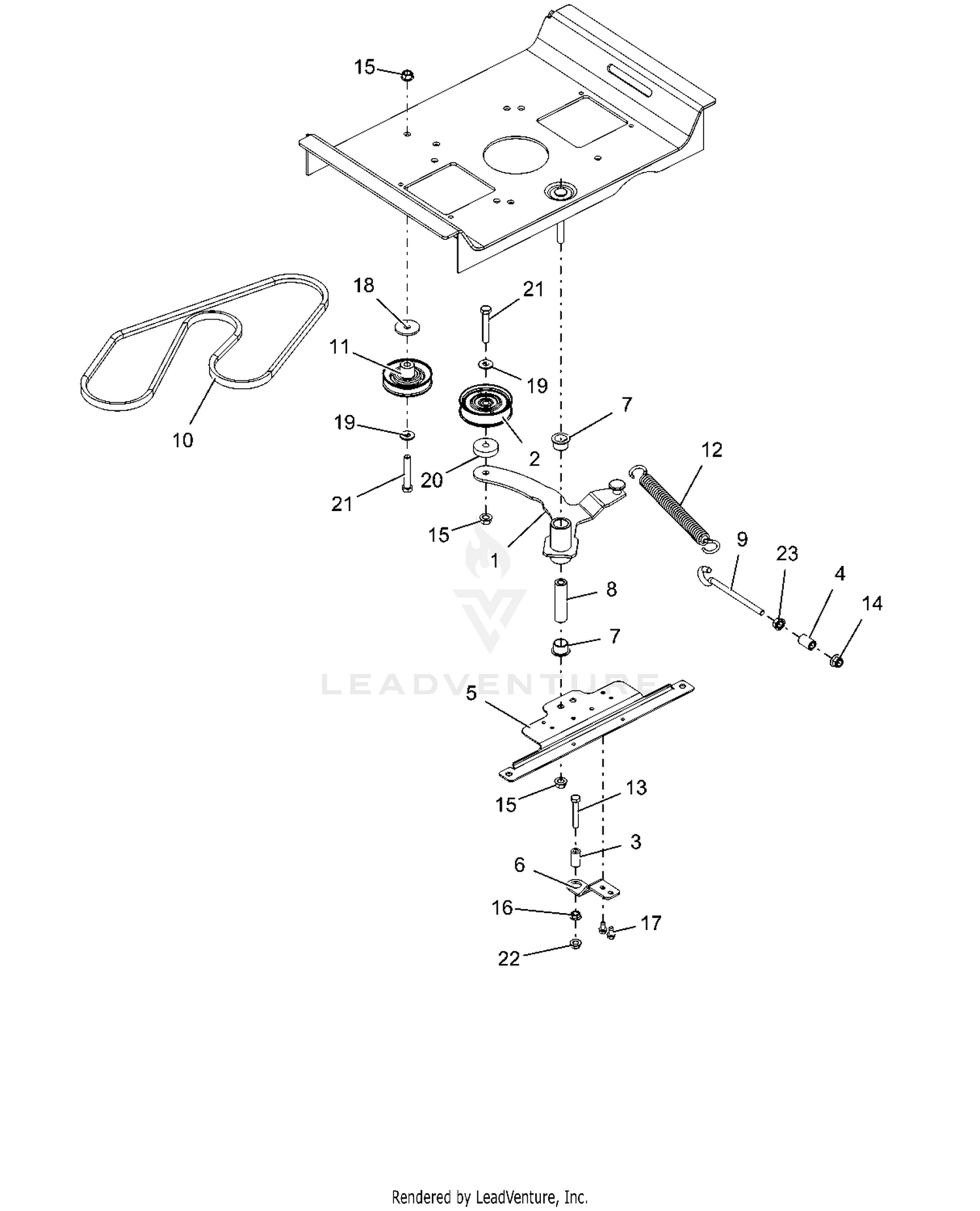

| Ref | Part Number | Description |
|---|
| 1 |
04890451 |
WLDMT,GRD DRIVE IDLER ARM-LGR Price: $52.95 |
| 2 |
07350200 |
IDLER, FLAT - 3.000" X .750" This part replaces 07340000. Price: $20.45 |
| 3 |
03980200 |
SPACER, RUBBER 5/16 IDX1.0 LG Price: $2.45 |
| 4 |
04193500 |
SPACER, .375X.625X.970 (PM) Price: $0.95 |
| 5 |
04875151 |
BRKT, DRIVE IDLER MOUNTING Price: $22.45 |
| 6 |
04879351 |
BRKT, CLUTCH STOP (XL) Price: $17.45 |
| 7 |
05500039 |
BSHG-FLG 0.75X0.875X.625X1.125 Price: $6.95 |
| 8 |
05501237 |
BUSHING, SLEEVE .38X.750X2.78 Price: $15.45 |
| 9 |
07001640 |
BOLT,.38-16 X 4.25-.62 DIA EYE Price: $15.45 |
| 10 |
07200724 |
V-BELT, A-RAW EDGE Price: $46.95 |
| 11 |
51531400 |
KIT,GRD DRIVE STATIONARY IDLER This part replaces 07345400. Price: $35.45 |
| 12 |
08300728 |
SPRING- EXTENSION Price: $24.95 |
| 13 |
05901805 |
BLT- HEX .31-18X2.00 G5 ZCC This part replaces 05957200. Price: $1.45 |
| 14 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 15 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 16 |
06500815 |
NUT,SPNLK-FLG .31-18 G5 ZCC This part replaces 06530400. Price: $1.45 |
| 17 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07400034. Price: $0.45 |
| 18 |
06401106 |
WSHR, FLT .380X1.50X.125 ZCC This part replaces 06443400. Price: $3.45 |
| 19 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
| 20 |
01594000 |
SPACER, .39 X 1.50 X .380 Price: $3.45 |
| 21 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC This part replaces 05962900. Price: $3.95 |
| 22 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
