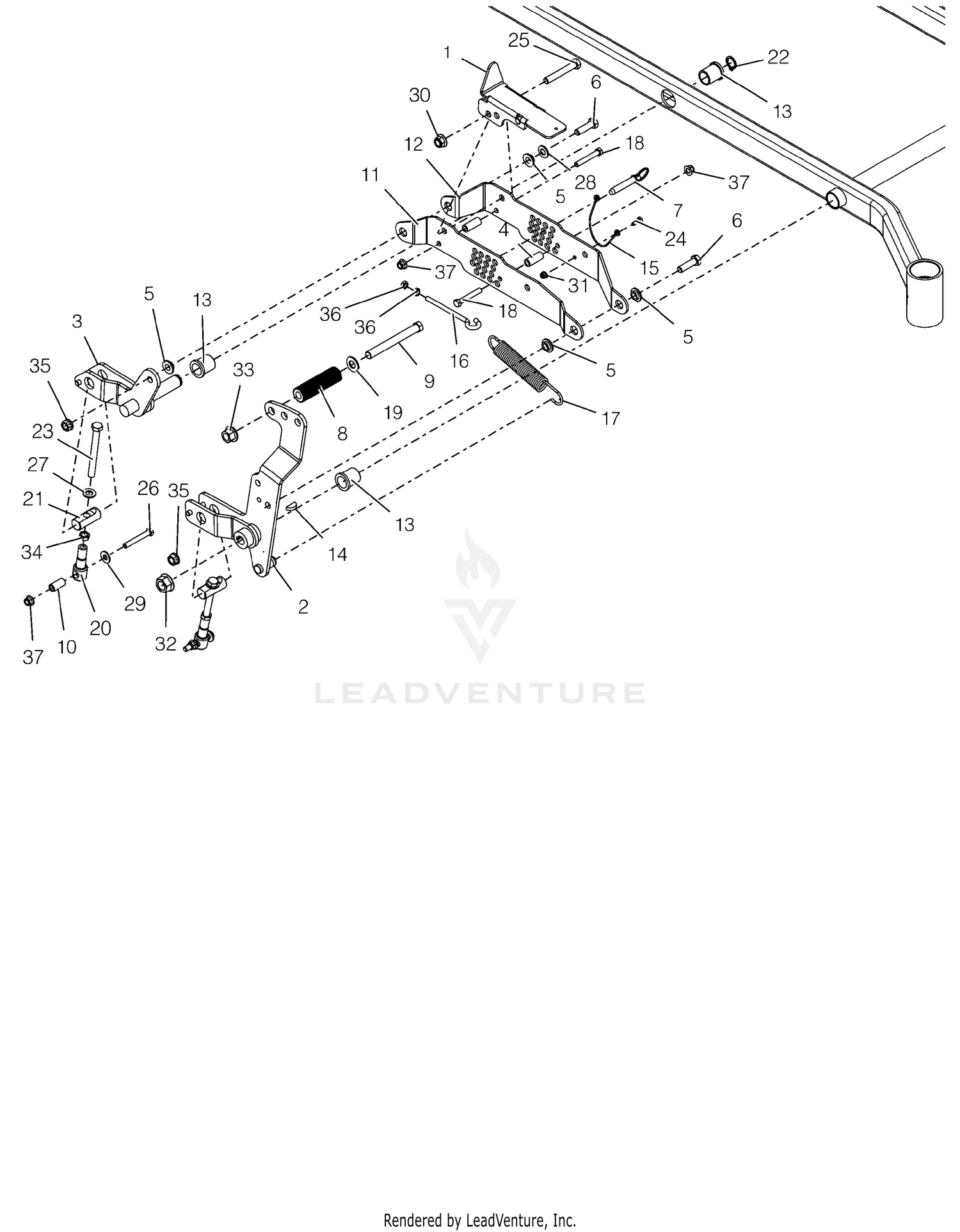

| Ref | Part Number | Description |
|---|
| 1 |
03864051 |
MECHANICAL LOCK-UP WMT - BLACK Price: $21.45 |
| 2 |
04896967 |
FRT RH DECK LIFT ARM WMT- LF Price: $122.45 |
| 3 |
05009867 |
REAR RH DECK LIFT ARM WMT- LF Price: $56.45 |
| 4 |
03954800 |
SPACER, .375 X .625 X 1.54 Price: $5.95 |
| 5 |
03989100 |
BSHG-FLG .515X.750X.310X1.120 Price: $3.45 |
| 6 |
05901939 |
BLT, HEX .50-13X1.75 G5 ZCC This part replaces 05970600. Price: $3.95 |
| 7 |
04822400 |
PIN, .50 X 2.00 USABLE LG BALL Price: $8.95 |
| 8 |
05120951 |
ROD, FOOT PEDAL (BLACK) Price: $20.45 |
| 9 |
05901730 |
BLT, HEX .62-11X5.50 G5 FBP Price: $6.45 |
| 10 |
04895200 |
SPACER, DECK LEVELING Price: $2.45 |
| 11 |
05009451 |
RH OTBRRD LIFT/CUT HT BRKT-BLK Price: $24.45 |
| 12 |
05009551 |
RH INBRD LIFT/CUT HT BRKT-BLK Price: $24.45 |
| 13 |
05500934 |
BSHG-FLG 1.00X1.25X1.50X1.50 Price: $6.95 |
| 14 |
06608900 |
KEY-WDRF .25X1.00 HRD #15 Price: $3.45 |
| 15 |
06900317 |
CABLE, 12.0 LANYARD, NYLON Price: $3.45 |
| 16 |
07001640 |
BOLT,.38-16 X 4.25-.62 DIA EYE Price: $15.45 |
| 17 |
08319000 |
SG-TENS .162X1.25X8.25 WLD 25 Price: $29.95 |
| 18 |
05901812 |
BLT, HEX .38-16X2.50 G5 ZCC This part replaces 05958400. Price: $2.45 |
| 19 |
06401039 |
WSHRFLT 5/8SAE CARBHARD FBP Price: $3.45 |
| 20 |
05081400 |
LINK, DECK LIFT FORMED Price: $14.45 |
| 21 |
05149500 |
PIN, DECK LIFT Price: $14.95 |
| 22 |
05707300 |
RG-RTNG-EXT 1.00X.078 Price: $2.95 |
| 23 |
05901925 |
BLT, HEX 0.5-13X5S GR5 ZCC This part replaces 05901622. Price: $4.45 |
| 24 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 25 |
05901634 |
BLT,HEX .50-13X3.25 G5 ZCC This part replaces 05960000. Price: $3.45 |
| 26 |
05901813 |
BLT, HEX .38-16X2.75 G8 ZCC This part replaces 05963000. Price: $1.45 |
| 27 |
06401116 |
WSHR, FLT .557X1.040X.102 ZCC This part replaces 06400418. Price: $1.45 |
| 28 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC Price: $0.95 |
| 29 |
06401008 |
WSHR-FLT .438X1.00X.083 ZCC This part replaces 06435900. Price: $1.45 |
| 30 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 31 |
06500813 |
NUT,NYL-FLG .25-20 GF ZCC This part replaces 06500012. Price: $1.45 |
| 32 |
06500931 |
NUT,FLG-TOP LK .750-10 FCC This part replaces 06500829. Price: $3.45 |
| 33 |
06500835 |
NUT,FLG-TOP LK .625-11 FBP Price: $6.45 |
| 34 |
06500911 |
NUT-JAM .500-13 G2 ZCC This part replaces 06529300. Price: $1.45 |
| 35 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC This part replaces 06530008. Price: $0.95 |
| 36 |
06500910 |
NUT-JAM .375-16 G2 ZCC This part replaces 06535900. Price: $0.95 |
