511000545
Cover

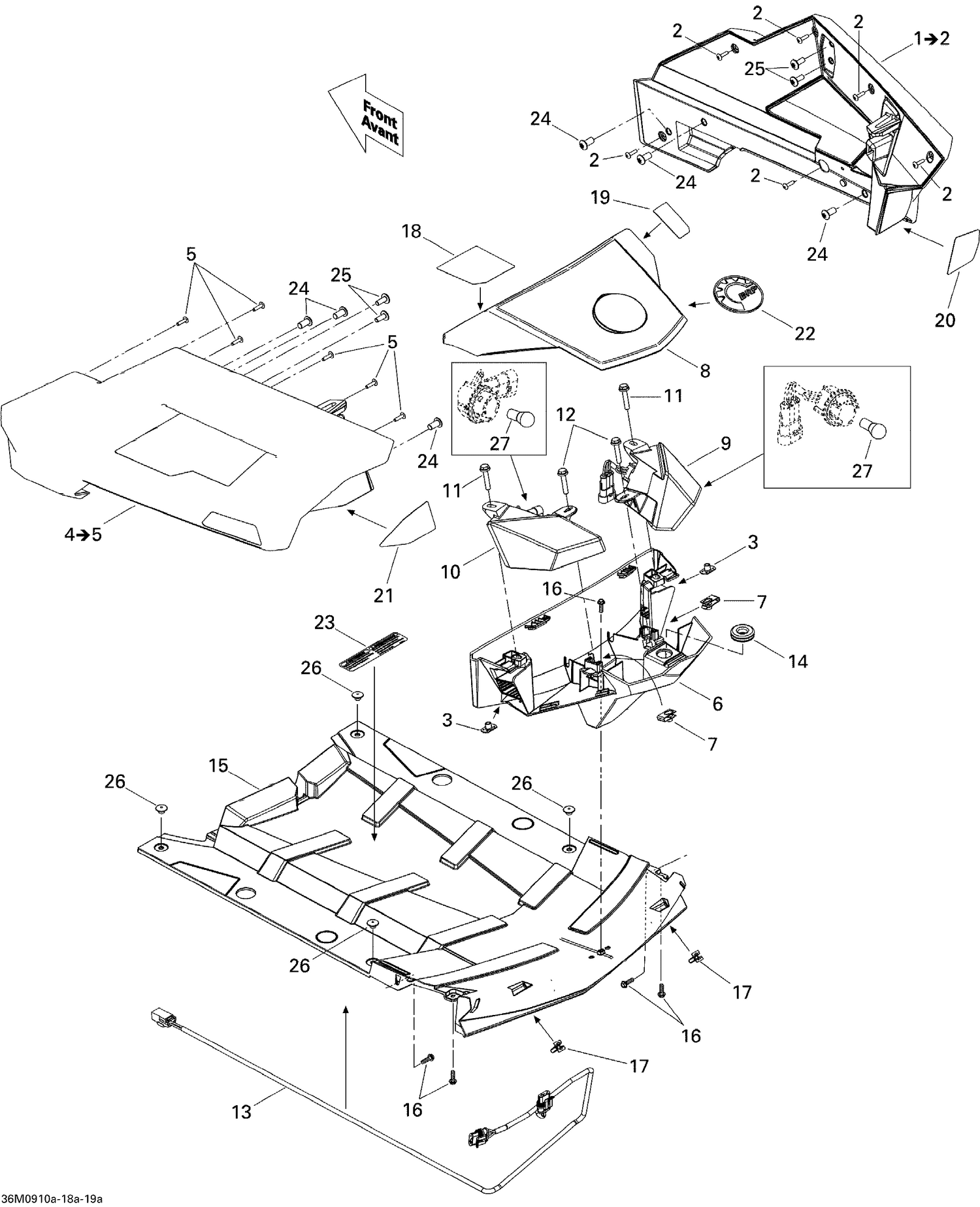

Схема сборки, где используется деталь
Used in (26 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| SKI_DOO_EN_US | 09- Luggage Rack | Ski-Doo / 2009 / GTX / GTX LE 1200 4-TEC, 2009 000EP9A00 000EP9B00 / 09- Luggage | 8 |
| SKI_DOO_EN_US | 09- Luggage Rack | Ski-Doo / 2009 / GTX / GTX SE 1200 4-TEC, 2009 000ER9A00 000ER9B00 / 09- Luggage | 8 |
| SKI_DOO_EN_US | 09- Luggage Rack | Ski-Doo / 2009 / GTX / GTX Sport 500SS, 2009 000ED9A00 / 09- Luggage Rack | 8 |
| SKI_DOO_EN_US | 09- Luggage Rack 1 | Ski-Doo / 2010 / Grand-Touring / Grand-Touring LE 1200, 2010 000EPAA00 / 09- Lug | 8 |
| SKI_DOO_EN_US | 09- Luggage Rack | Ski-Doo / 2011 / Grand-Touring / Grand Touring LE & SE 1200 XR, 2011 000EPBA00 0 | 7 |
| SKI_DOO_EN_US | 09- Luggage Rack | Ski-Doo / 2011 / Grand-Touring / Grand Touring LE 600HO ETEC XR, 2011 000ESBA00 | 7 |
| SKI_DOO_EN_US | 09- Luggage Rack 1 | Ski-Doo / 2012 / Grand-Touring / Grand Touring LE & SE 1200 XR, 2012 000EPCA00 0 | 10 |
| SKI_DOO_EN_US | 09- Luggage Rack | Ski-Doo / 2012 / Grand-Touring / Grand Touring LE 600HOETEC XR, 2012 000ESCA00 0 | 10 |
| SKI_DOO_EN_US | 09- Luggage Rack | Ski-Doo / 2013 / GRAND TOURING / GRAND TOURING LE & SE 1200 XR, 2013 000EPDA00 0 | 34 |
| SKI_DOO_EN_US | 09- Luggage Rack | Ski-Doo / 2013 / GRAND TOURING / GRAND TOURING LE & SE 1200 XR, 2013 000EPDA00 0 | 34 |
| SKI_DOO_EN_US | 09- Luggage Rack | Ski-Doo / 2013 / GRAND TOURING / GRAND TOURING LE 600HOE XR, 2013 000ESDA00 000E | 34 |
| SKI_DOO_EN_US | 09- Luggage Rack LE | Ski-Doo / 2014 / GRAND TOURING / GRAND TOURING LE 12004TEC XR, 2014 000EPEA00 / | 33 |
| SKI_DOO_EN_US | 09- Luggage Rack | Ski-Doo / 2014 / GRAND TOURING / GRAND TOURING LE 600HOE XR, 2014 000ESEA00 / 09 | 33 |
| SKI_DOO_EN_US | 09- Luggage Rack | Ski-Doo / 2014 / GRAND TOURING / GRAND TOURING LE 900 ACE XR, 2014 000EAEA00 / 0 | 33 |
| SKI_DOO_EN_US | 09- Luggage Rack SE | Ski-Doo / 2014 / GRAND TOURING / GRAND TOURING SE 12004TEC XR, 2014 000EREA00 00 | 33 |
| SKI_DOO_EN_US | 09- Luggage Rack LE_36M1522b | Ski-Doo / 2015 / GRAND TOURING / Grand Touring LE 1200 XR137, 2015 000EPFA00 / 0 | 21 |
| SKI_DOO_EN_US | 09- Luggage Rack _36M1524 | Ski-Doo / 2015 / GRAND TOURING / Grand Touring LE 600HOETEC XR137, 2015 000ESFA0 | 21 |
| SKI_DOO_EN_US | 09- Luggage Rack _36M1540 | Ski-Doo / 2015 / GRAND TOURING / Grand Touring LE 900ACE XR137, 2015 000EAFA00 / | 21 |
| SKI_DOO_EN_US | 09- Luggage Rack SE_36M1522a | Ski-Doo / 2015 / GRAND TOURING / Grand Touring SE 1200 XR137, 2015 000ERFA00 / 0 | 21 |
| SKI_DOO_EN_US | 09- Luggage Rack | Ski-Doo / 2016 / GRAND TOURING Family / GRAND TOURING - 2-STROKE, 2016 000ESGA00 | 18 |
| SKI_DOO_EN_US | 09- Luggage Rack - Package LE-SE | Ski-Doo / 2016 / GRAND TOURING Family / GRAND TOURING - 4-STROKE, 2016 000EAGA00 | 18 |
| SKI_DOO_EN_US | 09- Luggage Rack - Package LE | Ski-Doo / 2017 / GRAND TOURING Family / GRAND TOURING - 2-STROKE, 2017 000ESHA00 | 5 |
| SKI_DOO_EN_US | 09- Luggage Rack - Package LE | Ski-Doo / 2017 / GRAND TOURING Family / GRAND TOURING - 4-STROKE, 2017 000EAHA00 | 5 |
| SKI_DOO_EN_US | 09- Luggage Rack - Package SE | Ski-Doo / 2017 / GRAND TOURING Family / GRAND TOURING - 4-STROKE, 2017 000EAHA00 | 5 |
| SKI_DOO_EN_US | 09- Luggage Rack Grand Touring - 600HO E-TEC | Ski-Doo / 2018 / SKI-DOO - GRAND TOURING Series / 1- GRAND TOURING 600HO E-TEC, | 5 |
| SKI_DOO_EN_US | 09- Luggage Rack Grand Touring - 4-TEC | Ski-Doo / 2018 / SKI-DOO - GRAND TOURING Series / 3- GRAND TOURING 900 ACE 2018 | 5 |
