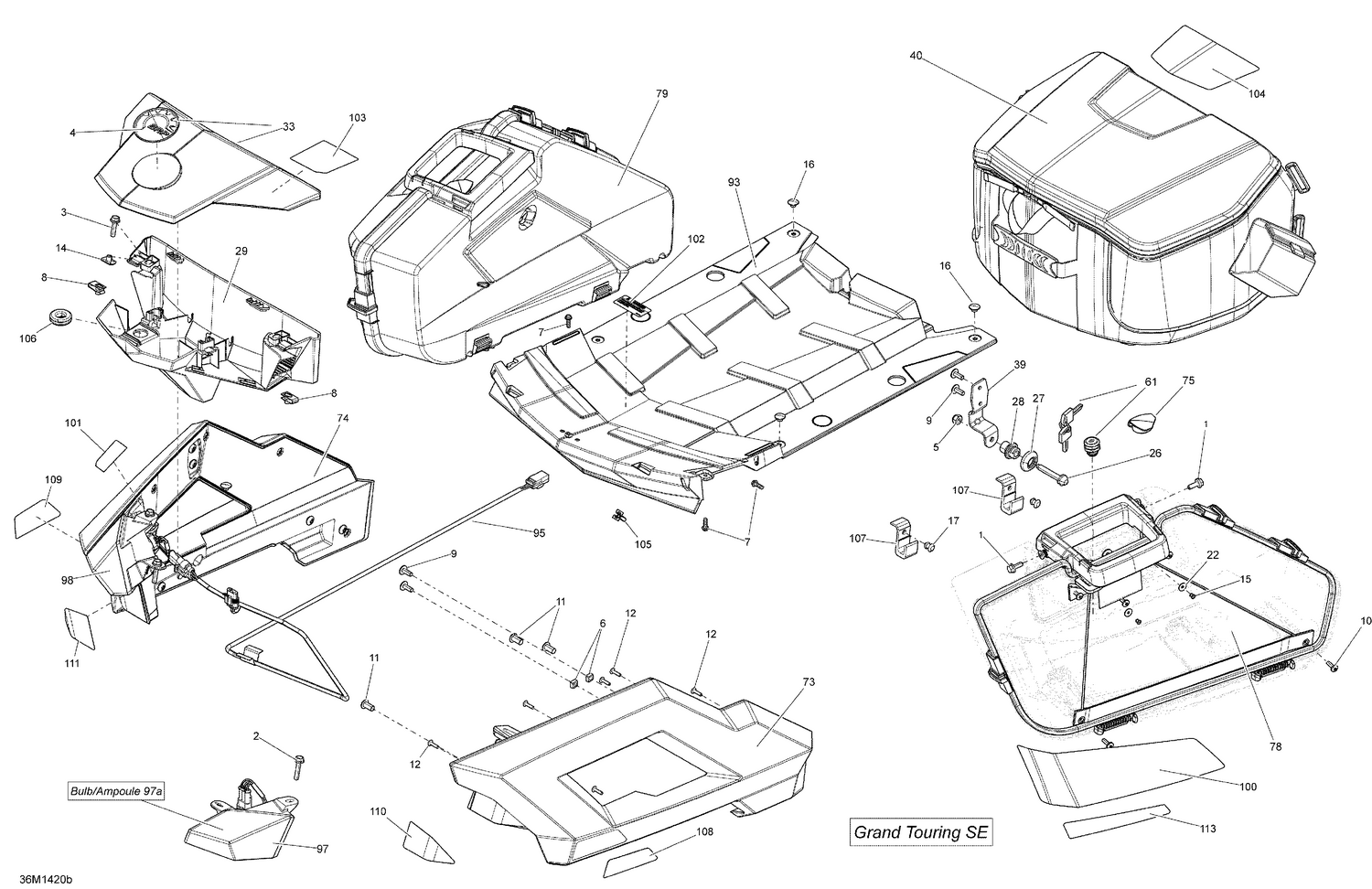

| Ref | Part Number | Description |
|---|
| 1 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 2 |
207563044 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 3 |
207662554 |
Hex. Flange Screw M6 X 25 This part replaces 207662584. |
| 4 |
516008739 |
BRP Logo 68mm This part replaces 219903609. |
| 5 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 6 |
232862412 |
Square Nut M6 |
| 7 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 8 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 9 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 10 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 11 |
250000751 |
Torx Screw M8 X 16 This part replaces 250000243. |
| 12 |
250000759 |
Torx Truss Pt K40 X 16 This part replaces 250000294. |
| 14 |
293100003 |
Nut Welded, M6 |
| 15 |
293150285 |
Pop RIvet 1/8 X ,375 This part replaces 293150006. |
| 16 |
293150103 |
Pop Rivet 3/16" |
| 17 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 22 |
391301000 |
WASHER - Call your local BRP dealership |
| 26 |
511000337 |
SUITCASE STUD - Call your local BRP dealership |
| 27 |
511000358 |
Rubber Bumper |
| 28 |
511000423 |
STUD NUT - Call your local BRP dealership |
| 29 |
511000530 |
Rack Ass'y |
| 33 |
511000545 |
Cover |
| 39 |
511000580 |
SADDLE BAG LUG SUPPORT - Call your local BRP dealership |
| 40 |
860200174 |
REAR TRAVEL BAG - Call your local BRP dealership |
| 61 |
511000599 |
LOCK - Call your local BRP dealership |
| 73 |
511000631 |
RH Arm Ass'y |
| 74 |
511000632 |
LH ARM ASS'Y - Call your local BRP dealership |
| 75 |
511000639 |
BLACK SEALING CAP - Call your local BRP dealership |
| 78 |
511000848 |
RH SUIT CASE - Call your local BRP dealership |
| 79 |
511000849 |
LH SUIT CASE - Call your local BRP dealership |
| 93 |
511000861 |
Radiator Cover |
| 95 |
515176634 |
HARNESS RACK - Call your local BRP dealership |
| 97 |
515176849 |
RH Tail Light Ass'y |
| 98 |
515176850 |
LH Tail Light Ass'y |
| 100 |
516005531 |
LH Suit Case Decal |
| 100 |
516005532 |
RH Suit Case Decal |
| 101 |
516004585 |
WARNING DECAL, SECURITY - Call your local BRP dealership |
| 102 |
516005523 |
WARNING DECAL - Call your local BRP dealership |
| 103 |
516004603 |
WARNING DECAL, SECURITY - Call your local BRP dealership |
| 104 |
516005527 |
Bag Decal |
| 105 |
517302785 |
Edge Clip |
| 106 |
517303756 |
Grommet |
| 107 |
518325618 |
Support Plate |
| 108 |
520000729 |
Red RH Rear Reflector |
| 109 |
520000730 |
RED LH REAR REFLECTOR - Call your local BRP dealership |
| 110 |
520000731 |
Red RH Rear Reflector |
| 111 |
520000732 |
Red LH Rear Reflector |
| 113 |
520000756 |
Red LH Rear Reflector |
| 113 |
520000757 |
Red RH Rear Reflector |
