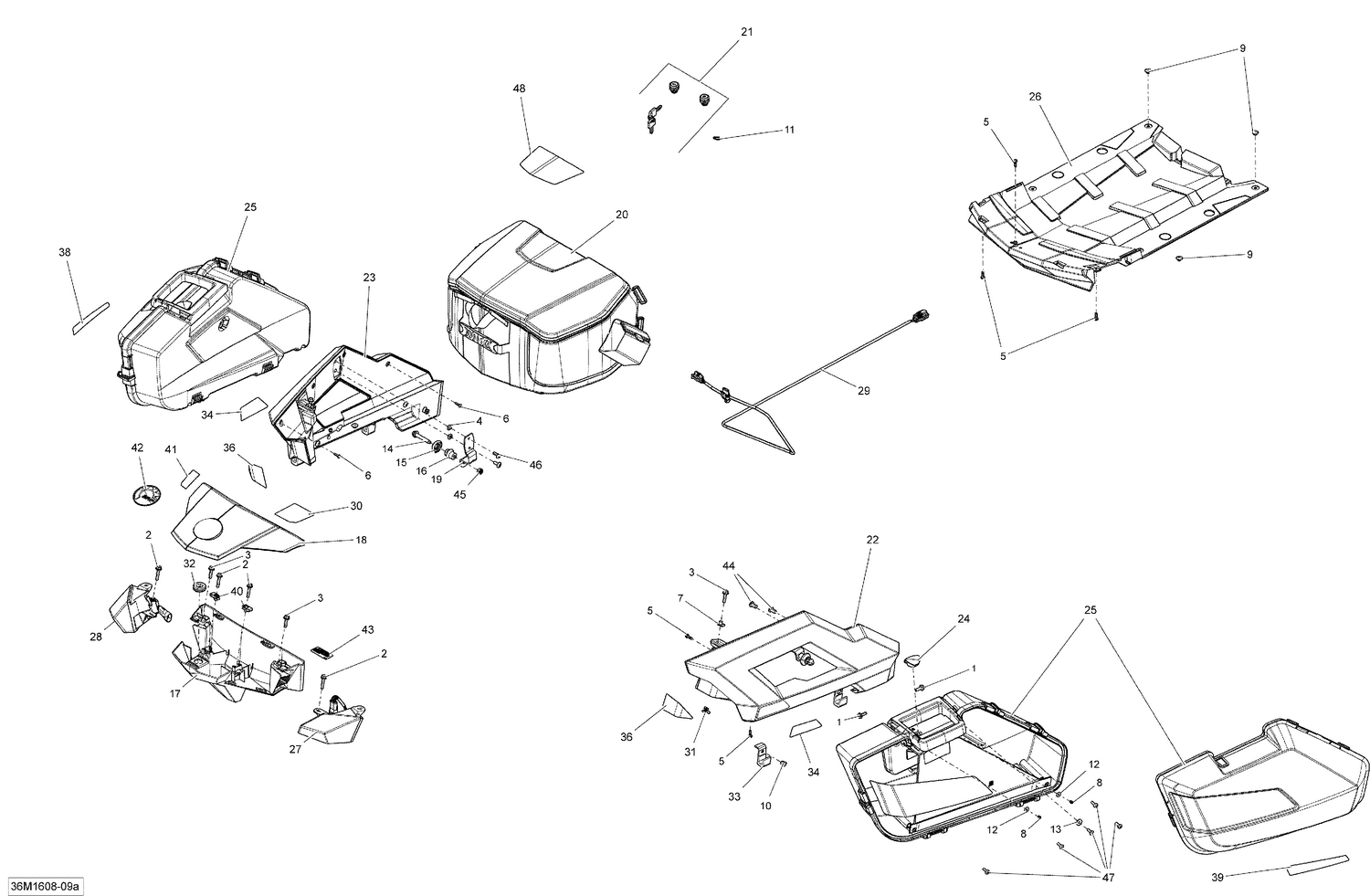

09- Luggage Rack
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 2 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 3 | 207662554 | Hex. Flange Screw M6 X 25 This part replaces 207662584. |
| 4 | 232862412 | Square Nut M6 |
| 5 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 6 | 250000759 | Torx Truss Pt K40 X 16 This part replaces 250000294. |
| 7 | 293100003 | Nut Welded, M6 |
| 8 | 293150285 | Pop RIvet 1/8 X ,375 This part replaces 293150006. |
| 9 | 293150103 | Pop Rivet 3/16" |
| 10 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 11 | 293750001 | Tie Wrap 94 mm |
| 12 | 391301000 | WASHER - Call your local BRP dealership |
| 13 | 391301600 | Washer |
| 14 | 511000337 | SUITCASE STUD - Call your local BRP dealership |
| 15 | 511000358 | Rubber Bumper |
| 16 | 511000423 | STUD NUT - Call your local BRP dealership |
| 17 | 511000530 | Rack Ass'y |
| 18 | 511000545 | Cover |
| 19 | 511000580 | SADDLE BAG LUG SUPPORT - Call your local BRP dealership |
| 20 | 860200174 | REAR TRAVEL BAG - Call your local BRP dealership |
| 21 | 511000599 | LOCK - Call your local BRP dealership |
| 22 | 511000631 | RH Arm Ass'y |
| 23 | 511000632 | LH ARM ASS'Y - Call your local BRP dealership |
| 24 | 511000639 | BLACK SEALING CAP - Call your local BRP dealership |
| 25 | 511001077 | RH SUIT CASE - Call your local BRP dealership |
| 26 | 511000861 | Radiator Cover |
| 27 | 515176849 | RH Tail Light Ass'y |
| 28 | 515176850 | LH Tail Light Ass'y |
| 29 | 515178022 | Harness |
| 30 | 516004603 | WARNING DECAL, SECURITY - Call your local BRP dealership |
| 31 | 517302785 | Edge Clip |
| 32 | 517303756 | Grommet |
| 33 | 518325618 | Support Plate |
| 34 | 520000729 | Red RH Rear Reflector |
| 34 | 520000730 | RED LH REAR REFLECTOR - Call your local BRP dealership |
| 36 | 520000731 | Red RH Rear Reflector |
| 36 | 520000732 | Red LH Rear Reflector |
| 38 | 520000756 | Red LH Rear Reflector |
| 39 | 520000757 | Red RH Rear Reflector |
| 40 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 41 | 516006912 | WARNING DECAL - Call your local BRP dealership |
| 42 | 516008739 | BRP Logo 68mm This part replaces 219903609. |
| 43 | 516005523 | WARNING DECAL - Call your local BRP dealership |
| 44 | 250000751 | Torx Screw M8 X 16 |
| 45 | 232581200 | Hex. Elastic Nut M8 Brass |
| 46 | 250000721 | Torx Truss Screw M6 X 16 |
| 47 | 250000720 | Torx Screw K50 X 16 |
