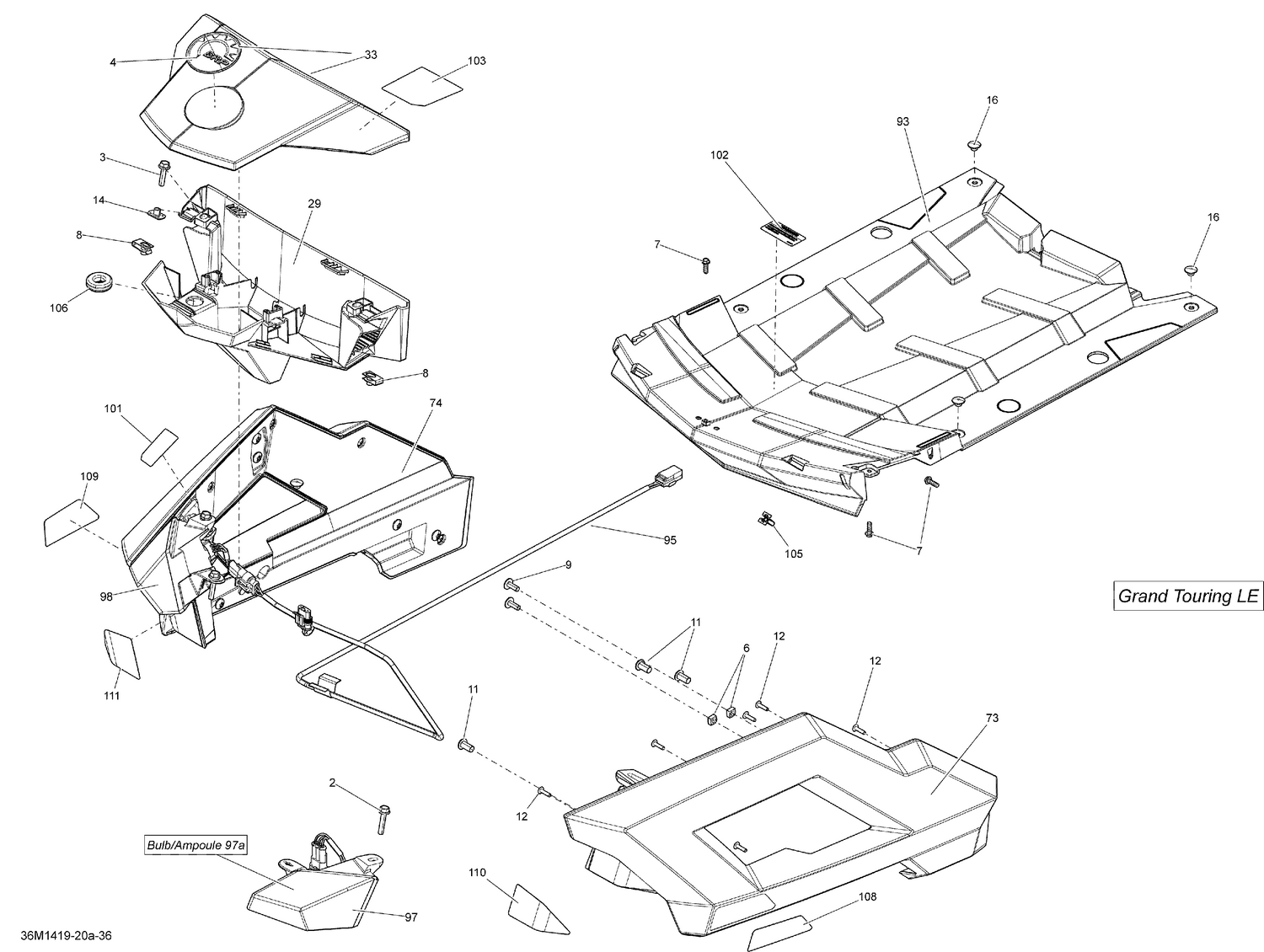

| Ref | Part Number | Description |
|---|
| 2 |
207563044 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 3 |
207662554 |
Hex. Flange Screw M6 X 25 This part replaces 207662584. |
| 4 |
516008739 |
BRP Logo 68mm This part replaces 219903609. |
| 6 |
232862412 |
Square Nut M6 |
| 7 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 8 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 9 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 11 |
250000751 |
Torx Screw M8 X 16 This part replaces 250000243. |
| 12 |
250000759 |
Torx Truss Pt K40 X 16 This part replaces 250000294. |
| 14 |
293100003 |
Nut Welded, M6 |
| 16 |
293150103 |
Pop Rivet 3/16" |
| 29 |
511000530 |
Rack Ass'y |
| 33 |
511000545 |
Cover |
| 73 |
511000631 |
RH Arm Ass'y |
| 74 |
511000632 |
LH ARM ASS'Y - Call your local BRP dealership |
| 93 |
511000861 |
Radiator Cover |
| 95 |
515176634 |
HARNESS RACK - Call your local BRP dealership |
| 97 |
515176849 |
RH Tail Light Ass'y |
| 98 |
515176850 |
LH Tail Light Ass'y |
| 101 |
516004585 |
WARNING DECAL, SECURITY - Call your local BRP dealership |
| 102 |
516005523 |
WARNING DECAL - Call your local BRP dealership |
| 103 |
516004603 |
WARNING DECAL, SECURITY - Call your local BRP dealership |
| 105 |
517302785 |
Edge Clip |
| 106 |
517303756 |
Grommet |
| 108 |
520000729 |
Red RH Rear Reflector |
| 109 |
520000730 |
RED LH REAR REFLECTOR - Call your local BRP dealership |
| 110 |
520000731 |
Red RH Rear Reflector |
