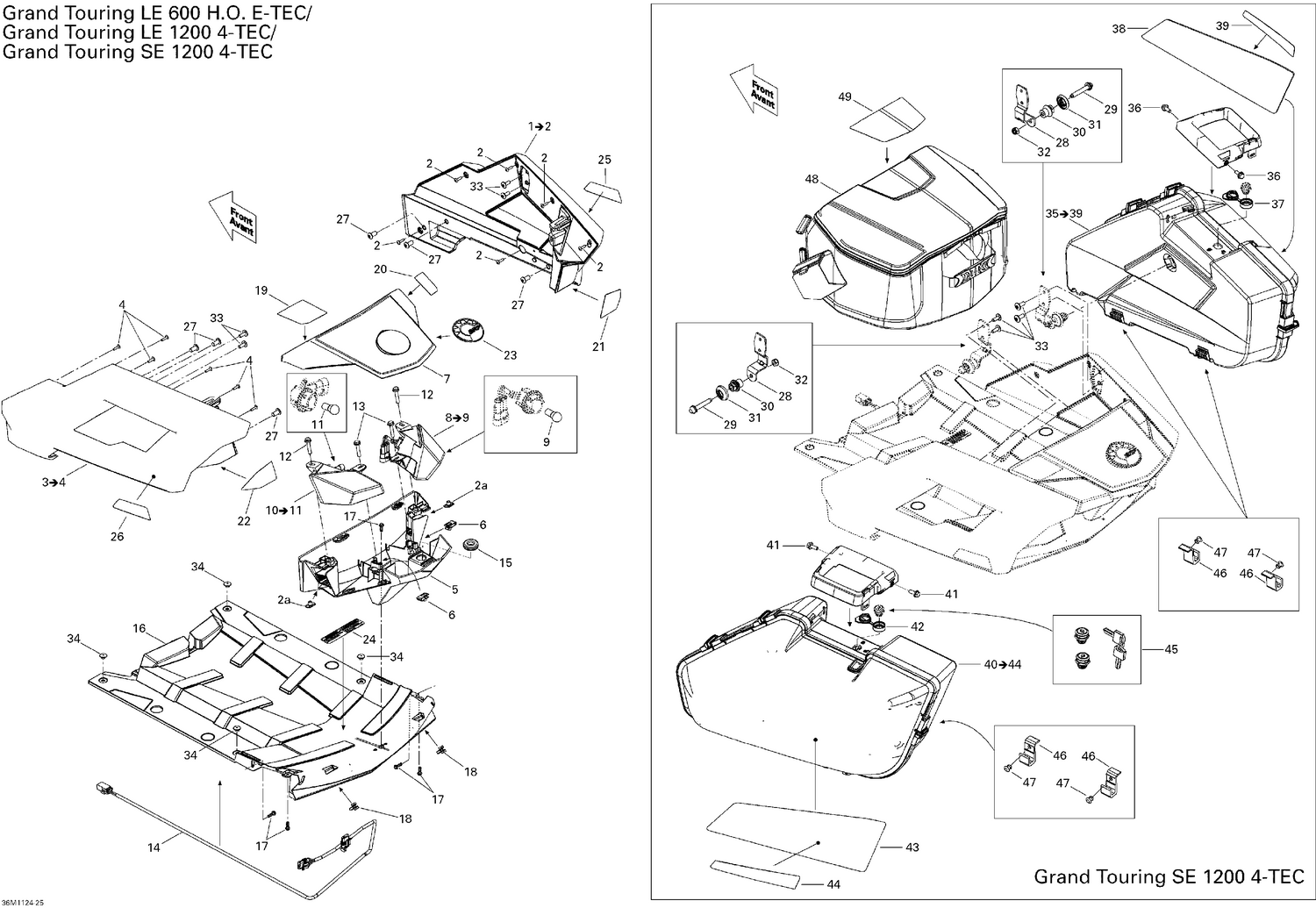

09- Luggage Rack

09- Luggage Rack

Parts (43)

RefPart NumberDescription
2 250000759 Torx Truss Pt K40 X 16 This part replaces 250000294.
2a 293100003 Nut Welded, M6
4 250000759 Torx Truss Pt K40 X 16 This part replaces 250000294.
5 511000530 Rack Ass'y
6 250100198 Panel Nut M6 X 1.0 This part replaces 250100113.
7 511000545 Cover
9 520000758 Bulb This part replaces 415129425.
11 520000758 Bulb This part replaces 415129425.
12 207563044 Hex. Flange Screw M6 X 30, Scotch Grip
13 207662554 Hex. Flange Screw M6 X 25 This part replaces 207662584.
14 515176634 HARNESS RACK - Call your local BRP dealership
15 517303756 Grommet
16 511000861 Radiator Cover This part replaces 511000531.
17 241151640 Hex. Flange Screw K50 X 2.24 X 16
18 517302785 Edge Clip
19 516004585 WARNING DECAL, SECURITY - Call your local BRP dealership
20 516004603 WARNING DECAL, SECURITY - Call your local BRP dealership
21 520000731 Red RH Rear Reflector
22 520000732 Red LH Rear Reflector
23 516008739 BRP Logo 68mm This part replaces 219902469.
24 516004587 WARNING DECAL, SECURITY - Call your local BRP dealership
25 520000729 Red RH Rear Reflector
26 520000730 RED LH REAR REFLECTOR - Call your local BRP dealership
27 250000751 Torx Screw M8 X 16 This part replaces 250000243.
28 XXX Not Available As Spare Parts
29 XXX Not Available As Spare Parts
30 XXX Not Available As Spare Parts
31 XXX Not Available As Spare Parts
32 XXX Not Available As Spare Parts
33 XXX Not Available As Spare Parts
34 XXX Not Available As Spare Parts
36 XXX Not Available As Spare Parts
37 XXX Not Available As Spare Parts
38 XXX Not Available As Spare Parts
39 XXX Not Available As Spare Parts
41 XXX Not Available As Spare Parts
42 XXX Not Available As Spare Parts
43 XXX Not Available As Spare Parts
44 XXX Not Available As Spare Parts
45 XXX Not Available As Spare Parts
46 XXX Not Available As Spare Parts
47 XXX Not Available As Spare Parts
48 XXX Not Available As Spare Parts
