503191579

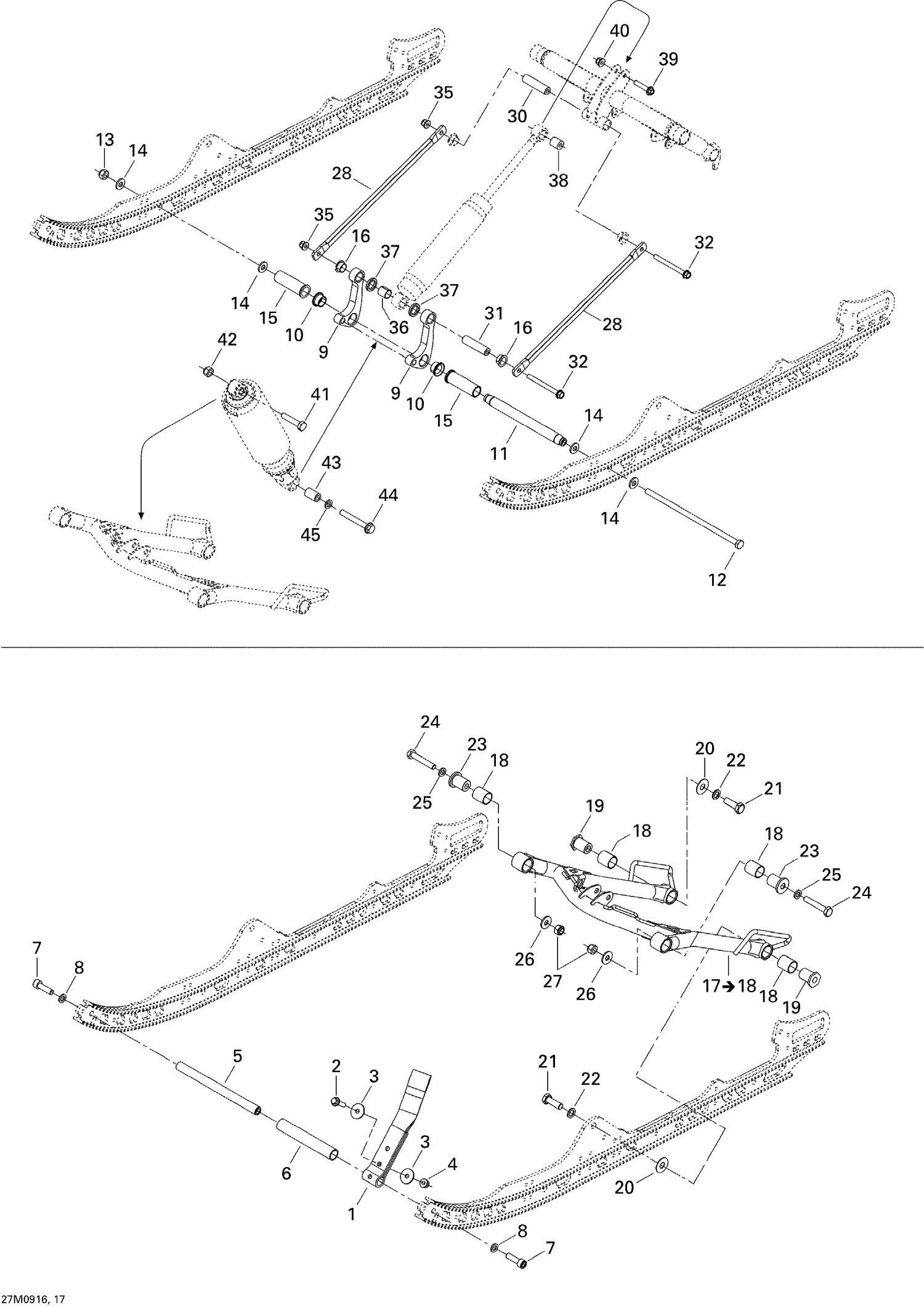

Front Arm Ass'y
Схема сборки, где используется деталь
Used in (41 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| SKI_DOO_EN_US | 08- Front Arm | Ski-Doo / 2009 / GSX / GSX Limited 1200 4-TEC, 2009 000DK9A00 000DK9B00 / 08- Fr | 17 |
| SKI_DOO_EN_US | 08- Front Arm | Ski-Doo / 2009 / GTX / GTX LE 1200 4-TEC, 2009 000EP9A00 000EP9B00 / 08- Front A | 17 |
| SKI_DOO_EN_US | 08- Front Arm | Ski-Doo / 2009 / GTX / GTX SE 1200 4-TEC, 2009 000ER9A00 000ER9B00 / 08- Front A | 17 |
| SKI_DOO_EN_US | 08- Front Arm | Ski-Doo / 2009 / MX Z / MX Z TNT 1200 4-TEC, 2009 000ML9A00 / 08- Front Arm | 17 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base 137" | Ski-Doo / 2012 / Freeride / Freeride 137 & 146 & 154 800RETEC XP, 2012 000VACA00 | 54 |
| SKI_DOO_EN_US | 08- Rear Suspension (LE) Front Arm And Base | Ski-Doo / 2012 / GSX / GSX LE & SE 1200 XR, 2012 000DKCA00 000DNCA00 000DNCB00 / | 50 |
| SKI_DOO_EN_US | 08- Rear Suspension (SE) Front Arm And Base | Ski-Doo / 2012 / GSX / GSX LE & SE 1200 XR, 2012 000DKCA00 000DNCA00 000DNCB00 / | 54 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base | Ski-Doo / 2012 / GSX / GSX LE 600HOETEC XP, 2012 000DDCA00 / 08- Rear Suspension | 50 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base | Ski-Doo / 2012 / GSX / GSX SE 600HOETEC, 2012 000DMCA00 000DMCB00 000DPCA00 000D | 54 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base | Ski-Doo / 2012 / Grand-Touring / Grand Touring LE & SE 1200 XR, 2012 000EPCA00 0 | 54 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base | Ski-Doo / 2012 / Grand-Touring / Grand Touring LE 600HOETEC XR, 2012 000ESCA00 0 | 54 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base | Ski-Doo / 2012 / MX Z / MXZ Sport 550F XP-FAN, 2012 000UBCA00 000UBCB00 / 08- Re | 50 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base | Ski-Doo / 2012 / MX Z / MXZ Sport 600ACE LFF, 2012 000MSCA00 / 08- Rear Suspensi | 50 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base | Ski-Doo / 2012 / MX Z / MXZ TNT & Sport 600 XP, 2012 000BHCA00 000BHCB00 000MFCA | 50 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base | Ski-Doo / 2012 / MX Z / MXZ TNT 550F XP-FAN, 2012 000BNCA00 000BNCB00 000BNCC00 | 50 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base | Ski-Doo / 2012 / MX Z / MXZ TNT 600ACE LFF, 2012 000USCA00 / 08- Rear Suspension | 50 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base | Ski-Doo / 2012 / MX Z / MXZ TNT 600HOETEC, 2012 000UECA00 000UECB00 / 08- Rear S | 50 |
| SKI_DOO_EN_US | 08- Rear Suspension (TNT) Front Arm And Base | Ski-Doo / 2012 / MX Z / MXZ X & TNT 1200 XR, 2012 000MKCA00 000MKCB00 000MKCC00 | 50 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base | Ski-Doo / 2012 / Renegade / Renegade Adrenaline 600HOETEC, 2012 000BXCA00 000BXC | 54 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base | Ski-Doo / 2012 / Renegade / Renegade Back Country 600HOETEC, 2012 000UJCA00 000U | 54 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base | Ski-Doo / 2012 / Renegade / Renegade Back Country X 600HOETEC, 2012 000ULCA00 00 | 54 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base | Ski-Doo / 2012 / Renegade / Renegade X & Adrenaline 1200 XR, 2012 000MMCA00 000M | 54 |
| SKI_DOO_EN_US | 08- Rear Suspension Front Arm And Base | Ski-Doo / 2012 / Renegade / Renegade X 600HOETEC, 2012 000BWCA00 000BWCB00 000BW | 54 |
| SKI_DOO_EN_US | 08- Rear Suspension 137 | Ski-Doo / 2013 / FREERIDE / FREERIDE 137, 146, 154, 800RE XP, 2013 000VADA00 000 | 158 |
| SKI_DOO_EN_US | 08- Rear Suspension LE | Ski-Doo / 2013 / GRAND TOURING / GRAND TOURING LE & SE 1200 XR, 2013 000EPDA00 0 | 158 |
| SKI_DOO_EN_US | 08- Rear Suspension SE | Ski-Doo / 2013 / GRAND TOURING / GRAND TOURING LE & SE 1200 XR, 2013 000EPDA00 0 | 158 |
| SKI_DOO_EN_US | 08- Rear Suspension | Ski-Doo / 2013 / GRAND TOURING / GRAND TOURING LE 600HOE XR, 2013 000ESDA00 000E | 158 |
| SKI_DOO_EN_US | 08- Rear Suspension LE | Ski-Doo / 2013 / GSX / GSX LE & SE 1200 XR, 2013 000DKDA00 000DNDA00 000DNDB00 / | 158 |
| SKI_DOO_EN_US | 08- Rear Suspension SE | Ski-Doo / 2013 / GSX / GSX LE & SE 1200 XR, 2013 000DKDA00 000DNDA00 000DNDB00 / | 158 |
| SKI_DOO_EN_US | 08- Rear Suspension | Ski-Doo / 2013 / GSX / GSX LE 600HOE XP, 2013 000DDDA00 / 08- Rear Suspension | 158 |
| SKI_DOO_EN_US | 08- Rear Suspension | Ski-Doo / 2013 / GSX / GSX SE 600HOE, 2013 000DMDA00 000DMDB00 / 08- Rear Suspen | 158 |
| SKI_DOO_EN_US | 08- Rear Suspension | Ski-Doo / 2013 / MX Z / MXZ SPORT 550F XP, 2013 000UBDA00 000UBDB00 000UBDC00 / | 158 |
| SKI_DOO_EN_US | 08- Rear Suspension | Ski-Doo / 2013 / MX Z / MXZ SPORT 600 ACE (4-TEMPS) XP, 2013 000MSDA00 000MSDB0 | 158 |
| SKI_DOO_EN_US | 08- Rear Suspension | Ski-Doo / 2013 / MX Z / MXZ SPORT 600 XP, 2013 000BHDA00 000BHDB00 / 08- Rear Su | 158 |
| SKI_DOO_EN_US | 08- Rear Suspension _26M1421 | Ski-Doo / 2014 / MX Z / MXZ SPORT 550F XP, 2014 000UBEA00 000UBEB00 000UBEC00 / | 80 |
| SKI_DOO_EN_US | 08- Rear Suspension _26M1412 | Ski-Doo / 2014 / MX Z / MXZ SPORT 600 REV-XP, 2014 000BHEA00 000BHEB00 / 08- Rea | 80 |
| SKI_DOO_EN_US | 08- Rear Suspension _26M1427 | Ski-Doo / 2014 / MX Z / MXZ SPORT 600ACE XP, 2014 000MSEA00 000MSEB00 / 08- Rear | 80 |
| SKI_DOO_EN_US | 08- Rear Suspension _26M1513 | Ski-Doo / 2015 / MX Z / MXZ Sport 600 XP120, 2015 000BHFA00 000BHFB00 / 08- Rear | 77 |
| SKI_DOO_EN_US | 08- Rear Suspension _26M1531 | Ski-Doo / 2015 / MX Z / MXZ Sport 600ACE XS120, 2015 000UCFA00 000UCFB00 / 08- R | 77 |
| SKI_DOO_EN_US | 08- Rear Suspension - Package Sport | Ski-Doo / 2016 / MXZ Family / MXZ - 4-STROKE, 2016 000MAGA00 000MAGB00 000MKGA00 | 76 |
| SKI_DOO_EN_US | 08- Rear Suspension - Package Sport | Ski-Doo / 2016 / MXZ Family / MXZ 600 CARB 000BHGA00 000BHGB00 / 08- Rear Suspen | 76 |
