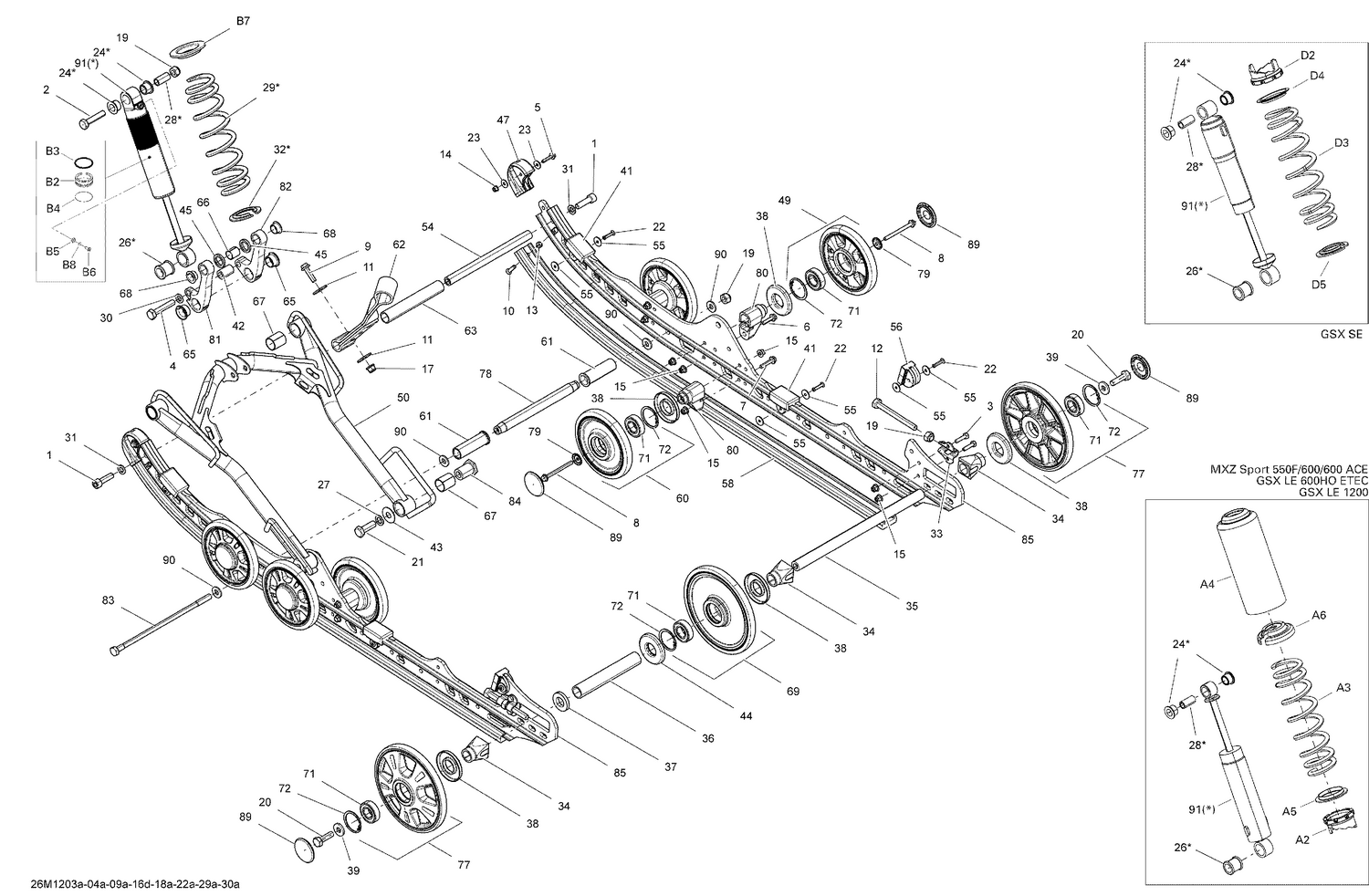

08- Rear Suspension Front Arm And Base
Parts (86)
| Ref | Part Number | Description |
|---|---|---|
| A2 | XXX | Not Available As Spare Parts |
| A3 | XXX | Not Available As Spare Parts |
| A4 | XXX | Not Available As Spare Parts |
| A5 | XXX | Not Available As Spare Parts |
| A6 | XXX | Not Available As Spare Parts |
| B2 | 503189309 | FREE PISTON - Call your local BRP dealership |
| B3 | 414888312 | O-Ring |
| B4 | 503189308 | Piston Ring |
| B5 | 505070398 | Air Valve |
| B6 | 505070399 | Screw |
| B7 | 414888316 | SPRING COLLAR - Call your local BRP dealership |
| B8 | 505070400 | O-Ring |
| D2 | XXX | Not Available As Spare Parts |
| D3 | XXX | Not Available As Spare Parts |
| D4 | XXX | Not Available As Spare Parts |
| 1 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip |
| 2 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 3 | 250000479 | HEX. SCREW CAP FULL THREAD M6 X 25 - Call your local BRP dealership |
| 4 | 207205544 | Hex. Screw M10 X 55, Scotch Grip |
| 5 | 207652544 | Hex. Flange Screw M5 X 25 |
| 6 | 250000522 | Hex Flange Screw M6 x 25 |
| 7 | 250000522 | Hex Flange Screw M6 x 25 |
| 8 | 250001027 | Hex. Flange Screw M6 X 70 This part replaces 250000475. |
| 9 | 207683044 | Hex. Flange Screw M8 X 30 |
| 10 | 208562531 | Phillips Screw M6 X 25 |
| 11 | 224081301 | Flat Washer |
| 12 | 230100054 | Hex Screw M10 x 100 |
| 13 | 232561414 | Elastic Stop Nut M6 |
| 14 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 15 | 250100130 | ELASTIC FLANGE NUT M6 - Call your local BRP dealership |
| 17 | 233281414 | Hex. Flange Elastic Nut M8 |
| 19 | 250100132 | ELASTIC LOCKING NUT M10 - Call your local BRP dealership |
| 20 | 250000019 | Hex. Screw With Nylon |
| 21 | 250000537 | Hex. Cap Screw M12 X 35 This part replaces 250000225. |
| 22 | 293150142 | Pop Rivet 3/16" |
| 23 | 391301600 | Washer |
| 24 | 503189117 | Urethane Bushing |
| 26 | 503189271 | Bushing |
| 27 | 503189276 | Washer |
| 28 | 503189282 | Bushing |
| 29 | 503191329 | Black, Spring |
| 30 | 503189564 | Washer |
| 31 | 503189564 | Washer |
| 32 | 503194270 | Spring Stopper This part replaces 503192029. |
| 33 | 503192583 | Tensioner This part replaces 503192814. |
| 34 | 503190428 | Rear Wheel Spacer |
| 35 | 503190429 | Rear Axle |
| 36 | 503196317 | Spacer This part replaces 503190430. |
| 37 | 503190432 | Washer |
| 38 | 503190434 | Labyrinth Seal |
| 39 | 503190439 | Washer |
| 41 | 503190576 | Rubber Stopper |
| 42 | 503190604 | Central Shock Axle |
| 43 | 503190656 | Washer |
| 44 | 503190682 | Labyrinth Seal |
| 45 | 503190694 | Plastic Spacer |
| 47 | 503191137 | Runner Protector |
| 49 | 503192794 | Black, Wheel Ass'y 141 mm This part replaces 503191151. |
| 50 | 503191579 | Front Arm Ass'y |
| 54 | 503191260 | Axle Strap |
| 55 | 503191273 | Washer |
| 56 | 503191291 | Rubber Stopper |
| 58 | 503191301 | Black Slider Shoe 120" |
| 60 | 503191316 | Black, Wheel Ass'y 141 mm |
| 61 | 503191351 | Center Bushing |
| 62 | 503192360 | Stopper Strap |
| 63 | 503191448 | Spacer |
| 65 | 503191552 | Bushing |
| 66 | 503191553 | Bushing |
| 67 | 503191554 | Bushing |
| 68 | 503191555 | Swivel Bushing |
| 69 | 503194202 | Black - Wheel Ass'y 180 mm This part replaces 503191559. |
| 71 | 503190396 | Ball Bearing |
| 72 | 415129371 | Retaining Ring |
| 77 | 503191742 | Black, Wheel Ass'y, 180 mm |
| 78 | 503191764 | Center Shaft |
| 79 | 503191820 | Wheel Cup M6 |
| 80 | 503193894 | Casted Support This part replaces 503193082. |
| 81 | 503191890 | LH Rocker Arm |
| 82 | 503191894 | RH Rocker Arm |
| 83 | 503191896 | BOLT M10 X 251MM - Call your local BRP dealership |
| 84 | 503191966 | Lower Axle |
| 85 | 503196633 | Suspension Rail 120 This part replaces 503192152. |
| 89 | 503192771 | Black, Wheel Cap |
| 90 | 732900049 | Washer |
| 91 | 503193534 | Central Shock This part replaces 503191791. |
