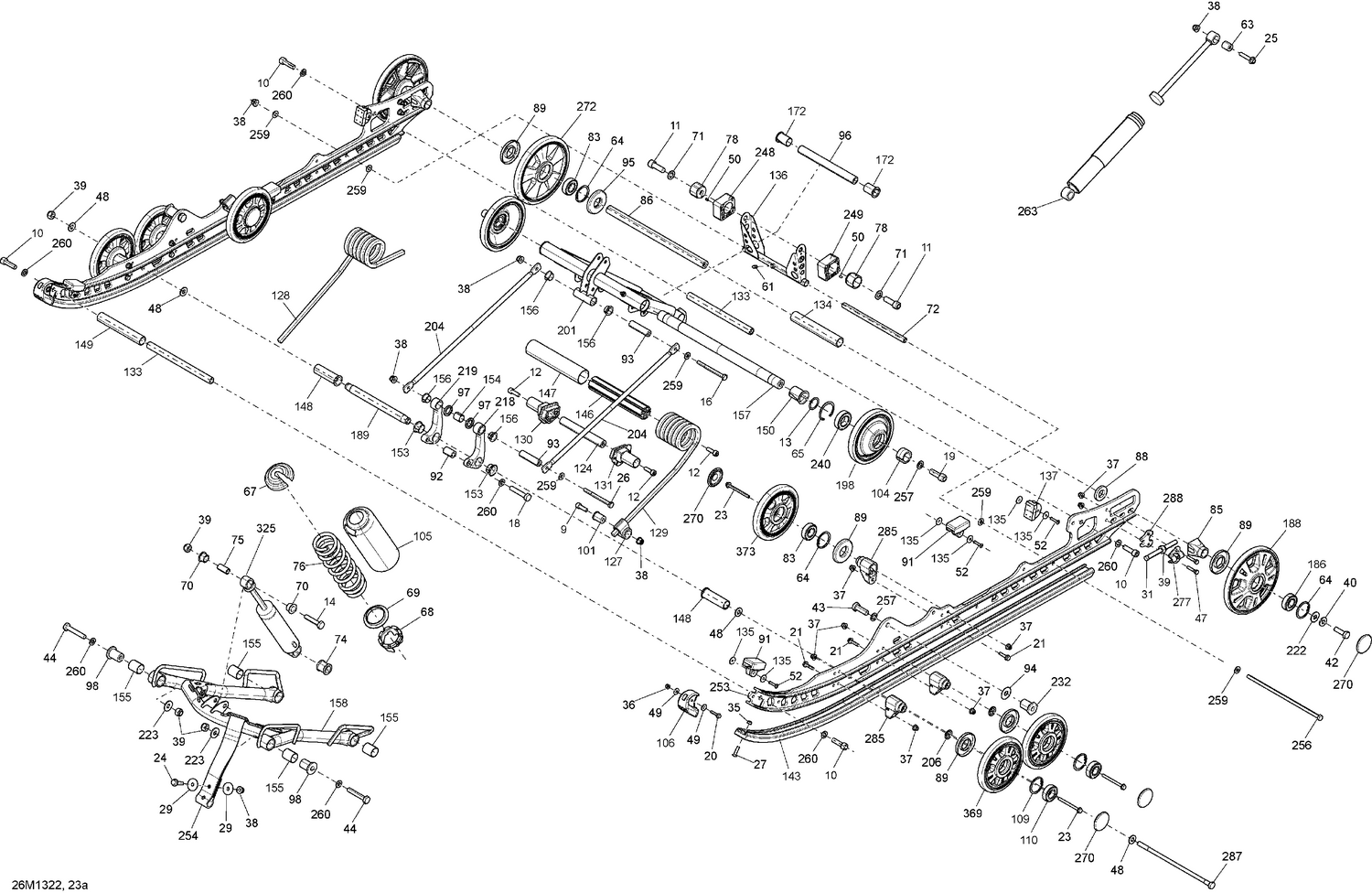

| Ref | Part Number | Description |
|---|
| 9 |
205082554 |
Socket Screw M8 X 25 |
| 10 |
205503554 |
Socket Head Screw M10 X 35 |
| 11 |
205523544 |
Socket Head Screw M12 X 35, Scotch Grip |
| 12 |
205582544 |
Socket Head Screw M8 X 25, Scotch Grip |
| 13 |
503190328 |
Washer |
| 14 |
207005044 |
Hex. Screw M10 X 1.5 X 50 |
| 16 |
207089044 |
Hex. Screw M8 X 90 |
| 18 |
207205544 |
Hex. Screw M10 X 55, Scotch Grip |
| 19 |
205523554 |
Socket Head Screw M12 X 35 |
| 20 |
207652544 |
Hex. Flange Screw M5 X 25 |
| 21 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 23 |
207667056 |
Hex. Flange Screw M6 X 70 |
| 24 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 25 |
207684044 |
Hex. Flange Screw M8 X 40 |
| 26 |
207089044 |
Hex. Screw M8 X 90 |
| 27 |
208562531 |
Phillips Screw M6 X 25 |
| 29 |
250200128 |
Flat Washer 8 mm |
| 31 |
230100054 |
Hex Screw M10 x 100 |
| 35 |
232561414 |
Elastic Stop Nut M6 |
| 36 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 37 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 38 |
233281466 |
Elastic Flange Nut M8 |
| 39 |
233601466 |
Elastic Locking Nut M10 |
| 40 |
234201474 |
Conical Spring Washer 10 mm |
| 42 |
250000019 |
Hex. Screw With Nylon |
| 43 |
250000537 |
Hex. Cap Screw M12 X 35 |
| 44 |
207006056 |
Hex. Cap Screw M10 X 60 This part replaces 250000357. |
| 47 |
207063054 |
Hex. Cap Screw M6 X 30 |
| 48 |
250200138 |
Washer |
| 49 |
250200140 |
Washer |
| 50 |
250400005 |
Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 52 |
293150142 |
Pop Rivet 3/16" |
| 61 |
408200700 |
Grease Fitting |
| 63 |
414936000 |
Bushing |
| 64 |
415129371 |
Retaining Ring |
| 65 |
415129371 |
Retaining Ring |
| 67 |
706200881 |
Spring Stopper |
| 68 |
505073625 |
Adjustment Cam This part replaces 505070150. |
| 69 |
503191872 |
Spring Guide |
| 70 |
503189117 |
Urethane Bushing |
| 71 |
503189148 |
Washer |
| 72 |
503189156 |
Pivot Arm Axle |
| 74 |
503189271 |
Bushing |
| 75 |
503189282 |
Bushing |
| 76 |
503191329 |
Black, Spring |
| 78 |
503189488 |
Block Guide |
| 83 |
503190396 |
Ball Bearing |
| 85 |
503190428 |
Rear Wheel Spacer |
| 86 |
503190429 |
Rear Axle |
| 88 |
503190432 |
Washer |
| 89 |
503190434 |
Labyrinth Seal |
| 91 |
503190576 |
Rubber Stopper |
| 92 |
503190604 |
Central Shock Axle |
| 93 |
503190643 |
Axle Bar (Long) |
| 94 |
503190656 |
Washer |
| 95 |
503190682 |
Labyrinth Seal |
| 96 |
503192330 |
Lower Shaft |
| 97 |
503190694 |
Plastic Spacer |
| 98 |
503190698 |
Axle |
| 101 |
861805547 |
Spring Support Kit This part replaces 503190754. |
| 104 |
503191099 |
Retaining Ring |
| 105 |
503193663 |
Protector This part replaces 503191126. |
| 106 |
503191137 |
Runner Protector |
| 109 |
415129371 |
Retaining Ring |
| 110 |
503190396 |
Ball Bearing |
| 124 |
503191178 |
Spring Cam Axe |
| 127 |
861805547 |
Spring Support Kit This part replaces 503191183. |
| 128 |
503191616 |
RH SPRING, SQUARE - Call your local BRP dealership |
| 129 |
503191617 |
LH SPRING, SQUARE - Call your local BRP dealership |
| 130 |
503191190 |
RH Spring Cam |
| 131 |
503191191 |
LH Spring Cam |
| 133 |
503191260 |
Axle Strap |
| 134 |
503196317 |
Spacer This part replaces 503190430. |
| 135 |
503191273 |
Washer |
| 136 |
503191302 |
Pivot Arm |
| 137 |
503191291 |
Rubber Stopper |
| 143 |
503191306 |
Black, Slider Shoe 137'' |
| 146 |
503191344 |
Spring Axle |
| 147 |
503191345 |
Plastic Bushing |
| 148 |
503191351 |
Center Bushing |
| 149 |
503191448 |
Spacer |
| 150 |
503191451 |
Cushion |
| 153 |
503191552 |
Bushing |
| 154 |
503191553 |
Bushing |
| 155 |
503191554 |
Bushing |
| 156 |
503191555 |
Swivel Bushing |
| 157 |
503191571 |
UPPER SHAFT - Call your local BRP dealership |
| 158 |
503191579 |
Front Arm Ass'y |
| 172 |
503191640 |
Cushion |
| 186 |
503190396 |
Ball Bearing |
| 188 |
503191627 |
Full Moon Wheel Ass'y, 180 mm |
| 189 |
503191764 |
Center Shaft |
| 198 |
503191739 |
WHEEL 144 MM ASS'Y - Call your local BRP dealership |
| 201 |
503191967 |
REAR ARM ASS'Y - Call your local BRP dealership |
| 204 |
503191974 |
ROD-THROTTLE - Call your local BRP dealership |
| 206 |
503191820 |
Wheel Cup M6 |
| 218 |
503191890 |
LH Rocker Arm |
| 219 |
503191894 |
RH Rocker Arm |
| 222 |
503191910 |
Washer |
| 223 |
503191926 |
Washer |
| 232 |
503191966 |
Lower Axle |
| 240 |
503193548 |
Ball Bearing This part replaces 503191982. |
| 248 |
503192300 |
RH Block, 4 Positions |
| 249 |
503192301 |
LH Block, 4 Positions |
| 253 |
503192318 |
RAIL_SUSPENSION 137 - Call your local BRP dealership |
| 254 |
503192360 |
Stopper Strap |
| 255 |
219704415 |
Hose 4.32Mm 3000Mm Long |
| 256 |
503192440 |
Bolt M8 X 248mm |
| 257 |
503192491 |
Washer |
| 259 |
503192494 |
Washer |
| 260 |
503192496 |
Washer |
| 263 |
503193192 |
Rear Shock HPG SEAL This part replaces 503191853. |
| 270 |
503192771 |
Black, Wheel Cap |
| 272 |
503194050 |
Black, Wheel Ass'y 180 mm This part replaces 503192778. |
| 277 |
503192583 |
Tensioner This part replaces 503192814. |
| 285 |
503193894 |
Casted Support This part replaces 503193082. |
| 287 |
503193227 |
Bolt M10 X 251MM |
| 288 |
503193250 |
Spacer |
| 325 |
503191590 |
Center Shock |
