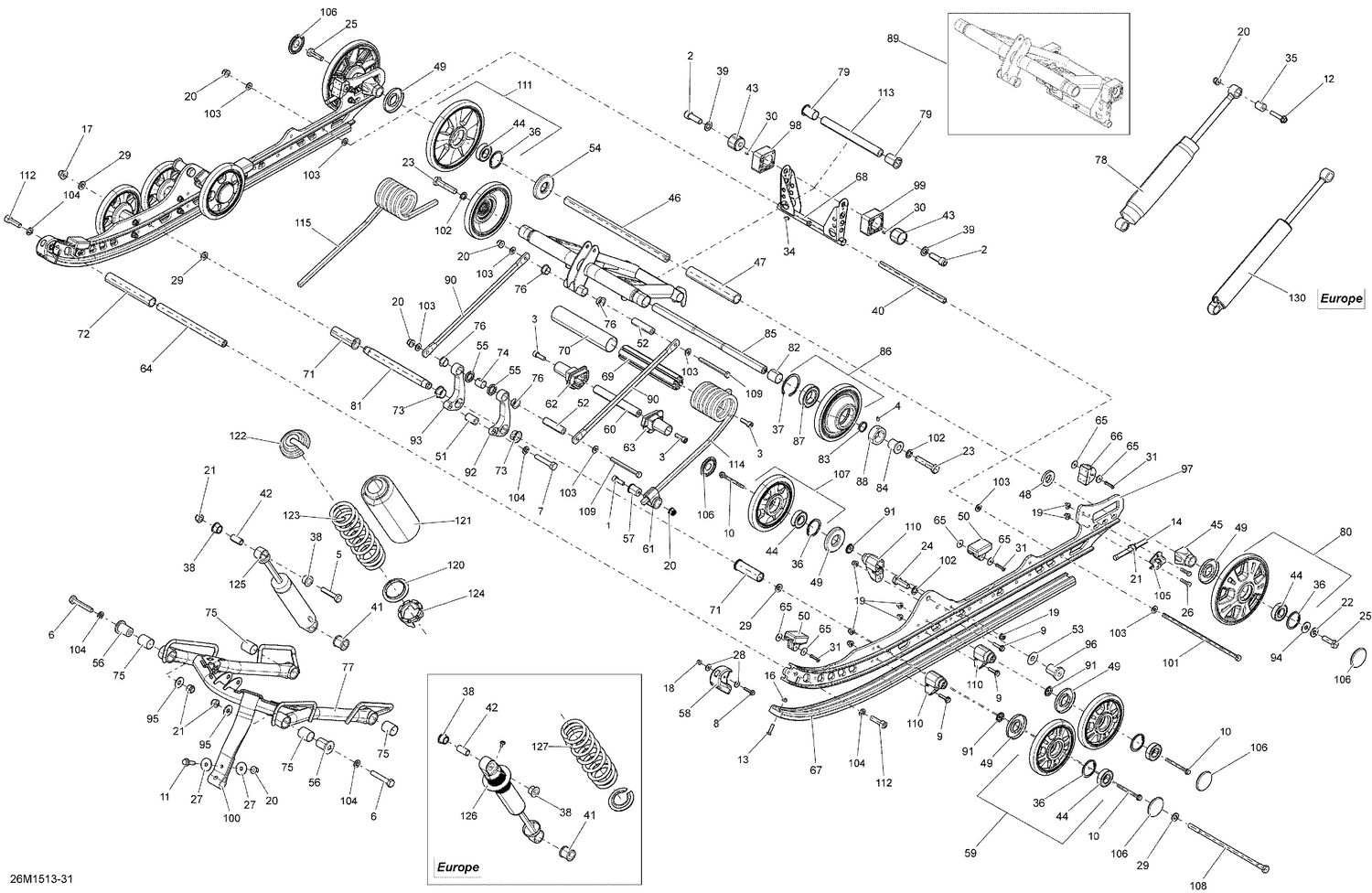

| Ref | Part Number | Description |
|---|
| 1 |
205082554 |
Socket Screw M8 X 25 |
| 2 |
205523554 |
Socket Head Screw M12 X 35 |
| 3 |
205582544 |
Socket Head Screw M8 X 25, Scotch Grip |
| 4 |
206260844 |
Socket Set Screw M6 X 8 |
| 5 |
207005044 |
Hex. Screw M10 X 1.5 X 50 |
| 6 |
207006056 |
Hex. Cap Screw M10 X 60 |
| 7 |
207205544 |
Hex. Screw M10 X 55, Scotch Grip |
| 8 |
207652544 |
Hex. Flange Screw M5 X 25 |
| 9 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 10 |
207667056 |
Hex. Flange Screw M6 X 70 |
| 11 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 12 |
207684044 |
Hex. Flange Screw M8 X 40 |
| 13 |
208562531 |
Phillips Screw M6 X 25 |
| 14 |
230100054 |
Hex Screw M10 x 100 |
| 16 |
232561434 |
Elastic Stop Nut M6 |
| 17 |
233201466 |
Flange Elastic Nut M10 |
| 18 |
233251434 |
Flange Elastic Nut M5 |
| 19 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 20 |
233281466 |
Elastic Flange Nut M8 |
| 21 |
233601466 |
Elastic Locking Nut M10 |
| 22 |
234201474 |
Conical Spring Washer 10 mm |
| 23 |
250000485 |
Hex. Cap Screw M12 X 60, Scotch Grip |
| 24 |
250000537 |
Hex. Cap Screw M12 X 35 |
| 25 |
250000592 |
Hex Cap Screw Nylon M10 x 35 |
| 26 |
250000619 |
Hex Screw M6 X 25 |
| 27 |
250200128 |
Flat Washer 8 mm |
| 28 |
250200140 |
Washer |
| 29 |
250200143 |
Flat Washer |
| 30 |
250400005 |
Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 31 |
293150013 |
Pop Rivet 3/16" |
| 34 |
408200700 |
Grease Fitting |
| 35 |
414936000 |
Bushing |
| 36 |
415129371 |
Retaining Ring |
| 37 |
415129598 |
Retaining Ring |
| 38 |
503189117 |
Urethane Bushing |
| 39 |
503189148 |
Washer |
| 40 |
503189156 |
Pivot Arm Axle |
| 41 |
503189271 |
Bushing |
| 42 |
503189282 |
Bushing |
| 43 |
503189488 |
Block Guide |
| 44 |
503190396 |
Ball Bearing |
| 45 |
503190428 |
Rear Wheel Spacer |
| 46 |
503190429 |
Rear Axle |
| 47 |
503196317 |
Spacer This part replaces 503190430. |
| 48 |
503190432 |
Washer |
| 49 |
503190434 |
Labyrinth Seal |
| 50 |
503190576 |
Rubber Stopper |
| 51 |
503190604 |
Central Shock Axle |
| 52 |
503190643 |
Axle Bar (Long) |
| 53 |
503190656 |
Washer |
| 54 |
503190682 |
Labyrinth Seal |
| 55 |
503190694 |
Plastic Spacer |
| 56 |
503190698 |
Axle |
| 57 |
861805547 |
Spring Support Kit This part replaces 503190754. |
| 58 |
503191137 |
Runner Protector |
| 59 |
503192794 |
Black, Wheel Ass'y 141 mm |
| 60 |
503191178 |
Spring Cam Axe |
| 61 |
861805547 |
Spring Support Kit This part replaces 503191183. |
| 62 |
503191190 |
RH Spring Cam |
| 63 |
503191191 |
LH Spring Cam |
| 64 |
503191260 |
Axle Strap |
| 65 |
503191273 |
Washer |
| 66 |
503191291 |
Rubber Stopper |
| 67 |
503191301 |
Black Slider Shoe 120" |
| 68 |
503191302 |
Pivot Arm |
| 69 |
503191344 |
Spring Axle |
| 70 |
503191345 |
Plastic Bushing |
| 71 |
503191351 |
Center Bushing |
| 72 |
503191448 |
Spacer |
| 73 |
503191552 |
Bushing |
| 74 |
503191553 |
Bushing |
| 75 |
503191554 |
Bushing |
| 76 |
503191555 |
Swivel Bushing |
| 77 |
503191579 |
Front Arm Ass'y |
| 78 |
503191582 |
Rear Shock |
| 79 |
503191640 |
Cushion |
| 80 |
503191742 |
Black, Wheel Ass'y, 180 mm |
| 81 |
503191764 |
Center Shaft |
| 82 |
503191773 |
Bushing |
| 83 |
503191774 |
Washer |
| 84 |
503191775 |
Bushing |
| 85 |
503191776 |
Upper Shaft |
| 86 |
503191777 |
Black Wheel Ass'y, 144 mm |
| 87 |
503191778 |
Ball Bearing |
| 88 |
503191782 |
Retaining Ring |
| 89 |
503191785 |
Rear Arm Ass'y |
| 90 |
503191802 |
Link Rod |
| 91 |
503191820 |
Wheel Cup M6 |
| 92 |
503191890 |
LH Rocker Arm |
| 93 |
503191894 |
RH Rocker Arm |
| 94 |
503191910 |
Washer |
| 95 |
503191926 |
Washer |
| 96 |
503191966 |
Lower Axle |
| 97 |
503193931 |
RUNNER 120'' - Call your local BRP dealership |
| 98 |
503192300 |
RH Block, 4 Positions |
| 99 |
503192301 |
LH Block, 4 Positions |
| 100 |
503192360 |
Stopper Strap |
| 101 |
503192440 |
Bolt M8 X 248mm |
| 102 |
503192491 |
Washer |
| 103 |
503192494 |
Washer |
| 104 |
503192496 |
Washer |
| 105 |
503192583 |
Tensioner |
| 106 |
503192771 |
Black, Wheel Cap |
| 107 |
503192794 |
Black, Wheel Ass'y 141 mm |
| 108 |
503193227 |
Bolt M10 X 251MM |
| 109 |
503193372 |
Screw M8 X 90 |
| 110 |
503193894 |
Casted Support |
| 111 |
503194050 |
Black, Wheel Ass'y 180 mm |
| 112 |
205503554 |
Socket Head Screw M10 X 35 |
| 113 |
503192330 |
Lower Shaft |
| 114 |
503191613 |
Black LH Spring, Square |
| 115 |
503191612 |
Black RH Spring, Square |
| 120 |
503191872 |
Spring Guide |
| 121 |
503193663 |
Protector |
| 122 |
706200881 |
Spring Stopper |
| 123 |
503191879 |
Black, Spring |
| 124 |
505073625 |
Adjustment Cam |
| 125 |
503191590 |
Center Shock |
| 126 |
503193534 |
Central Shock |
| 127 |
503191879 |
Black, Spring |
