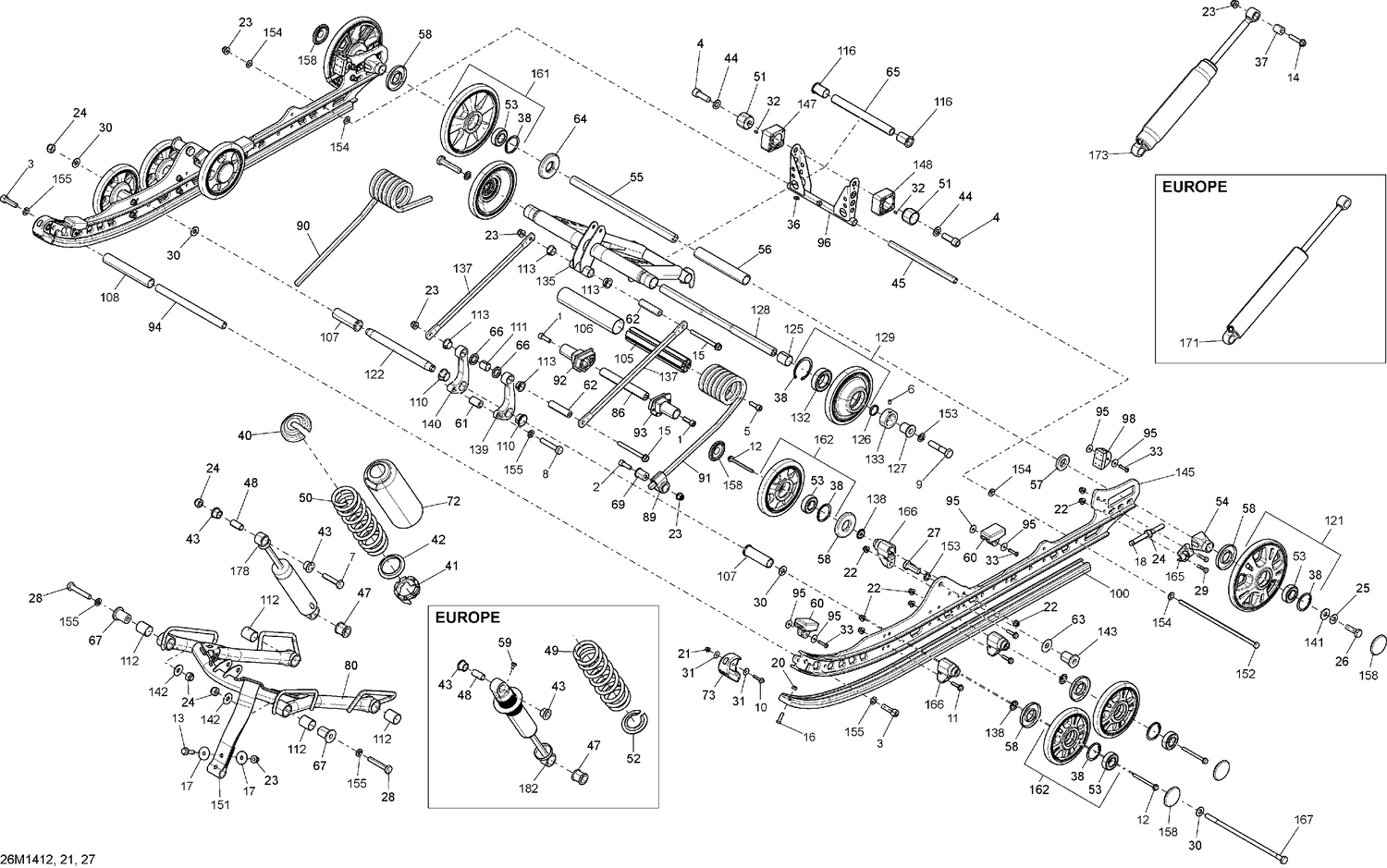

08- Rear Suspension _26M1427

08- Rear Suspension _26M1427

Parts (109)

RefPart NumberDescription
1 205582544 Socket Head Screw M8 X 25, Scotch Grip
2 205082554 Socket Screw M8 X 25
3 205503554 Socket Head Screw M10 X 35
4 205523554 Socket Head Screw M12 X 35
5 205582544 Socket Head Screw M8 X 25, Scotch Grip
6 206260844 Socket Set Screw M6 X 8
7 207005044 Hex. Screw M10 X 1.5 X 50
8 207205544 Hex. Screw M10 X 55, Scotch Grip
9 250000485 Hex. Cap Screw M12 X 60, Scotch Grip
10 207652544 Hex. Flange Screw M5 X 25
11 207662556 Hex. Flange Screw M6 X 25
12 207667056 Hex. Flange Screw M6 X 70
13 207683044 Hex. Flange Screw M8 X 30
14 207684044 Hex. Flange Screw M8 X 40
15 207688544 Hex. Flange Screw
16 208562531 Phillips Screw M6 X 25
17 250200128 Flat Washer 8 mm
18 230100054 Hex Screw M10 x 100
20 232561414 Elastic Stop Nut M6
21 233251434 Flange Elastic Nut M5 This part replaces 233251414.
22 233261466 Hex. Flange Elastic Nut M6
23 233281466 Elastic Flange Nut M8
24 233601466 Elastic Locking Nut M10
25 250200141 Conical Spring Washer M10
26 250000592 Hex Cap Screw Nylon M10 x 35
27 250000537 Hex. Cap Screw M12 X 35
28 207006056 Hex. Cap Screw M10 X 60 This part replaces 250000357.
29 250000619 Hex Screw M6 X 25
30 250200138 Washer
31 250200140 Washer
32 250400005 Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership
33 293150013 Pop Rivet 3/16"
36 408200700 Grease Fitting
37 414936000 Bushing
38 415129598 Retaining Ring
43 503189117 Urethane Bushing
44 503189148 Washer
45 503189156 Pivot Arm Axle
47 503189271 Bushing
48 503189282 Bushing
51 503189488 Block Guide
53 503190396 Ball Bearing
54 503190428 Rear Wheel Spacer
55 503190429 Rear Axle
56 503196317 Spacer This part replaces 503190430.
57 503190432 Washer
58 503190434 Labyrinth Seal
60 503190576 Rubber Stopper
61 503190604 Central Shock Axle
62 503190643 Axle Bar (Long)
63 503190656 Washer
64 503190682 Labyrinth Seal
65 503192330 Lower Shaft
66 503190694 Plastic Spacer
67 503190698 Axle
69 861805547 Spring Support Kit This part replaces 503190754.
73 503191137 Runner Protector
80 503191579 Front Arm Ass'y
86 503191178 Spring Cam Axe
89 861805547 Spring Support Kit This part replaces 503191183.
90 503191613 Black LH Spring, Square
91 503191612 Black RH Spring, Square
92 503191190 RH Spring Cam
93 503191191 LH Spring Cam
94 503191260 Axle Strap
95 503191273 Washer
96 503191302 Pivot Arm
98 503191291 Rubber Stopper
100 503191301 Black Slider Shoe 120"
105 503191344 Spring Axle
106 503191345 Plastic Bushing
107 503191351 Center Bushing
108 503191448 Spacer
110 503191552 Bushing
111 503191553 Bushing
112 503191554 Bushing
113 503191555 Swivel Bushing
116 503191640 Cushion
121 503191742 Black, Wheel Ass'y, 180 mm
122 503191764 Center Shaft
125 503191773 Bushing
126 503191774 Washer
127 503191775 Bushing
128 503191776 Upper Shaft
129 503191777 Black Wheel Ass'y, 144 mm
132 503191778 Ball Bearing
133 503191782 Retaining Ring
135 503191785 Rear Arm Ass'y
137 503191802 Link Rod
138 503191820 Wheel Cup M6
139 503191890 LH Rocker Arm
140 503191894 RH Rocker Arm
141 503191910 Washer
142 503191926 Washer
143 503191966 Lower Axle
145 503196633 Suspension Rail 120 This part replaces 503192152.
147 503192300 RH Block, 4 Positions
148 503192301 LH Block, 4 Positions
151 503192360 Stopper Strap
152 503192440 Bolt M8 X 248mm
153 503192491 Washer
154 503192494 Washer
155 503192496 Washer
158 503192771 Black, Wheel Cap
161 503194050 Black, Wheel Ass'y 180 mm This part replaces 503192778.
162 503192794 Black, Wheel Ass'y 141 mm
165 503192583 Tensioner
166 503193894 Casted Support This part replaces 503193082.
167 503193227 Bolt M10 X 251MM
