207182584
Hex. Screw M8 X 25

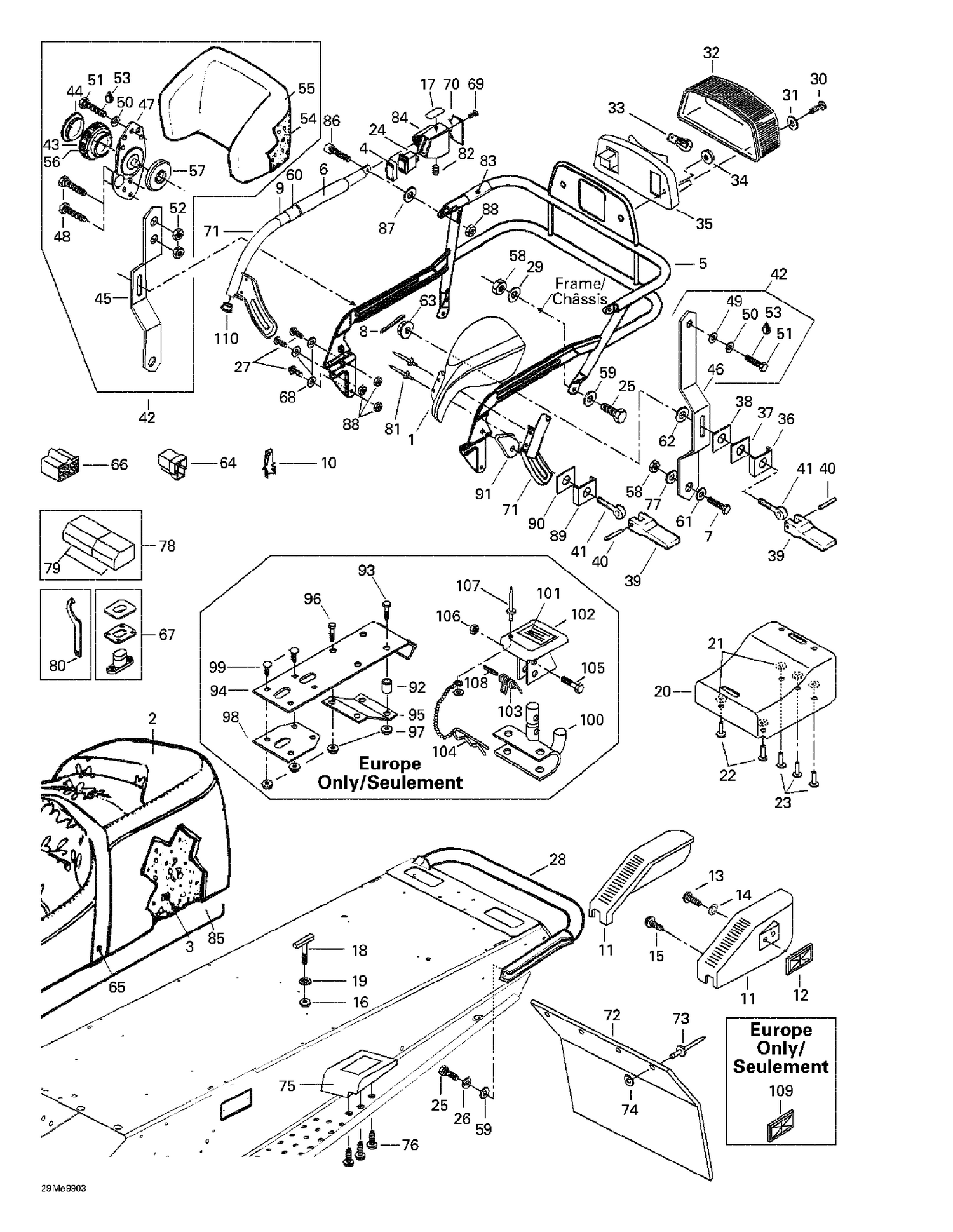

Схема сборки, где используется деталь
Used in (12 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| SKI_DOO_EN_US | 09- Seat And Accessories | Ski-Doo / 1999 / Grand Touring / Grand Touring 500/583, 1999 / 09- Seat And Acce | 7 |
| SKI_DOO_EN_US | 09- Luggage Rack, Hitch | Ski-Doo / 1999 / Grand Touring / Grand Touring 700, 1999 / 09- Luggage Rack, Hit | 5 |
| SKI_DOO_EN_US | 09- Luggage Rack, Hitch | Ski-Doo / 2000 / Grand Touring / Grand Touring 600, 2000 / 09- Luggage Rack, Hit | 5 |
| SKI_DOO_EN_US | 09- Luggage Rack, Hitch | Ski-Doo / 2000 / Grand Touring / Grand Touring 700, 2000 / 09- Luggage Rack, Hit | 5 |
| SKI_DOO_EN_US | 09- Luggage Rack, Hitch | Ski-Doo / 2001 / Grand Touring / Grand Touring 500/600/700, 2001 / 09- Luggage R | 25 |
| SKI_DOO_EN_US | 09- Seat, Backrest And Accessories | Ski-Doo / 2001 / Grand Touring / Grand Touring 800 SE, 2001 / 09- Seat, Backrest | 34 |
| SKI_DOO_EN_US | 09- Luggage Rack | Ski-Doo / 2002 / Grand Touring / Grand Touring 500/600/700/800, 2002 / 09- Lugga | 65 |
| SKI_DOO_EN_US | 09- Seat, Backrest | Ski-Doo / 2003 / Grand Touring / Grand Touring 500/600/700, 2003 / 09- Seat, Bac | 35 |
| SKI_DOO_EN_US | 09- Seat (GT) | Ski-Doo / 2004 / Legend / Legend 500 SS, 2004 / 09- Seat (GT) | 39 |
| SKI_DOO_EN_US | 09- Seat (2 Passengers) | Ski-Doo / 2004 / Legend / Legend 600 HO SDI, 2004 / 09- Seat (2 Passengers) | 39 |
| SKI_DOO_EN_US | 09- Seat (2 Passengers) | Ski-Doo / 2004 / Legend / Legend V-1000, 2004 / 09- Seat (2 Passengers) | 40 |
| SKI_DOO_EN_US | 09- Seat GT | Ski-Doo / 2005 / Legend / Legend V-1000, 2005 / 09- Seat GT | 40 |
