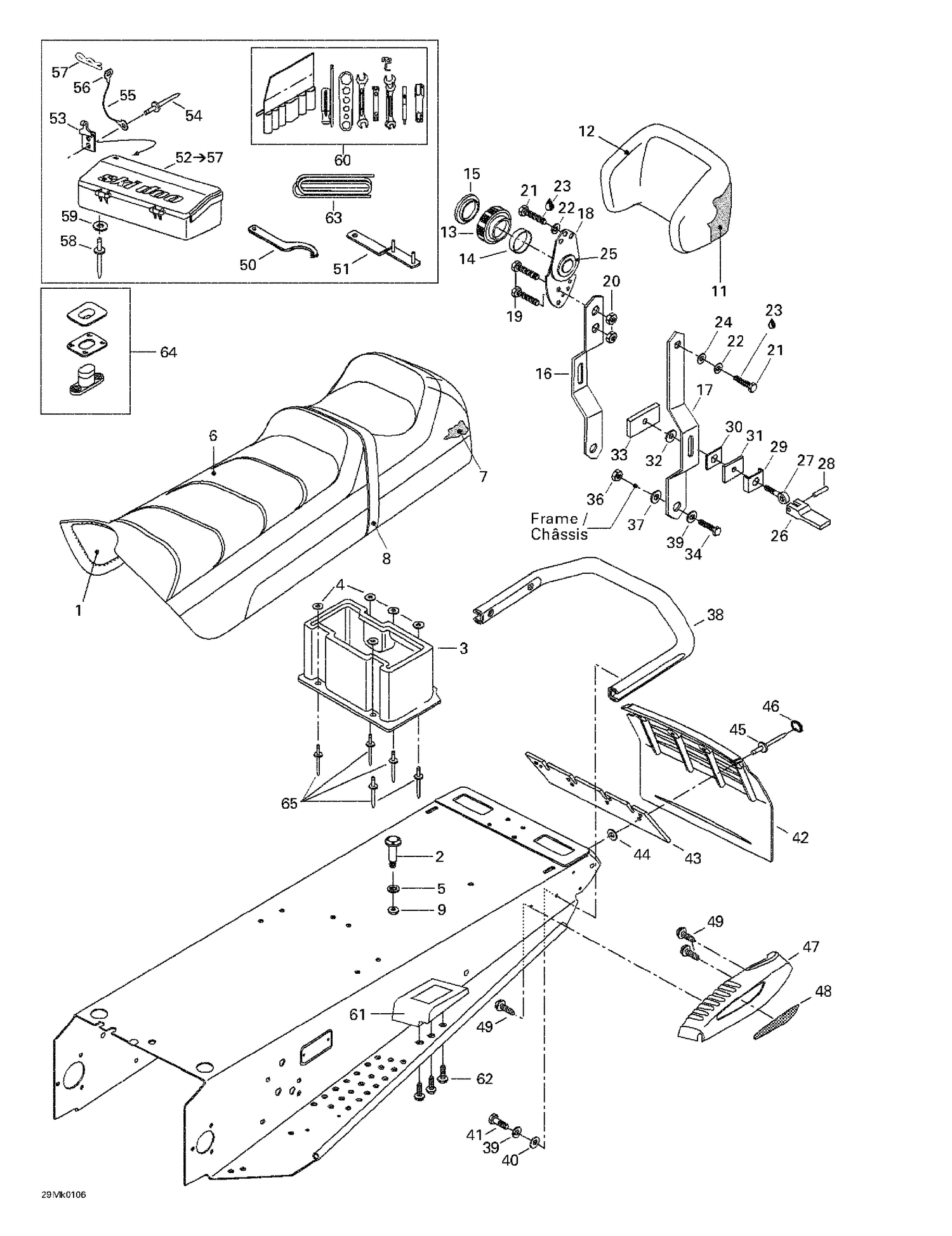

| Ref | Part Number | Description |
|---|
| 1 |
510003589 |
Sub-Seat |
| 3 |
572106300 |
Rear Trunk, Se-Air |
| 4 |
517297900 |
WASHER - Call your local BRP dealership |
| 5 |
732610072 |
Push Nut |
| 6 |
510003837 |
Seat Cover |
| 7 |
510003591 |
Seat Foam |
| 8 |
415095600 |
Seat Belt |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
414821200 |
Backrest Foam |
| 12 |
510003782 |
Backrest Cover |
| 13 |
414820900 |
TILLER HANDLE - Call your local BRP dealership |
| 14 |
415015500 |
STRIP - Call your local BRP dealership |
| 15 |
414821000 |
Cap |
| 16 |
517296400 |
RH Arm |
| 17 |
517296500 |
LH Arm |
| 18 |
414813300 |
Recliner |
| 19 |
207182544 |
Hex. Screw M8 X 25 |
| 20 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 21 |
207182044 |
Hex. Screw M8 X 20 |
| 22 |
234181401 |
Lock Washer 8 mm |
| 23 |
293800060 |
Loctite 243, 10 ml |
| 24 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 25 |
517250500 |
Cap |
| 26 |
572038200 |
Lock Lever |
| 27 |
517257600 |
Eye Bolt |
| 28 |
414821400 |
Pin |
| 29 |
517257300 |
Guide |
| 30 |
317251300 |
Spacer |
| 31 |
570027400 |
Rubber Shim |
| 32 |
414819500 |
Washer |
| 33 |
517250000 |
Nut |
| 34 |
207182584 |
Hex. Screw M8 X 25 |
| 35 |
234081670 |
Stainless Steel Flat Washer 8 mm |
| 36 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 37 |
414819600 |
Washer |
| 38 |
517272510 |
Rear Bumper |
| 39 |
234181401 |
Lock Washer 8 mm |
| 40 |
234081410 |
Flat Washer 8 mm |
| 41 |
207182044 |
Hex. Screw M8 X 20 |
| 42 |
520000229 |
SNOW GUARD - Call your local BRP dealership |
| 43 |
572108200 |
REINFORCEMENT - Call your local BRP dealership |
| 44 |
517225900 |
Flat Washer |
| 45 |
293150100 |
Pop Rivet 3/16" This part replaces 390908000. |
| 46 |
415073300 |
Cap |
| 47 |
572103900 |
RH Moulding |
| 48 |
516000237 |
RH Reflector, Red |
| 49 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 50 |
529000035 |
Adjustment Wrench This part replaces 529032900. |
| 51 |
520000126 |
Adjustment Wrench |
| 53 |
517168500 |
Latch |
| 54 |
Not |
Available As Spare Part - Pop Rivet |
| 55 |
Not |
Available As Spare Part - Steel Wire |
| 56 |
561502800 |
Terminal Ring |
| 57 |
414112400 |
HAIR PIN - Call your local BRP dealership |
| 58 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 59 |
517124300 |
Washer |
| 60 |
529035592 |
Tool Kit (Not Shown) |
| 61 |
572088700 |
RH Footrest |
| 62 |
243141630 |
Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 63 |
219704403 |
Was 412500100 Rope-Starter |
| 64 |
414728000 |
SEAT BUCKLE - Call your local BRP dealership |
| 516000238 |
LH |
Reflector, Red 516000238 |
| 516000238 |
Réflecteur |
GA, Rouge 516000238 |
| 516000241 |
Réflecteur |
DR, Jaune, Europe 516000241 |
| 516000241 |
RH |
Reflector, Yellow, Europe 516000241 |
| 516000242 |
LH |
Reflector, Yellow, Europe 516000242 |
| 516000242 |
Réflecteur |
GA, Jaune, Europe 516000242 |
| 572088800 |
LH |
Footrest 572088800 |
| 572088800 |
Repose-Pieds |
GA 572088800 |
| 572104000 |
Enjoliveur |
GA 572104000 |
| 572104000 |
LH |
Moulding 572104000 |
