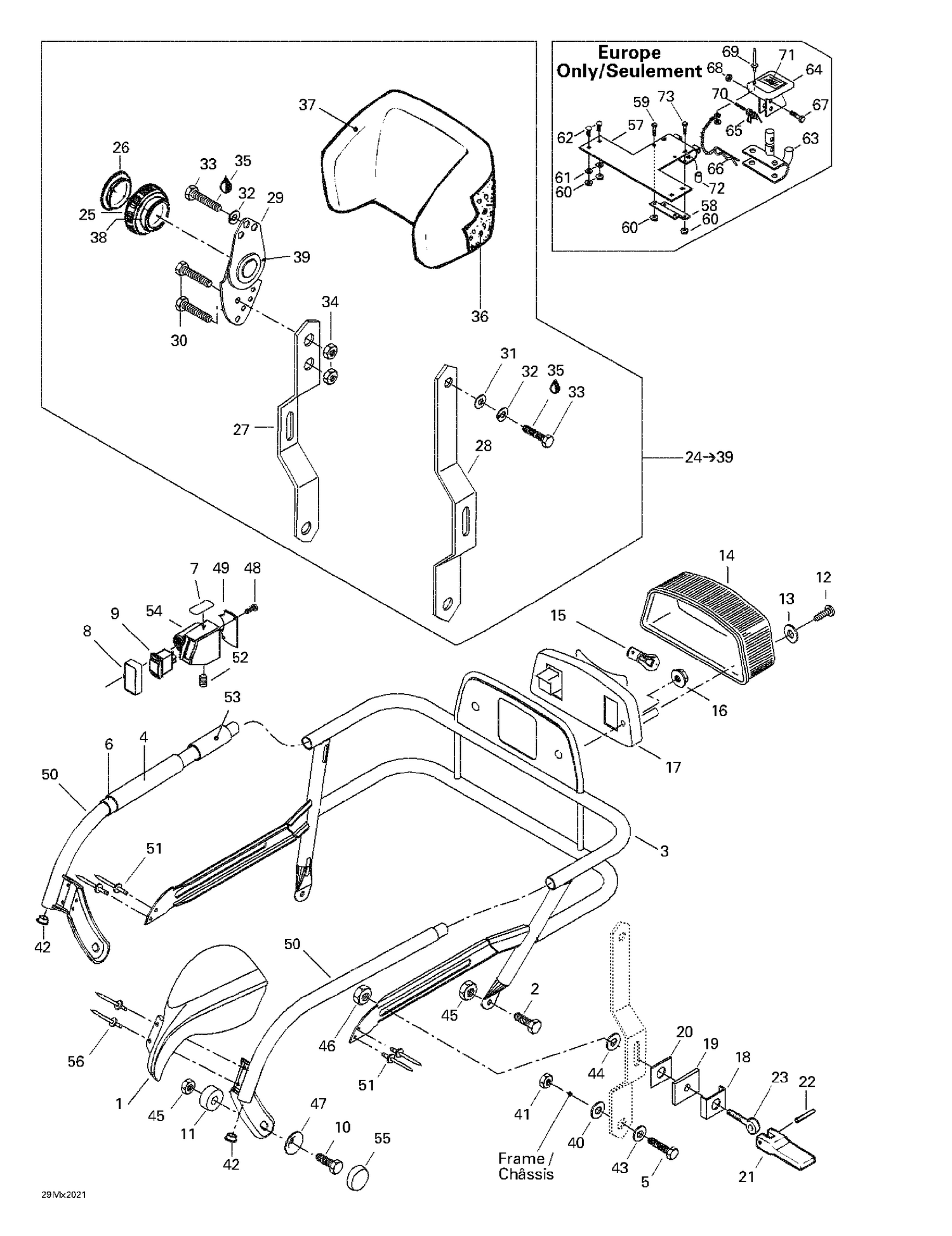

09- Luggage Rack, Hitch
Parts (77)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572089400 | RH Protector |
| 2 | 207182044 | Hex. Screw M8 X 20 |
| 3 | 511000126 | Rack Ass'y |
| 4 | 415050200 | LH Grip, 370 mm |
| 5 | 207182584 | Hex. Screw M8 X 25 |
| 6 | 414988700 | Reflective Sheet |
| 7 | 418001800 | HEAT GRIP DECAL - Call your local BRP dealership |
| 8 | 511000002 | Switch Protector |
| 9 | 511000001 | Rocker Switch |
| 10 | 207084044 | Hex. Screw M8 X 40 |
| 11 | 511000114 | Spacer |
| 12 | 209632540 | Phillips Tapping Screw M3.9 X 25 |
| 13 | 414516400 | Washer - Call your local BRP dealership |
| 14 | 414513700 | Lens |
| 15 | 520000758 | Bulb This part replaces 410504000. |
| 16 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 17 | 515175405 | Lamp Housing |
| 18 | 517257300 | Guide |
| 19 | 570027400 | Rubber Shim |
| 20 | 517251300 | SPACER - Call your local BRP dealership |
| 21 | 572038200 | Lock Lever |
| 22 | 414821400 | Pin |
| 23 | 517257600 | Eye Bolt |
| 25 | 414820900 | TILLER HANDLE - Call your local BRP dealership |
| 26 | 414821000 | Cap |
| 27 | 517296400 | RH Arm |
| 28 | 517296500 | LH Arm |
| 29 | 414813300 | Recliner |
| 30 | 207182544 | Hex. Screw M8 X 25 |
| 31 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 32 | 234181401 | Lock Washer 8 mm |
| 33 | 207182044 | Hex. Screw M8 X 20 |
| 34 | 232581414 | Hex. Elastic Stop Nut M8 |
| 35 | 293800060 | Loctite 243, 10 ml |
| 36 | 414821200 | Backrest Foam |
| 37 | 510003782 | Backrest Cover |
| 38 | 415015500 | STRIP - Call your local BRP dealership |
| 39 | 517250500 | Cap |
| 40 | 414819600 | Washer |
| 41 | 232581414 | Hex. Elastic Stop Nut M8 |
| 42 | 572110800 | CAP, BLACK - Call your local BRP dealership |
| 43 | 234081670 | Stainless Steel Flat Washer 8 mm |
| 44 | 414819500 | Washer |
| 45 | 233281414 | Hex. Flange Elastic Nut M8 |
| 46 | 517250000 | Nut |
| 47 | 705007171 | Cup This part replaces 506115800. |
| 48 | 732601255 | Screw |
| 49 | 572089300 | Plate |
| 50 | 511000108 | RH Arm |
| 51 | 390403600 | Pop Rivet 3/16 |
| 52 | 206580890 | Pressure Screw M8 X 8 |
| 53 | 415050400 | Grip, Short, 60 mm |
| 54 | 572089200 | Switch Housing |
| 55 | 572045900 | CAP - Call your local BRP dealership |
| 56 | 390906800 | Pop Rivet 3/16" |
| 57 | 511000065 | Fixation (Europe) |
| 58 | 517223500 | Reinforcement |
| 59 | 207162044 | Hex. Screw M6 X 20 |
| 60 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 61 | 224061201 | Flat Washer |
| 62 | 207762044 | Carriage Bolt M6 X 20 |
| 63 | 517199300 | Hitch |
| 64 | 517152700 | Hitch Protector |
| 65 | 517152800 | SPRING - Call your local BRP dealership |
| 66 | 114045200 | Hair Pin |
| 67 | 207063044 | Hex. Screw M6 X 30 |
| 68 | 232561414 | Elastic Stop Nut M6 |
| 69 | 390409400 | RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership |
| 70 | 732804000 | SPRING PIN M3 X 24 - Call your local BRP dealership |
| 71 | 414998500 | Instruction Label (Hitch) |
| 72 | 517191700 | SPACER - Call your local BRP dealership |
| 415050300 | Poignée | DR, 250 mm 415050300 |
| 415050300 | RH | Grip, 250 mm 415050300 |
| 511000111 | Bras | De Suspension Avant GA 511000111 |
| 511000111 | LH | Arm 511000111 |
| 572089500 | LH | Protector 572089500 |
| 572089500 | Protecteur | GA 572089500 |
