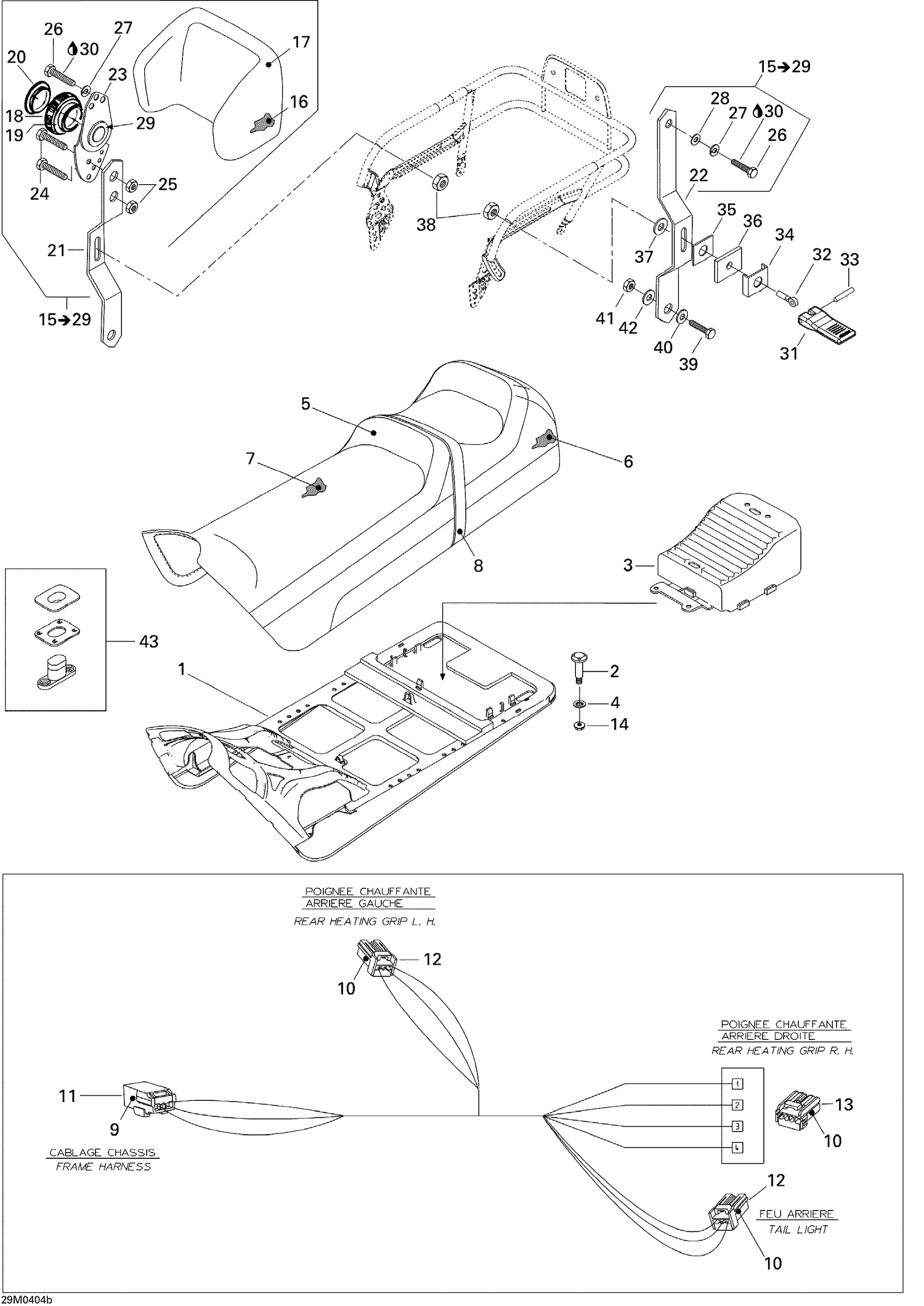

09- Seat (GT)
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510003739 | Sub-Seat |
| 3 | 510003751 | Rear Trunk |
| 4 | 732610072 | Push Nut |
| 6 | 510003741 | Seat Foam, Side |
| 7 | 510004267 | Seat Foam |
| 8 | 510003753 | Seat Belt |
| 9 | 515175232 | Male Terminal |
| 10 | 515175231 | Female Terminal |
| 11 | 515175494 | Male Housing, 3 Circuits |
| 12 | 515175495 | Female Housing, 3 Circuits |
| 13 | Not | Available As Spare Part - Female Terminal Housing (4 Circuits) |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 16 | 414821200 | Backrest Foam |
| 17 | 510004094 | Backrest Cover |
| 18 | 414820900 | TILLER HANDLE - Call your local BRP dealership |
| 19 | 415015500 | STRIP - Call your local BRP dealership |
| 20 | 414821000 | Cap |
| 21 | 517296400 | RH Arm |
| 22 | 517296500 | LH Arm |
| 23 | 414813300 | Recliner |
| 24 | 207182544 | Hex. Screw M8 X 25 |
| 25 | 232581414 | Hex. Elastic Stop Nut M8 |
| 26 | 207182044 | Hex. Screw M8 X 20 |
| 27 | 234181401 | Lock Washer 8 mm |
| 28 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 29 | 517250500 | Cap |
| 30 | 293800060 | Loctite 243, 10 ml |
| 31 | 572038200 | Lock Lever |
| 32 | 517250100 | EYE BOLT - Call your local BRP dealership |
| 33 | 414821400 | Pin |
| 34 | 517257300 | Guide |
| 35 | 517251300 | SPACER - Call your local BRP dealership |
| 36 | 570027400 | Rubber Shim |
| 37 | 414819500 | Washer |
| 38 | 517250000 | Nut |
| 39 | 207182584 | Hex. Screw M8 X 25 |
| 40 | 234081670 | Stainless Steel Flat Washer 8 mm |
| 41 | 232581414 | Hex. Elastic Stop Nut M8 |
| 42 | 414819600 | Washer |
