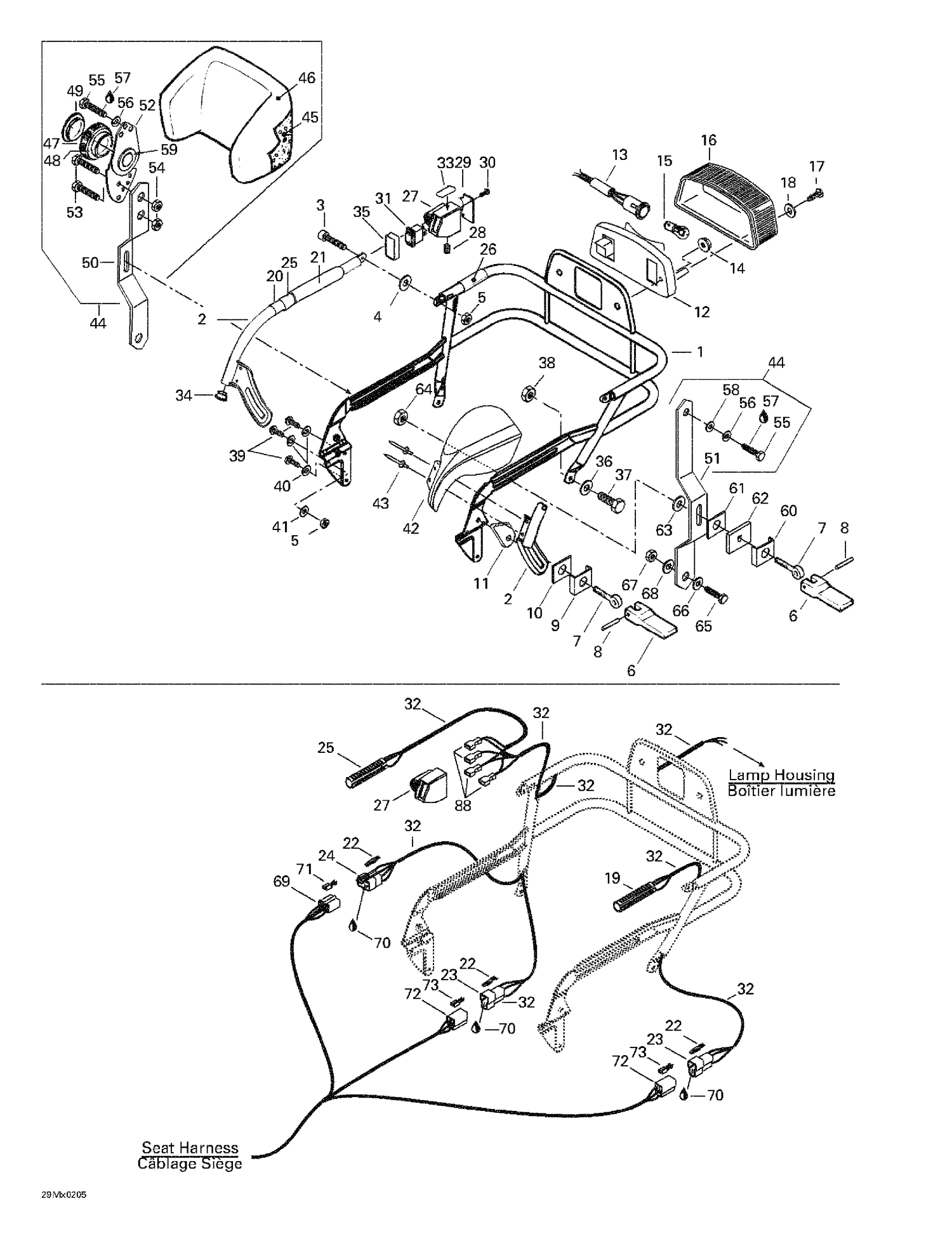

| Ref | Part Number | Description |
|---|
| 1 |
511000124 |
Rack Ass’Y |
| 2 |
511000012 |
RH Arm, Rack |
| 3 |
205061644 |
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 4 |
234062100 |
Flat Washer 6 mm |
| 5 |
232561414 |
Elastic Stop Nut M6 |
| 6 |
572038200 |
Lock Lever |
| 7 |
517257600 |
Eye Bolt |
| 8 |
414821400 |
Pin |
| 9 |
517290000 |
Guide |
| 10 |
570063800 |
Outer Spacer |
| 11 |
572088900 |
Spacer Block |
| 12 |
515175397 |
LAMP HOUSING - Call your local BRP dealership |
| 13 |
511000198 |
Socket |
| 14 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 15 |
520000758 |
Bulb This part replaces 410504000. |
| 16 |
414513700 |
Lens |
| 17 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 18 |
414516400 |
Washer - Call your local BRP dealership |
| 19 |
515175710 |
Heater |
| 20 |
414988700 |
Reflective Sheet |
| 21 |
415050200 |
LH Grip, 370 mm |
| 22 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 23 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 24 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| 25 |
515175709 |
Heater with Terminal |
| 26 |
415050400 |
Grip, Short, 60 mm |
| 27 |
572089200 |
Switch Housing |
| 28 |
206580890 |
Pressure Screw M8 X 8 |
| 29 |
572089300 |
Plate |
| 30 |
732601255 |
Screw |
| 31 |
511000001 |
Rocker Switch |
| 32 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 33 |
418001800 |
HEAT GRIP DECAL - Call your local BRP dealership |
| 34 |
572110800 |
CAP, BLACK - Call your local BRP dealership |
| 35 |
511000002 |
Switch Protector |
| 36 |
234081410 |
Flat Washer 8 mm |
| 37 |
207182044 |
Hex. Screw M8 X 20 |
| 38 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 39 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 40 |
234161601 |
Lock Washer Helical M6 |
| 41 |
391302100 |
FLAT WASHER - Call your local BRP dealership |
| 42 |
572089400 |
RH Protector |
| 43 |
293150104 |
Pop Rivet 3/16" This part replaces 390907700. |
| 45 |
414821200 |
Backrest Foam |
| 46 |
510003967 |
Backrest Cover |
| 47 |
414820900 |
TILLER HANDLE - Call your local BRP dealership |
| 48 |
415015500 |
STRIP - Call your local BRP dealership |
| 49 |
414821000 |
Cap |
| 50 |
517296400 |
RH Arm |
| 51 |
517296500 |
LH Arm |
| 52 |
414813300 |
Recliner |
| 53 |
207182544 |
Hex. Screw M8 X 25 |
| 54 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 55 |
207182044 |
Hex. Screw M8 X 20 |
| 56 |
234181401 |
Lock Washer 8 mm |
| 57 |
293800060 |
Loctite 243, 10 ml |
| 58 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 59 |
517250500 |
Cap |
| 60 |
517257300 |
Guide |
| 61 |
517251300 |
SPACER - Call your local BRP dealership |
| 62 |
570027400 |
Rubber Shim |
| 63 |
414819500 |
Washer |
| 64 |
517250000 |
Nut |
| 65 |
207182584 |
Hex. Screw M8 X 25 |
| 66 |
234081670 |
Stainless Steel Flat Washer 8 mm |
| 67 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 68 |
414819600 |
Washer |
| 69 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
| 70 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 71 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership This part replaces 409205300. |
| 72 |
409204300 |
Female Housing |
| 415050300 |
Poignée |
DR, 250 mm 415050300 |
| 415050300 |
RH |
Grip, 250 mm 415050300 |
| 517300900 |
Bras |
GA, Porte-Bagage 517300900 |
| 517300900 |
LH |
Am, Rack 517300900 |
| 572089500 |
LH |
Protector 572089500 |
| 572089500 |
Protecteur |
GA 572089500 |
