1623-031
SCREW,SELF TAP-TSTRH #10-12X1.00 Price: $1.99

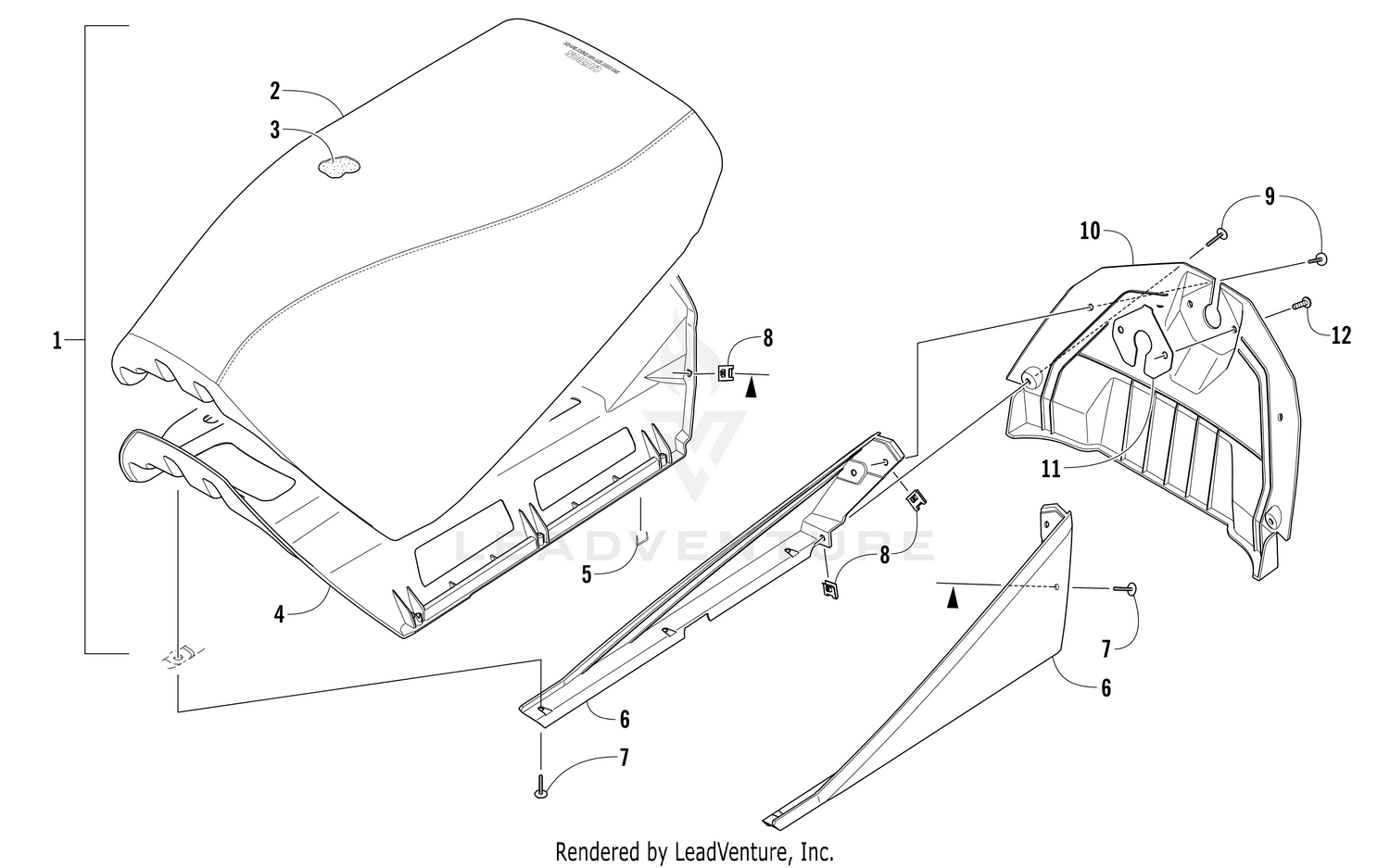

Схема сборки, где используется деталь
Used in (7 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| ARC | SEAT ASSEMBLY [103257] | Arctic Cat / SNOWMOBILE / 2016 / 2016 BEARCAT 7000 XT GROOMER SPECIAL ORANGE INT | 7 |
| ARC | HOOD ASSEMBLY [102800] | Arctic Cat / SNOWMOBILE / 2016 / 2016 PANTERA 7000 BLACK [S2016PTUTOUSB] / HOOD | 6 |
| ARC | STEERING SUPPORT ASSEMBLY [102666] | Arctic Cat / SNOWMOBILE / 2016 / 2016 PANTERA 7000 LTD BLACK EARLY BUILD [S2016P | 17 |
| ARC | STEERING SUPPORT ASSEMBLY [102705] | Arctic Cat / SNOWMOBILE / 2016 / 2016 PANTERA 7000 LTD BLACK INTERNATIONAL [S201 | 17 |
| ARC | HOOD ASSEMBLY [103189] | Arctic Cat / SNOWMOBILE / 2016 / 2016 XF 7000 CROSSTOUR ORANGE INTERNATIONAL [S2 | 6 |
| ARC | FRONT BUMPER AND FRAME ASSEMBLY [103646] | Arctic Cat / SNOWMOBILE / 2016 / 2016 XF 8000 HIGH COUNTRY LTD ES 141 BLACK INTE | 37 |
| ARC | HOOD ASSEMBLY [103233] | Arctic Cat / SNOWMOBILE / 2016 / 2016 ZR 7000 LTD 137 BLACK [S2016ZXULEUSB] / HO | 6 |
