Home / POWERSPORTS / ROV / 2015 / 2015 PROWLER 500 HDX INTERNATIONAL RED [U2015P5K4COSR] / FRAME AND RELATED PARTS [300428]

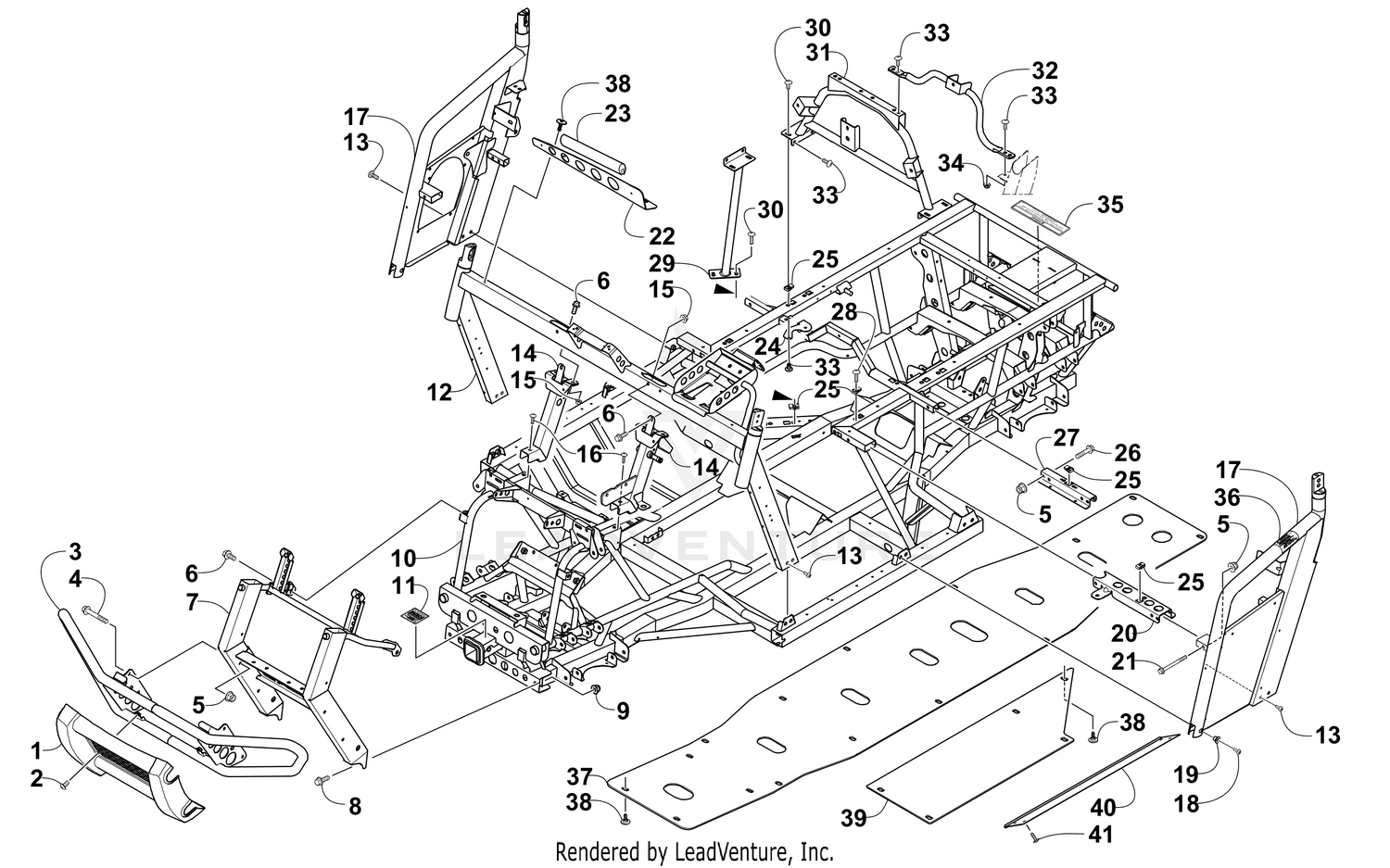

FRAME AND RELATED PARTS [300428]

FRAME AND RELATED PARTS [300428]

Parts (45)

RefPart NumberDescription
1 2406-713 Fascia, Bumper - Front Price: $60.95
2 8477-616 Screw, Machine Price: $0.71
3 2506-779 BUMPER,PUSH-PAINTED (BLACK) Price: $219.19
4 8408-860 SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y Price: $4.39
5 8427-802 Nut, Lock Price: $0.58
6 8408-820 Screw, Cap Price: $0.71
7 2516-556 Bracket, Mounting - Bumper Price: $331.51
8 8409-020 Screw, Cap Price: $1.49
9 8427-002 Nut, Lock Price: $1.08
10 5506-234 Frame, Main Price: $2,947.95
11 1411-122 Decal, Warning - Towing - Front Price: $5.76
12 5506-260 Support, Steering Price: $487.03
13 0423-817 SCREW,MACH-TSTRH M8X1.25X20 CL8.8 W/LOCK Price: $1.70
14 0505-688 Bracket, Steering Support - Right Price: $129.95
14 1502-928 Bracket, Steering Support - Left Price: $163.95
15 8424-802 NUT,HEX-FLG M8X1.25 CL8 Z&Y Price: $0.59
16 8476-820 Screw, Machine Price: $1.08
17 5506-476 Support, Overhead - Right Price: $331.51
17 5506-477 Support, Overhead - Left Price: $331.51
18 0423-886 SCREW, MACH-TSTH M8-1.25X30 BLK- W/PATCH Price: $1.09
19 1423-051 Spacer Price: $15.66
20 2516-644 Bracket, Seat Support - Front - Right Price: $9.73
20 2516-645 Bracket, Seat Support - Front - Left Price: $74.95
21 8408-870 SCREW,CAP-HFH M8X1.25X70 CL8.8 Z&Y Price: $6.95
22 2516-110 Bracket, Hood Support - Right Price: $39.91
22 2516-111 Bracket, Hood Support - Left Price: $39.91
23 0417-014 Trim, Dash Support Price: $3.76
24 0413-326 Bracket, Air Intake Price: $9.35
25 0423-577 Clip, U-Nut Price: $0.46
26 8408-850 Screw, Cap Price: $1.20
27 1506-842 Bracket, Seat Support - Rear Price: $26.95
28 8477-620 Screw, Machine Price: $0.58
29 2516-777 Tube, Support - Black Price: $42.95
30 8476-616 Screw, Machine Price: $0.46
31 5506-471 Support, ROPS Price: $185.95
32 4506-604 Seat, Support - Right Price: $68.95
32 4506-605 Seat, Support - Left Price: $68.95
33 8476-620 Screw, Machine Price: $0.48
34 8427-602 Nut, Hex Price: $0.23
35 2411-234 DECAL,WARNING-TOWING RR Price: $12.51
36 3411-970 DECAL,WARNING-ROPS Price: $8.29
37 5406-186 Plate, Skid Price: $339.95
38 0423-545 SCREW,BODY-SELF TAP #12 X 3/4 A Z&B Price: $1.20
39 2416-453 Panel, Belly - Side Price: $53.95
40 2506-612 PLATE,SKID-SIDE-BLACK Price: $102.95
