0423-545
SCREW,BODY-SELF TAP #12 X 3/4 A Z&B Price: $1.20

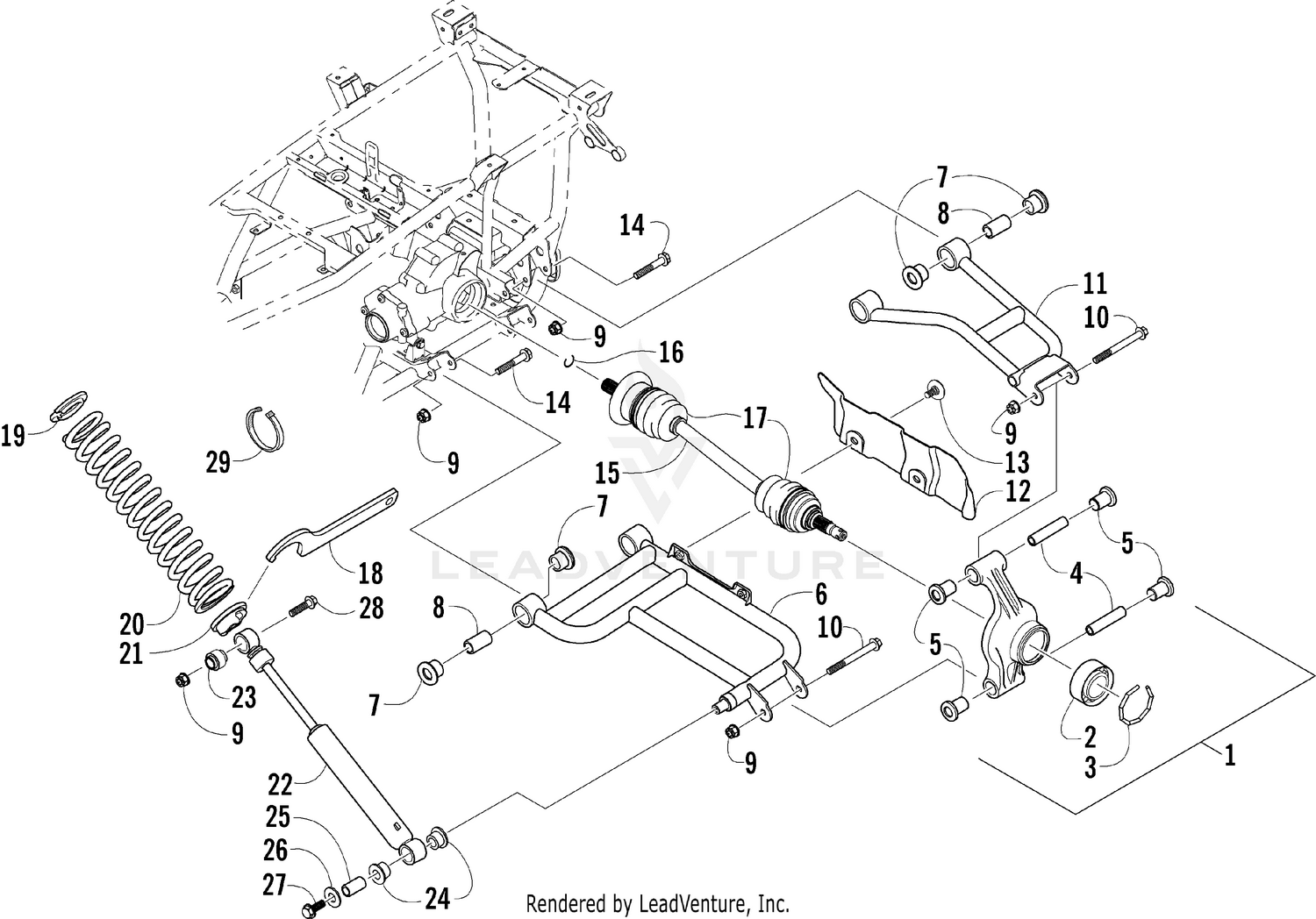

Схема сборки, где используется деталь
Used in (21 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| ARC | REAR SUSPENSION ASSEMBLY [85879] | Arctic Cat / ATV / 2007 / 2007 ATV 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV BLACK L | 13 |
| ARC | REAR SUSPENSION ASSEMBLY [90981] | Arctic Cat / ATV / 2009 / 2009 ATV 650 TBX GREEN [A2009BBS4BUSG] / REAR SUSPENSI | 13 |
| ARC | REAR SUSPENSION ASSEMBLY [301190] | Arctic Cat / ATV / 2016 / 2016 TRV 700 EPS SE CAMO/ORANGE [A2016TCT1PUSH] / REAR | 28 |
| ARC | FRONT BODY, RACK, AND HEADLIGHT ASSEMBLY [301929] | Arctic Cat / ATV / 2017 / 2017 ATV ALTERRA 500 RED [A2017KAK4CUSR] / FRONT BODY, | 24 |
| ARC | FRONT BODY, RACK, AND HEADLIGHT ASSEMBLY [302358] | Arctic Cat / ATV / 2018 / 2018 ALTERRA 500 GREEN [A2018KAK4CUSG] / FRONT BODY, R | 24 |
| ARC | FRAME AND RELATED PARTS [302361] | Arctic Cat / ATV / 2018 / 2018 ALTERRA 500 RED [A2018KAK4CUSR] / FRAME AND RELAT | 12 |
| ARC | FRONT BODY, RACK, AND HEADLIGHT ASSEMBLY [302357] | Arctic Cat / ATV / 2018 / 2018 ALTERRA 500 RED [A2018KAK4CUSR] / FRONT BODY, RAC | 24 |
| ARC | FRONT BODY PANEL ASSEMBLY [89096] | Arctic Cat / ROV / 2009 / 2009 PROWLER 650 XT AUTOMATIC 4X4 CAT GREEN [U2009P2S4 | 19 |
| ARC | CONSOLE AND FLOOR PANEL ASSEMBLY [92494] | Arctic Cat / ROV / 2010 / 2010 PROWLER 550 XT 4X4 GREEN [U2010P2O4EUSG] / CONSOL | 17 |
| ARC | HOOD AND HEADLIGHT ASSEMBLY [92509] | Arctic Cat / ROV / 2010 / 2010 PROWLER 700 XTX 4X4 INTERNATIONAL STEEL BLUE [U20 | 22 |
| ARC | CONSOLE AND FLOOR PANEL ASSEMBLY [92537] | Arctic Cat / ROV / 2010 / 2010 PROWLER 700 XTX 4X4 METALLIC CAT GREEN [U2010P3T4 | 22 |
| ARC | HOOD AND HEADLIGHT ASSEMBLY [92536] | Arctic Cat / ROV / 2010 / 2010 PROWLER 700 XTX 4X4 METALLIC CAT GREEN [U2010P3T4 | 22 |
| ARC | CONSOLE AND FLOOR PANEL ASSEMBLY [92542] | Arctic Cat / ROV / 2010 / 2010 PROWLER 700 XTX 4X4 SUNSET ORANGE [U2010P3T4EUSK] | 22 |
| ARC | HOOD AND HEADLIGHT ASSEMBLY [92541] | Arctic Cat / ROV / 2010 / 2010 PROWLER 700 XTX 4X4 SUNSET ORANGE [U2010P3T4EUSK] | 22 |
| ARC | FRAME AND RELATED PARTS [99890] | Arctic Cat / ROV / 2014 / 2014 PROWLER 550 XT GREEN [U2014P2O4EUSN] / FRAME AND | 33 |
| ARC | HOOD AND HEADLIGHT ASSEMBLY [99887] | Arctic Cat / ROV / 2014 / 2014 PROWLER 550 XT GREEN [U2014P2O4EUSN] / HOOD AND H | 17 |
| ARC | REAR SUSPENSION ASSEMBLY [99994] | Arctic Cat / ROV / 2014 / 2014 PROWLER 700 XTX GREEN [U2014P3T1PUSX] / REAR SUSP | 29 |
| ARC | FRONT SUSPENSION ASSEMBLY [100011] | Arctic Cat / ROV / 2014 / 2014 PROWLER 700 XTX INTERNATIONAL BLUE [U2014P3T1POSD | 23 |
| ARC | FRAME AND RELATED PARTS [300428] | Arctic Cat / ROV / 2015 / 2015 PROWLER 500 HDX INTERNATIONAL RED [U2015P5K4COSR] | 38 |
| ARC | CONSOLE, FLOOR PANEL & STORAGE BOX ASSEMBLY [300114] | Arctic Cat / ROV / 2015 / 2015 PROWLER 700 HDX XT INTERNATIONAL GREEN [U2015P7T1 | 22 |
| ARC | REAR SUSPENSION ASSEMBLY [301419] | Arctic Cat / ROV / 2016 / 2016 HDX 700 XT SE HUNTER EDITION CAMO INTERNATIONAL [ | 20 |
