8409-020
Screw, Cap Price: $1.49

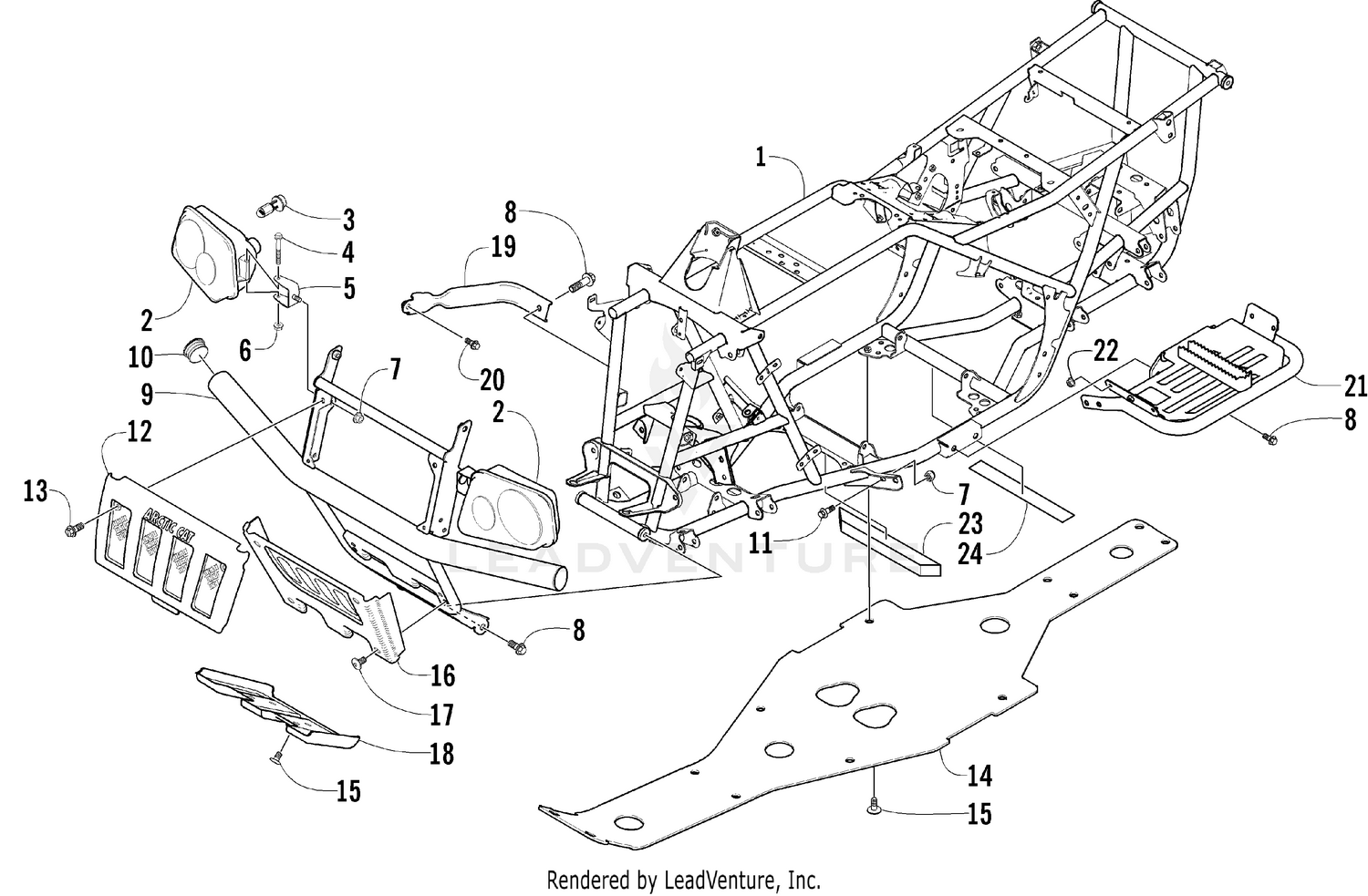

Схема сборки, где используется деталь
Used in (22 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| ARC | FRAME AND RELATED PARTS [60016] | Arctic Cat / ATV / 2003 / 2003 ATV 500 FIS MANUAL TRANSMISSION (GREEN - MRP) [A2 | 8 |
| ARC | REAR BODY PANEL ASSEMBLY [79173] | Arctic Cat / ATV / 2004 / 2004 650 V-2 4X4 FIS RED CA [A2004ISR4BCAR] / REAR BOD | 2 |
| ARC | BODY PANEL ASSEMBLY [78001] | Arctic Cat / ATV / 2004 / 2004 ATV 300 4X4 GREEN [A2004ATF4AUSG] / BODY PANEL AS | 33 |
| ARC | FRAME AND RELATED PARTS [81259] | Arctic Cat / ATV / 2005 / 2005 ATV 400 AUTOMATIC TRANSMISSION 4X4 FIS CAT GREEN | 8 |
| ARC | FRAME AND RELATED PARTS [81258] | Arctic Cat / ATV / 2005 / 2005 ATV 400 AUTOMATIC TRANSMISSION 4X4 FIS GREEN [A20 | 8 |
| ARC | REAR BODY PANEL ASSEMBLY [81251] | Arctic Cat / ATV / 2005 / 2005 ATV 400 AUTOMATIC TRANSMISSION 4X4 FIS LE CAT GRE | 6 |
| ARC | FRAME AND RELATED PARTS [81254] | Arctic Cat / ATV / 2005 / 2005 ATV 400 AUTOMATIC TRANSMISSION 4X4 FIS LE GREEN [ | 8 |
| ARC | FRAME AND RELATED PARTS [81216] | Arctic Cat / ATV / 2005 / 2005 ATV 400 MANUAL TRANSMISSION 4X4 FIS CAT GREEN [A2 | 8 |
| ARC | FRAME AND RELATED PARTS [81175] | Arctic Cat / ATV / 2005 / 2005 ATV 400 MANUAL TRANSMISSION 4X4 FIS RED [A2005ISH | 8 |
| ARC | FRAME AND RELATED PARTS [95025] | Arctic Cat / ATV / 2012 / 2012 ATV 700 DIESEL INTERNATIONAL GREEN [A2012TBT4DOSG | 2 |
| ARC | FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES [302370] | Arctic Cat / ATV / 2016 / 2016 ATV ALTERRA 700 XT EPS CAMO INTERNATIONAL [A2016X | 4 |
| ARC | FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES [301178] | Arctic Cat / ATV / 2016 / 2016 ATV ALTERRA 700 XT EPS WHITE METALLIC INTERNATION | 4 |
| ARC | FRAME AND RELATED PARTS [301187] | Arctic Cat / ATV / 2016 / 2016 TRV 700 EPS SE CAMO/ORANGE [A2016TCT1PUSH] / FRAM | 4 |
| ARC | FRAME AND RELATED PARTS [301819] | Arctic Cat / ATV / 2017 / 2017 ATV 1000 MUD PRO LTD EPS BLACK INTERNATIONAL [A20 | 4 |
| ARC | FRAME AND RELATED PARTS [303944] | Arctic Cat / ATV / 2022 / 2022 ALTERRA TRV 700 XT EPS FOSSIL [A2022TKT1PUSK] / | 4 |
| ARC | FRAME AND RELATED PARTS [304463] | Arctic Cat / ATV / 2023 / 2023 ALTERRA 600 TRV LTD EPS 49 FOSSIL INTERNATIONAL [ | 5 |
| ARC | FRAME AND RELATED PARTS [99890] | Arctic Cat / ROV / 2014 / 2014 PROWLER 550 XT GREEN [U2014P2O4EUSN] / FRAME AND | 11 |
| ARC | FRAME AND RELATED PARTS [300428] | Arctic Cat / ROV / 2015 / 2015 PROWLER 500 HDX INTERNATIONAL RED [U2015P5K4COSR] | 8 |
| ARC | STEERING ASSEMBLY [301899] | Arctic Cat / ROV / 2017 / 2017 PROWLER 1000 XT GREEN INTERNATIONAL [U2017R2W1POS | 24 |
| ARC | STEERING ASSEMBLY [301684] | Arctic Cat / ROV / 2017 / 2017 PROWLER 700 XT RED [U2017R2T1PUSM] / STEERING ASS | 24 |
| ARC | STEERING AND SHIFT ASSEMBLY [305808] | Arctic Cat / ROV / 2024 / 2024 CUSHMAN HAULER 4X4 CREW EPS (DIESEL) (UR) DYNAMIC | 49 |
| ARC | STEERING AND SHIFT ASSEMBLY [305739] | Arctic Cat / ROV / 2024 / 2024 PROWLER PRO CREW LTD OS 49 FOSSIL [U2024AGV2POSK] | 49 |
