1623-814
Screw, Machine Price: $1.20

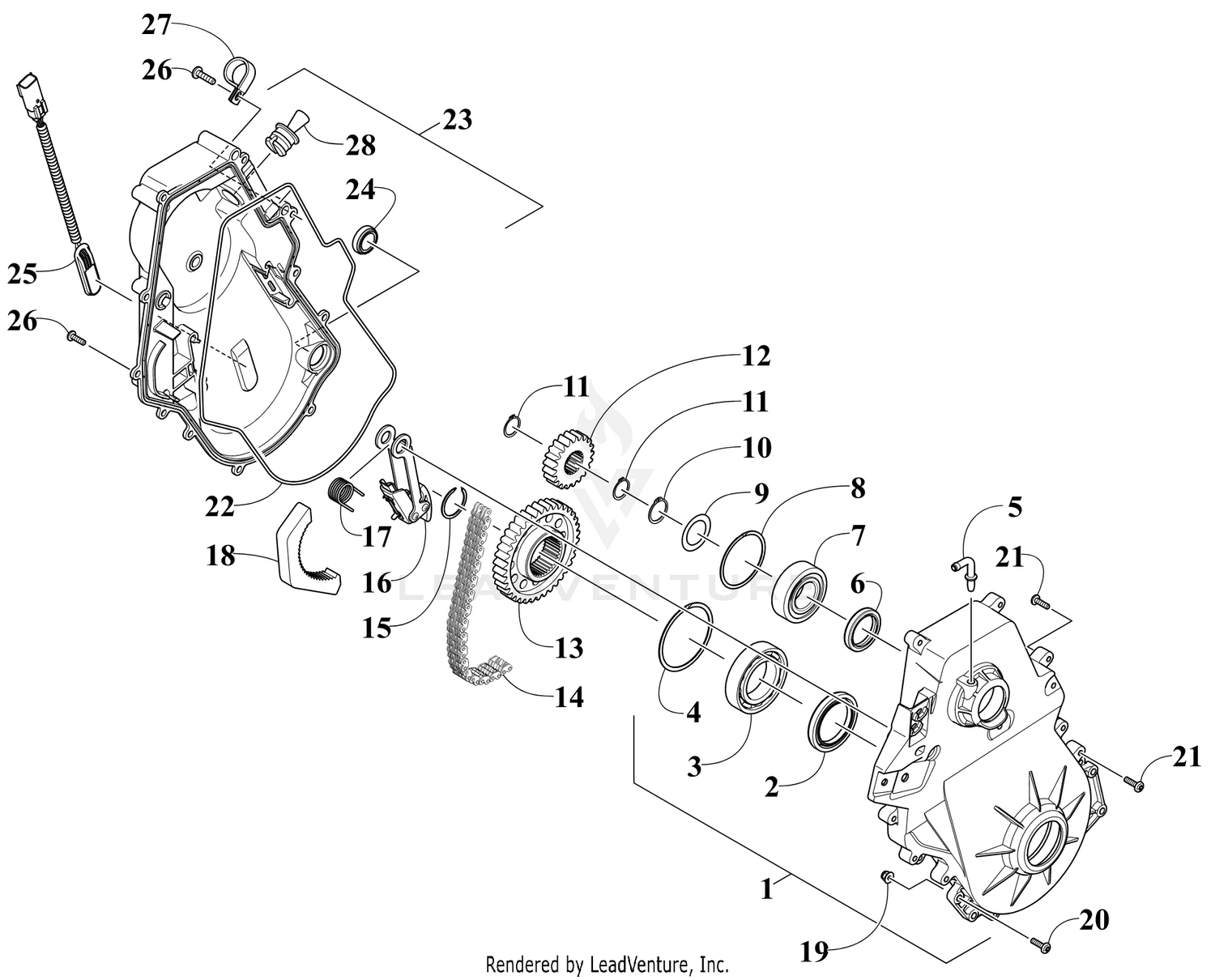

Схема сборки, где используется деталь
Used in (10 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| ARC | CHAIN CASE ASSEMBLY [106059] | Arctic Cat / SNOWMOBILE / 2016 / 2016 XF 6000 CROSSTREK ES 137 ORANGE INTERNATIO | 21 |
| ARC | CHAIN CASE ASSEMBLY [102828] | Arctic Cat / SNOWMOBILE / 2016 / 2016 ZR 6000 R XC GREEN INTERNATIONAL [S2016ACD | 21 |
| ARC | CHAIN CASE ASSEMBLY [106233] | Arctic Cat / SNOWMOBILE / 2018 / 2018 ZR 6000 R SX GREEN INTERNATIONAL [S2018ACD | 23 |
| ARC | EXHAUST ASSEMBLY [106251] | Arctic Cat / SNOWMOBILE / 2018 / 2018 ZR 6000 R SX GREEN INTERNATIONAL [S2018ACD | 11 |
| ARC | CHAIN CASE ASSEMBLY [106190] | Arctic Cat / SNOWMOBILE / 2018 / 2018 ZR 6000 R XC GREEN INTERNATIONAL [S2018ACD | 20 |
| ARC | OIL TANK ASSEMBLY [106191] | Arctic Cat / SNOWMOBILE / 2018 / 2018 ZR 6000 R XC GREEN INTERNATIONAL [S2018ACD | 6 |
| ARC | CHAIN CASE ASSEMBLY [106302] | Arctic Cat / SNOWMOBILE / 2019 / 2019 NORSEMAN 3000 154 GRAY INTERNATIONAL [S201 | 31 |
| ARC | CHAIN CASE ASSEMBLY [108971] | Arctic Cat / SNOWMOBILE / 2022 / 2022 ZR 6000 R SX GREEN [S2022ACDPRUSG] / CHAIN | 23 |
| ARC | OIL TANK ASSEMBLY [110292] | Arctic Cat / SNOWMOBILE / 2024 / 2024 NORSEMAN 8000 X ES 153 RED INTERNATIONAL [ | 6 |
| ARC | EXHAUST ASSEMBLY [108986] | Arctic Cat / SNOWMOBILE / 2024 / 2024 ZR 6000 136 R SX GREEN [S2024ACDPRUSG] / E | 11 |
