0623-282
Rivet Price: $1.08

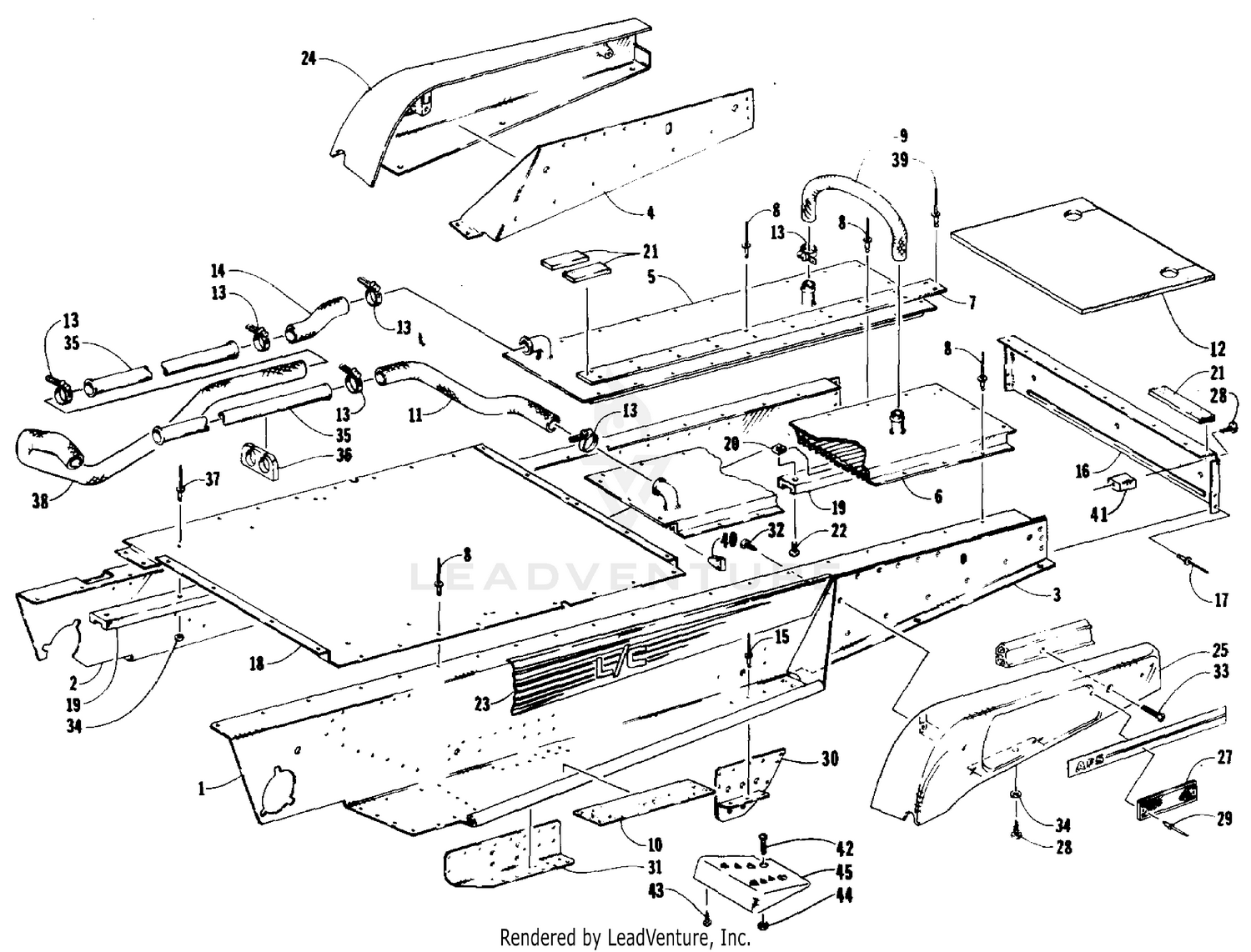

Схема сборки, где используется деталь
Used in (18 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| ARC | TUNNEL AND COOLING ASSEMBLIES [58018] | Arctic Cat / SNOWMOBILE / 1991 / 1991 COUGAR [0650-131-1991-16-07] / TUNNEL AND | 8 |
| ARC | FRONT FRAME, BELLY PAN AND FOOTREST ASSEMBLY [60966] | Arctic Cat / SNOWMOBILE / 1993 / 1993 EXT 580 Z [0650-255-1993-18-24] / FRONT FR | 3 |
| ARC | FRONT FRAME, BELLY PAN AND FOOTREST ASSEMBLY [60789] | Arctic Cat / SNOWMOBILE / 1993 / 1993 JAG Z [0650-245-1993-18-18] / FRONT FRAME, | 3 |
| ARC | TUNNEL AND REAR BUMPER [63675] | Arctic Cat / SNOWMOBILE / 1996 / 1996 COUGAR 2-UP [96COC-1996-21-07] / TUNNEL AN | 22 |
| ARC | FRONT FRAME, FOOTREST, AND GUARD ASSEMBLY [63698] | Arctic Cat / SNOWMOBILE / 1996 / 1996 EXT 580 [96ETA-1996-21-08] / FRONT FRAME, | 3 |
| ARC | FRONT FRAME, FOOTREST, AND GUARD ASSEMBLY [63743] | Arctic Cat / SNOWMOBILE / 1996 / 1996 EXT EFI [96ETB-1996-21-09] / FRONT FRAME, | 3 |
| ARC | FRONT FRAME, FOOTREST, AND GUARD ASSEMBLY [63874] | Arctic Cat / SNOWMOBILE / 1996 / 1996 EXT POWDER SPECIAL [96ETI-1996-21-12] / FR | 3 |
| ARC | FRONT FRAME, BELLY PAN AND FOOTREST ASSEMBLY [63991] | Arctic Cat / SNOWMOBILE / 1996 / 1996 JAG LIQUID [96JAC-1996-21-15] / FRONT FRAM | 3 |
| ARC | TUNNEL AND REAR BUMPER [63993] | Arctic Cat / SNOWMOBILE / 1996 / 1996 JAG LIQUID [96JAC-1996-21-15] / TUNNEL AND | 22 |
| ARC | FRONT FRAME AND FOOTREST ASSEMBLY [66854] | Arctic Cat / SNOWMOBILE / 1998 / 1998 PANTERA 580 [98PTA-1998-23-23] / FRONT FRA | 3 |
| ARC | TUNNEL AND REAR BUMPER [66899] | Arctic Cat / SNOWMOBILE / 1998 / 1998 PANTERA 800 [98PTB-1998-23-24] / TUNNEL AN | 14 |
| ARC | FRONT FRAME AND FOOTREST ASSEMBLY [67006] | Arctic Cat / SNOWMOBILE / 1998 / 1998 THUNDERCAT MC [98TCB-1998-23-26] / FRONT F | 9 |
| ARC | FRONT FRAME AND FOOTREST ASSEMBLY [67172] | Arctic Cat / SNOWMOBILE / 1998 / 1998 ZR 440 [98ZRA-1998-23-30] / FRONT FRAME AN | 17 |
| ARC | FRONT FRAME AND FOOTREST ASSEMBLY [67277] | Arctic Cat / SNOWMOBILE / 1998 / 1998 ZR 600 EFI LE XC [98ZRC-1998-23-32] / FRON | 17 |
| ARC | FRONT FRAME AND FOOTREST ASSEMBLY [54115] | Arctic Cat / SNOWMOBILE / 2001 / 2001 MOUNTAIN CAT 600 VEV [S2001PSDAAUSS-2001-1 | 17 |
| ARC | FRONT FRAME AND FOOTREST ASSEMBLY [76845] | Arctic Cat / SNOWMOBILE / 2002 / 2002 PANTERA 800 EFI ESR [S2002PTHEFUSC-2002-82 | 12 |
| ARC | FRONT FRAME AND FOOTREST ASSEMBLY [76997] | Arctic Cat / SNOWMOBILE / 2002 / 2002 THUNDERCAT [S2002TCLWRUSB-2002-85] / FRONT | 12 |
| ARC | FRONT FRAME AND FOOTREST ASSEMBLY [60061] | Arctic Cat / SNOWMOBILE / 2003 / 2003 MOUNTAIN CAT 900 EARLY BUILD [S2003MCJSEUS | 20 |
