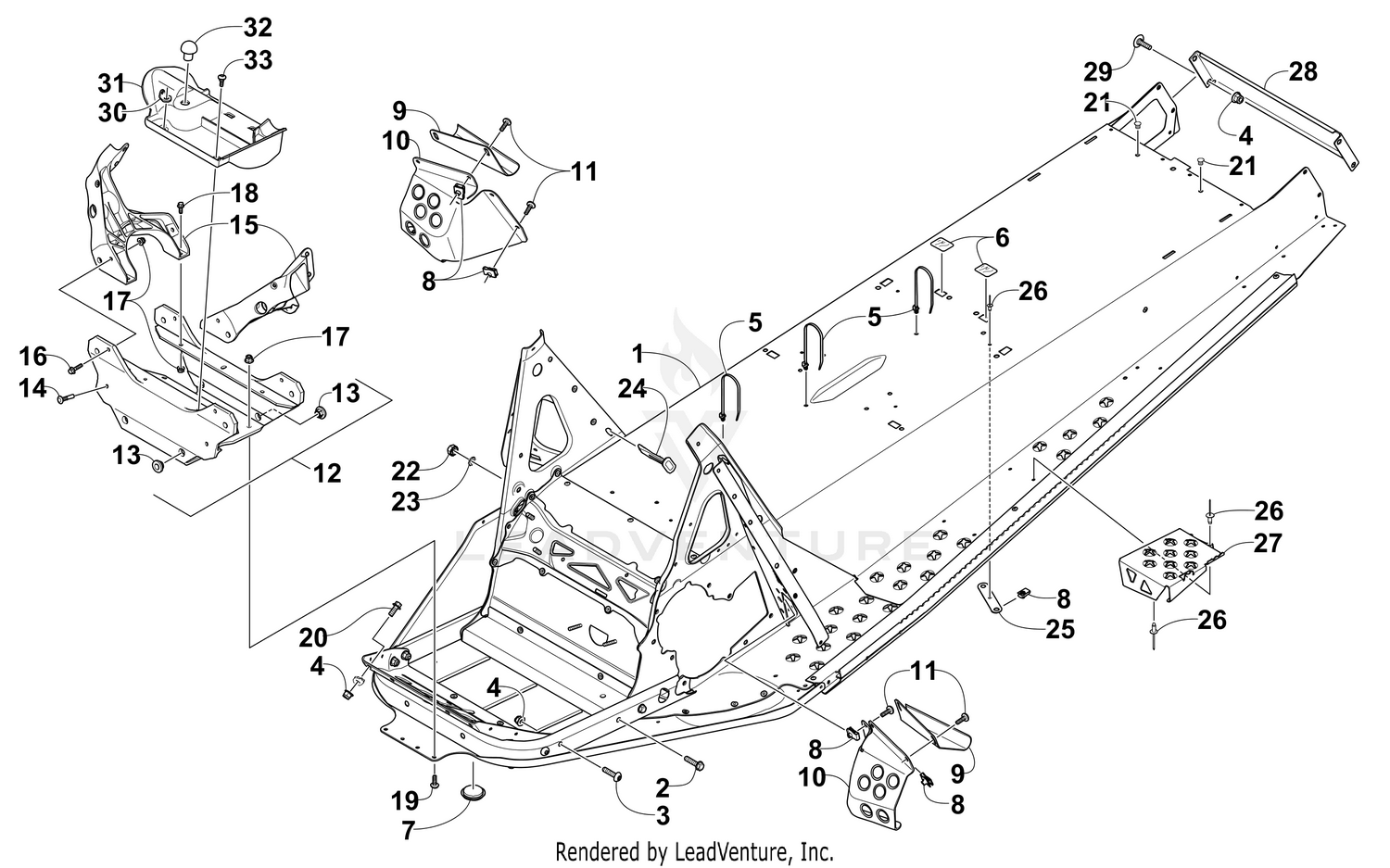

CHASSIS ASSEMBLY [101589]

Parts (35)

Ref	Part Number	Description
2	1623-428	Screw, Cap Price: $5.81
3	8476-835	Screw, Cap Price: $1.70
4	8427-802	Nut, Lock Price: $0.58
5	0623-677	Tie, Cable - Push Mount Price: $1.18
6	2606-007	Foil, Protective Price: $2.17
7	1623-625	Plug Price: $1.20
8	0423-577	Clip, U-Nut Price: $0.46
9	3606-920	Bracket, Toe Hook - Right Price: $20.56
9	3606-921	Bracket, Toe Hook - Left Price: $20.56
10	3606-710	Shield, Toe - Right Price: $83.95
10	3606-711	Shield, Toe - Left Price: $83.95
11	8471-616	Screw, Machine Price: $0.71
13	0605-763	Bushing Price: $3.75
14	1623-443	Bolt, Ribbed Price: $2.17
15	0607-806	Frame, Mounting - Shock - Right Price: $136.95
15	0607-807	Frame, Mounting - Shock - Left Price: $136.95
16	8408-625	Screw, Cap Price: $0.59
17	8427-602	Nut, Hex Price: $0.23
18	8476-620	Screw, Machine This part replaces 8408-620. Price: $0.48
19	8476-620	Screw, Machine Price: $0.48
20	8408-820	Screw, Cap Price: $0.71
21	1623-795	Clip, Retaining Price: $2.30
22	0623-038	Nut Price: $0.35
23	8053-212	Washer, Lock Price: $0.23
24	4606-454	Strap, Hold-Down - Right Price: $4.84
24	4606-455	Strap, Hold-Down - Left Price: $4.84
25	5606-126	Plate, Backing Price: $21.77
26	8060-686	Rivet - Zinc Price: $0.46
27	5606-580	Footrest, Passenger - Right Price: $67.95
27	5606-581	Footrest, Passenger - Left Price: $67.95
28	5606-125	End Cap, Tunnel Price: $40.95
29	1623-812	Screw, Shoulder Price: $16.92
30	4606-770	Bracket, Retaining Price: $4.89
31	5606-318	Close-Off, Front End Price: $16.95
32	0612-111	Bumper, Molded - Rubber Price: $17.80
