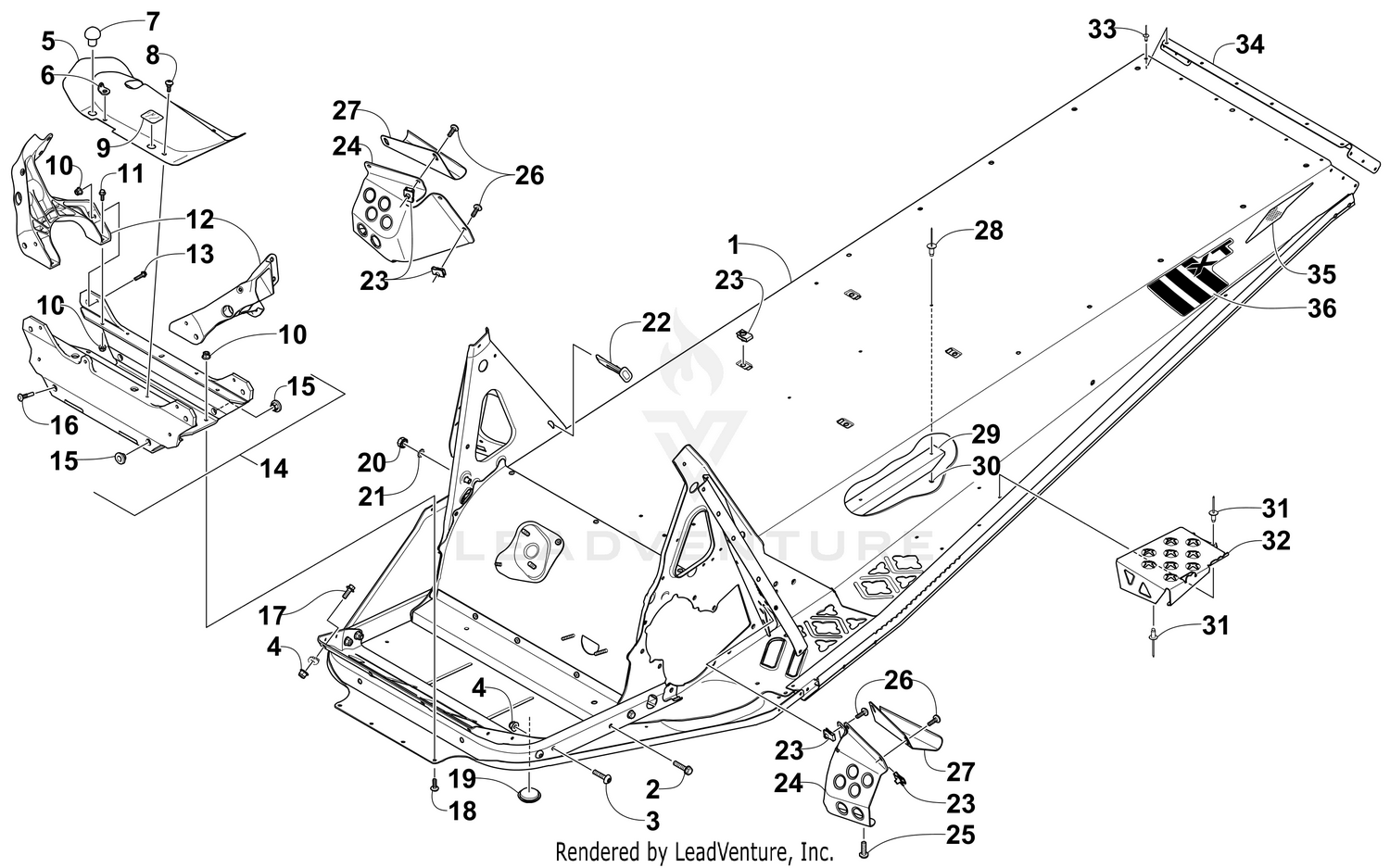

CHASSIS ASSEMBLY [101629]

CHASSIS ASSEMBLY [101629]

Parts (40)

RefPart NumberDescription
2 1623-428 Screw, Cap Price: $5.81
3 8476-835 Screw, Cap Price: $1.70
4 8427-802 Nut, Lock Price: $0.58
5 4706-300 Close-Off, Front End Price: $21.95
6 4606-770 Bracket, Retaining Price: $4.89
7 0612-111 Bumper, Molded - Rubber Price: $17.80
8 8476-616 Screw, Machine Price: $0.46
9 2606-007 Foil, Protective Price: $2.17
10 8427-602 Nut, Hex Price: $0.23
11 8476-620 Screw, Machine This part replaces 8408-620. Price: $0.48
12 0607-806 Frame, Mounting - Shock - Right Price: $136.95
12 0607-807 Frame, Mounting - Shock - Left Price: $136.95
13 8408-625 Screw, Cap Price: $0.59
15 0605-763 Bushing Price: $3.75
16 1623-443 Bolt, Ribbed Price: $2.17
17 8408-820 Screw, Cap Price: $0.71
18 8476-620 Screw, Machine Price: $0.48
19 1623-625 Plug Price: $1.20
20 0623-038 Nut Price: $0.35
21 8053-212 Washer, Lock Price: $0.23
22 4606-454 Strap, Hold-Down - Right Price: $4.84
22 4606-455 Strap, Hold-Down - Left Price: $4.84
23 0423-577 Clip, U-Nut Price: $0.46
24 3606-710 Shield, Toe - Right Price: $83.95
24 3606-711 Shield, Toe - Left Price: $83.95
25 8471-620 Screw, Machine Price: Call Us
26 8471-616 Screw, Machine Price: $0.71
27 3606-920 Bracket, Toe Hook - Right Price: $20.56
27 3606-921 Bracket, Toe Hook - Left Price: $20.56
28 8060-510 Rivet Price: $0.84
29 4706-508 Wearstrip, Tunnel Price: $49.95
30 0123-149 Washer, Flat Price: $2.26
31 8060-686 Rivet - Zinc Price: $0.46
32 5606-580 Footrest, Passenger - Right Price: $67.95
32 5606-581 Footrest, Passenger - Left Price: $67.95
33 8060-682 Rivet Price: $0.24
34 5606-515 End Cap, Tunnel Price: $45.95
35 6611-688 Decal, Reflector - Right - Red Price: $16.81
35 6611-689 Decal, Reflector - Left - Red Price: $16.81
36 1621-248 Decal, Tunnel - Right Price: $64.75
