Parts Catalog

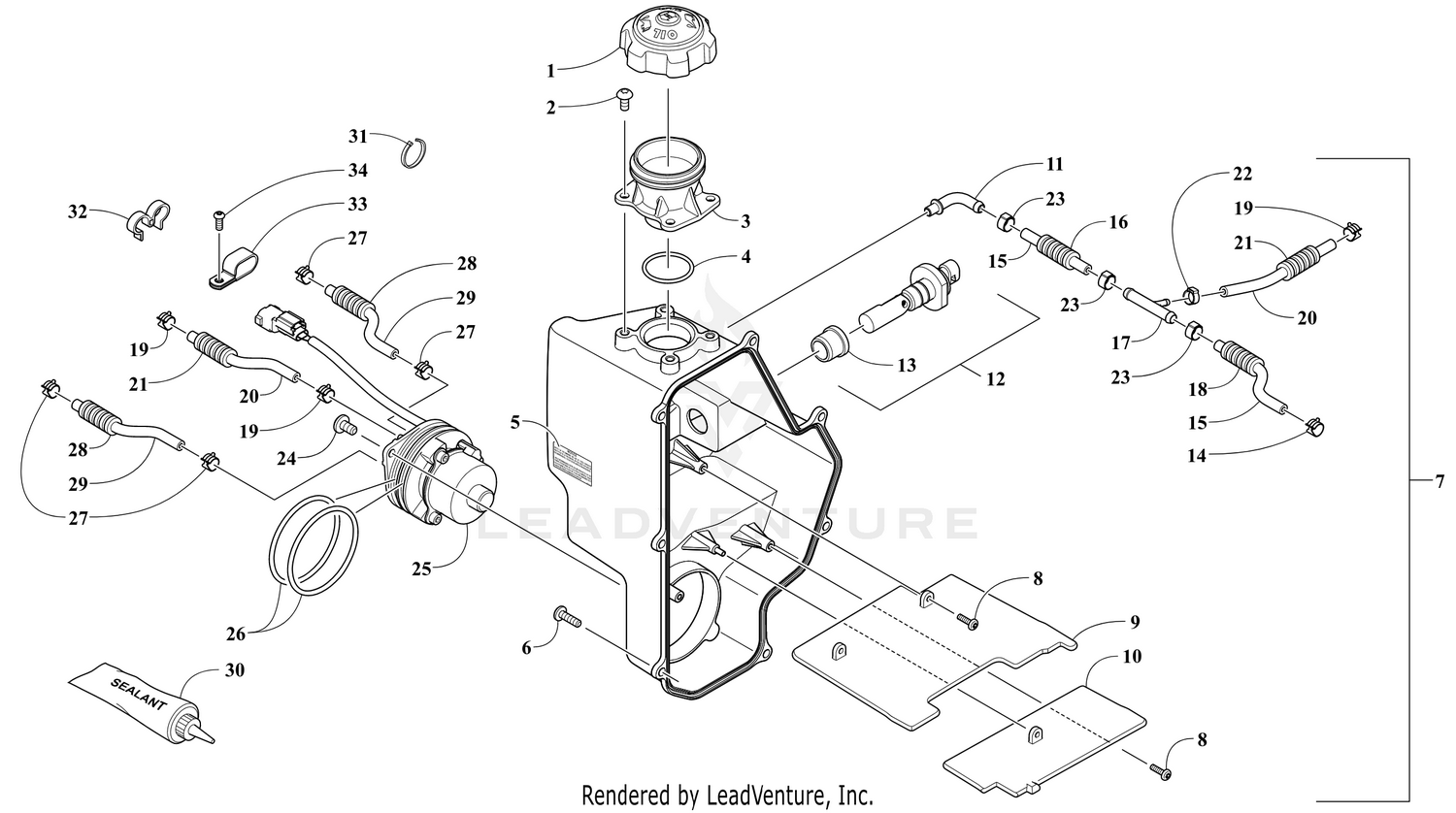

OIL TANK ASSEMBLY [106191]

Parts (30)

Ref	Part Number	Description
1	2670-643	Cap, Oil Tank Price: $35.95
2	1623-969	Screw, Self-Tapping M6X2.0X12 Price: $1.80
3	2670-329	Neck, Oil Fill Price: $53.95
4	2623-158	O-Ring Price: $1.45
5	0621-786	Decal, Oil Tank Price: $4.60
6	1623-814	Screw, Machine Price: $1.20
8	2623-007	Screw, Self-Tapping Price: $3.75
9	2670-558	Plate, Baffle - Upper Price: $76.95
10	2670-559	Plate, Baffle - Lower Price: $76.95
11	0913-021	Fitting, Elbow Price: $5.95
13	0609-924	Grommet Price: $11.39
14	1623-351	Clamp, Hose Price: $1.08
15	0610-968	Hose - Clear - 25 ft Price: $86.95
16	0716-558	Loom, Protective - 10 ft Price: $19.35
17	2670-362	T-Fitting Price: $3.88
18	1619-359	Conduit, Flexible - 5 ft Price: $22.41
19	2623-013	Clamp, Hose Price: $1.20
20	0610-967	Hose - Green - 25 ft Price: $124.95
21	5706-536	Conduit, Flexible - 5 ft Price: $12.30
22	2623-246	Clamp, Hose Price: $2.30
23	1623-655	Clamp, Hose Price: $3.51
24	8468-613	Screw, Cap Price: $1.80
26	0930-046	O-Ring Price: $22.99
27	0923-050	Clamp, Hose Price: $1.80
28	1619-356	Conduit, High Temp Price: $67.95
29	0610-966	Hose - Clear - 25 ft Price: $96.95
30	1048-063	Sealant - 70 ml Price: $76.95
31	0123-903	Tie, Cable Price: $0.59
32	2623-176	Clamp Price: $3.38
33	1623-733	Clamp, Routing Price: $2.17
