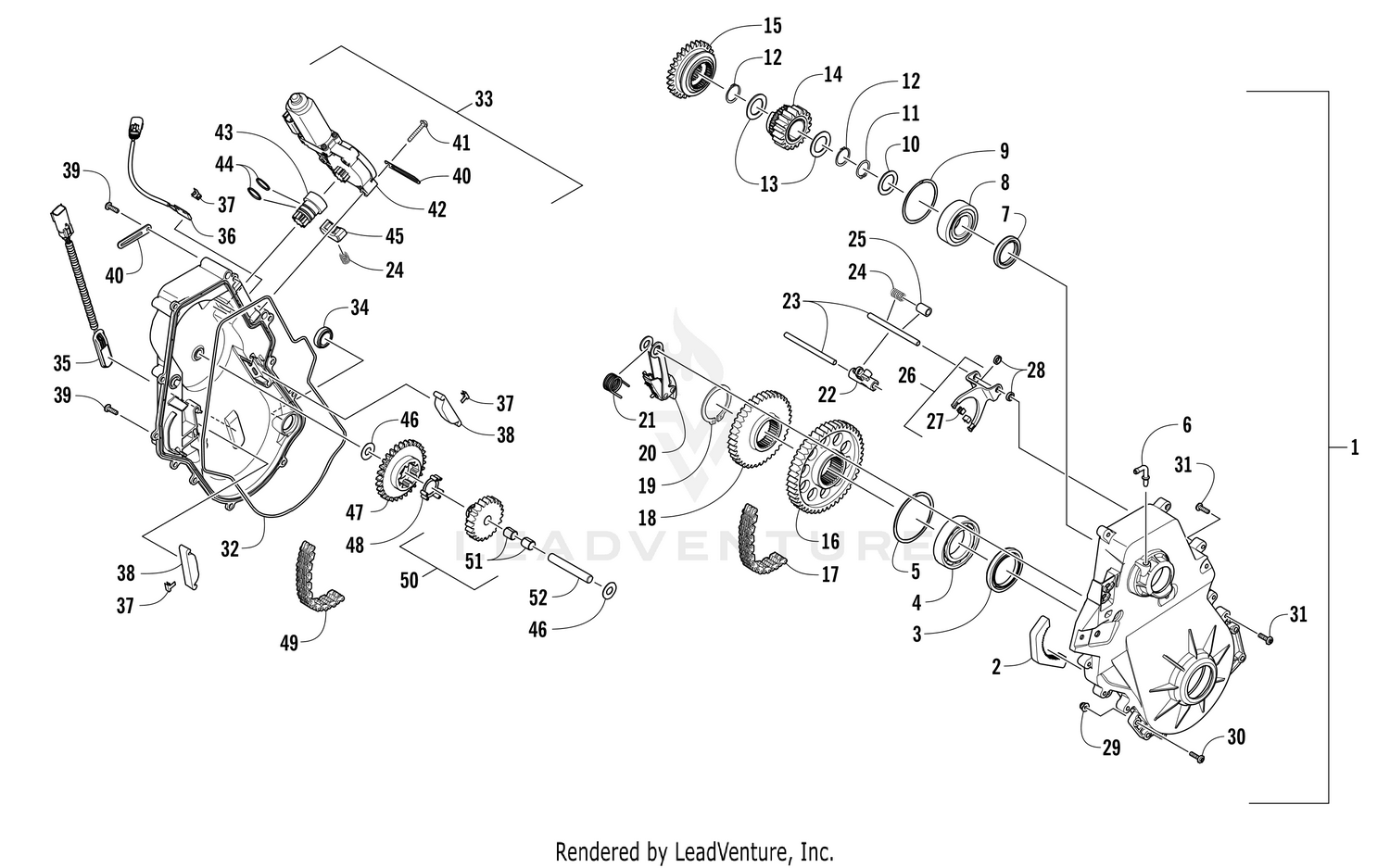

CHAIN CASE ASSEMBLY [106302]

Parts (47)

Ref	Part Number	Description
2	2602-230	Plate, Ratchet Price: $13.28
3	2602-172	Seal Price: $30.95
4	2602-281	Bearing Price: $14.49
5	2602-280	Ring, Retaining Price: $3.88
6	2602-641	Fitting, Elbow Price: $9.64
7	2602-204	Seal Price: $18.13
8	2602-734	Bearing Price: $21.77
9	2602-236	Ring, Retaining Price: $3.38
10	0648-443	Washer, Shim (.060 in.) Price: $1.45
11	1423-175	Ring, Retaining Price: $2.17
12	1623-690	Ring, Retaining Price: $1.20
13	2602-922	Washer, Thrust Price: $26.95
14	1702-416	Sprocket - 19T (13 Wide) Price: $87.95
15	2602-270	Gear, Shift - Reverse Price: $96.95
16	2602-746	Sprocket - 50T (13 Wide) Price: $134.95
17	2602-760	Chain - 90P (13 Wide) Price: $207.95
18	2602-276	Sprocket - 40T (11 Wide) Price: $46.95
19	2602-629	Ring, Retaining Price: $2.91
20	1702-398	Arm, Tensioner - Assembly Price: $48.95
21	2602-336	Spring Price: $1.45
22	1702-265	Arm, Shift Fork Price: $36.95
23	2602-418	Shaft, Reverse Price: $19.35
24	2602-417	Spring Price: $3.75
25	2602-996	Bushing Price: $3.88
27	2602-341	Pad, Wear - Shift Fork Price: $11.49
28	2602-997	Bushing Price: $2.91
29	8427-602	Nut, Hex Price: $0.23
30	8476-630	Screw, Machine Price: $1.18
31	1623-814	Screw, Machine Price: $1.20
32	3602-079	Seal, Chain Case Price: $18.13
34	2602-232	Glass, Sight Price: $15.71
35	0730-172	Kit, Speedometer Sensor Price: $85.95
36	0730-197	Kit, Gear Position Sensor Price: $91.95
37	1623-703	Clip Price: $2.66
38	2602-387	Snubber, Chain Price: $3.26
39	8468-625	Screw, Machine Price: $0.71
40	1623-984	Clamp, Routing Price: $7.08
41	2623-157	Screw, Machine Price: $2.42
42	0630-347	Actuator, Reverse Price: $195.43
43	0630-331	Extension, Actuator Price: $34.95
44	0830-185	O-Ring Price: $0.71
45	0630-332	Block, Detent Price: $4.72
46	2602-338	Washer, Thrust Price: $3.02
47	2602-920	Gear, Reverse Idler - 30T (11 Wide) Price: $114.95
48	2602-415	Insert, Idler Price: $1.92
49	2602-342	Chain - 68P (11 Wide) Price: $131.95
51	2602-337	Bearing Price: $1.80
