Home / POWERSPORTS / ATV / 2017 / 2017 ATV ALTERRA 500 RED [A2017KAK4CUSR] / FRONT BODY, RACK, AND HEADLIGHT ASSEMBLY [301929]

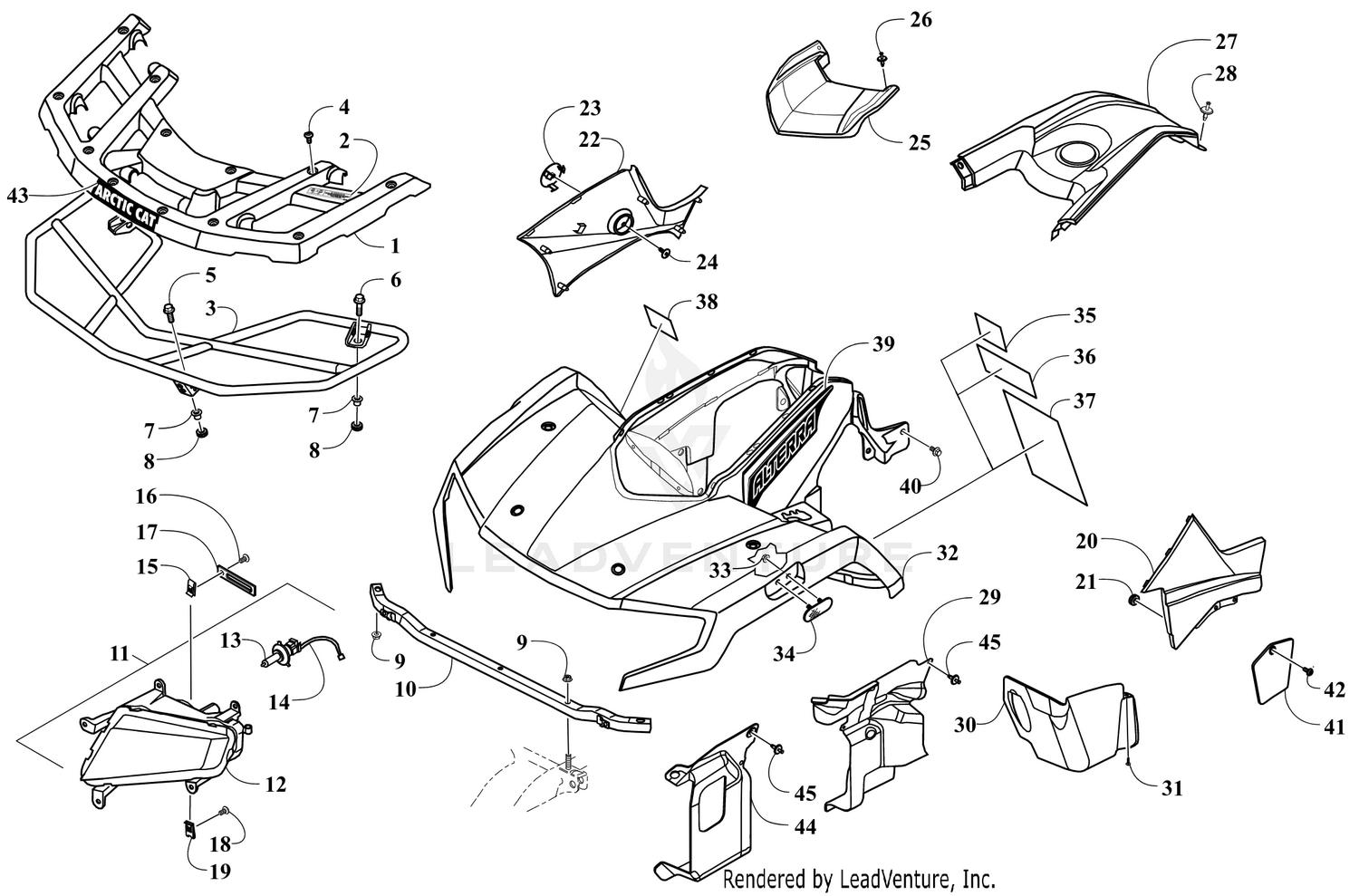

FRONT BODY, RACK, AND HEADLIGHT ASSEMBLY [301929]

FRONT BODY, RACK, AND HEADLIGHT ASSEMBLY [301929]

Parts (45)

RefPart NumberDescription
2 1411-681 DECAL,WARNING RACK (75LB) Price: $21.10
3 3307-181 Rack, Front Price: $305.95
4 3304-650 SCREW TAPPING 5*16 (CIRCLE HEAD) Price: $1.56
5 3313-522 BOLT,M8*25 Price: $2.03
6 3313-713 BOLT,FLANGE 8*50 Price: $3.46
7 0423-669 Spacer Price: $1.45
8 0423-465 GROMMET,RUBBER-12.7X23.8125 Price: $3.29
9 3304-668 NUT FLANGE 8MM Price: $0.85
10 3307-196 TUBE REAR MOUNT-FRONT RACK Price: $40.95
12 3307-132 UNIT HEAD LIGHT R Price: $202.95
12 3307-133 UNIT HEAD LIGHT L Price: $202.95
13 3303-846 BULB HEAD LIGHT This part replaces 3303-846. Price: $45.95
14 3307-136 SOCKET COMP Price: $30.95
15 3304-061 NUT CLIP 5MM Price: $2.42
16 3304-029 BOLT WASH 5*16 Price: $0.85
17 3304-157 CLIP 2*70 Price: $2.18
18 3307-137 BOLT WASHER 6*25 Price: $5.80
19 3303-267 NUT CLIP 6MM **0000 C.97.07.26. Price: $1.27
20 3307-163 PANEL LH SIDE (RED) Price: $115.95
21 0423-678 Grommet Price: $5.99
22 3307-162 PANEL RH SIDE (RED) Price: $71.95
23 3307-686 CAP RH SIDE PANEL (RED) Price: $6.90
24 0423-545 SCREW,BODY-SELF TAP #12 X 3/4 A Z&B Price: $1.20
25 3307-146 ACCESS PANEL ELECTRIC Price: $17.09
26 3303-592 CLIP MUDGUARD Price: $2.42
27 3307-139 Cover, Gas Tank Price: $53.95
28 3304-057 CLIP FENDER Price: $2.00
29 3306-284 PANEL,SPLASH RIGHT Price: $23.53
29 3306-285 PANEL SPLASH LEFT Price: $23.53
30 3313-754 SHIELD LINKAGE Price: $15.66
31 3304-650 SCREW TAPPING 5*16 (CIRCLE HEAD) Price: $1.56
33 3304-774 NUT FLANGE 5MM(G) Price: $0.93
34 3313-359 REFLECTOR,FRONT (OVAL) Price: $14.25
35 4411-818 DECAL,WARNING-HILL (ATV) (RB 6411-412) Price: $1.06
36 1411-804 DECAL,WARNING-AGE (16) Price: $14.95
37 1411-932 Decal, Warning - General Price: $12.95
38 1411-574 DECAL,WARNING-OFF ROAD ONLY Price: $17.95
39 5411-960 Decal, Side - Upper Right - Red Price: $48.95
39 5411-961 Decal, Side - Upper Left - Red Price: $48.95
40 3305-783 BOLT WASHER 8*16 Price: $3.46
41 3307-169 ACCESS PANEL OIL LEVEL GAUGE Price: $17.09
42 3303-592 CLIP MUDGUARD Price: $2.42
43 5411-392 DECAL,ARCTIC CAT (XR 400/450) Price: $6.60
44 3306-286 PANEL FRONT,SPLASH RIGHT Price: $40.95
44 3306-287 PANEL ASSY,SPLASH LEFT Price: $36.95
