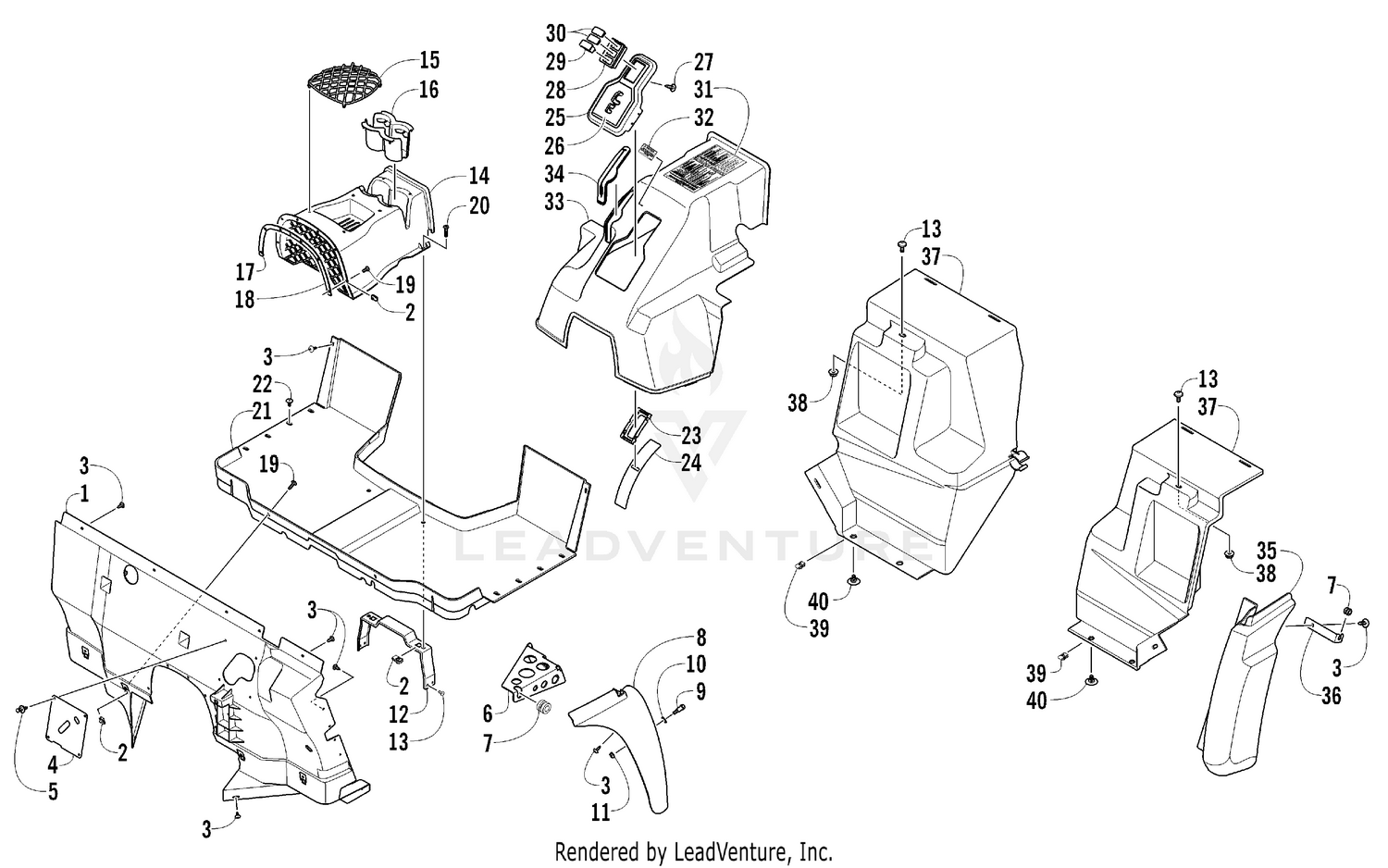

CONSOLE AND FLOOR PANEL ASSEMBLY [92537]

Parts (41)

Ref	Part Number	Description
1	2516-488	Panel, Fender - Inner Price: $195.66
2	0423-577	Clip, U-Nut Price: $0.46
3	0623-784	Screw, Self-Tapping Price: $0.09
4	2406-635	PANEL,SPLASH-INNER FENDER Price: $11.58
5	0623-362	Rivet, Reinstallable Price: $0.71
6	2506-066	Bracket, Support - Right Price: $28.95
6	2506-067	Bracket, Support - Left Price: $31.95
7	0423-447	GROMMET,GAUGE MOUNT Price: $2.42
8	2516-184	Fender, Front - Right Mt Cat Grn Price: $180.95
8	2516-185	Fender, Front - Left Mt Cat Grn Price: $225.50
9	0623-855	Screw, Shoulder Price: $15.71
10	8050-217	Washer, Flat Price: $0.24
11	8048-366	Nut, Lock Price: $0.71
12	2516-313	Bracket, Support Price: $48.95
13	8476-616	Screw, Machine Price: $0.46
14	2416-081	Console - Front Price: $84.95
15	2416-111	Net, Storage Price: $40.95
16	2416-109	GROMMET,CUPHOLDER Price: $42.95
17	0417-019	Foam, Console Price: $14.08
18	0417-018	Foam, Console Price: $14.08
19	8468-625	Screw, Machine Price: $0.71
20	8468-670	Screw, Machine Price: $3.26
21	2416-085	Floor Price: $325.95
22	0423-545	SCREW,BODY-SELF TAP #12 X 3/4 A Z&B Price: $1.20
23	1402-793	GATE,SHIFT SLIDE Price: $9.35
24	1402-794	Slide, Shift Price: $15.66
26	1411-985	Decal, Shift Gate Price: $20.94
27	0423-342	SCREW,SELF TAPPING-.1875 X .75 Price: $0.35
28	0409-069	Panel, Switch-Mount Price: $23.53
29	0409-071	SWITCH,REVERSE OVERRIDE Price: $49.95
30	0409-070	Plug, Switch Hole Price: $3.88
31	2411-095	Decal, Warning - Console Price: $1.45
32	2411-094	Decal, Brake Lever Price: $33.04
33	4406-717	Console, Center Price: $373.95
34	2406-960	Boot, Parking Brake Lever Price: $35.95
35	2516-196	Fender, Rear - Lower - Right Mt Cat Grn Price: $156.28
35	2516-197	Fender, Rear - Lower - Left Mt Cat Grn Price: $156.28
36	2516-326	Bracket, Fender Support - Lower Price: $15.66
37	2416-270	Panel, Splash - Right Price: $72.31
37	2416-271	Panel, Splash - Left Price: $50.95
38	8424-602	NUT,HEX-FLG M6X1.0 CL8 Z&Y Price: $0.35
