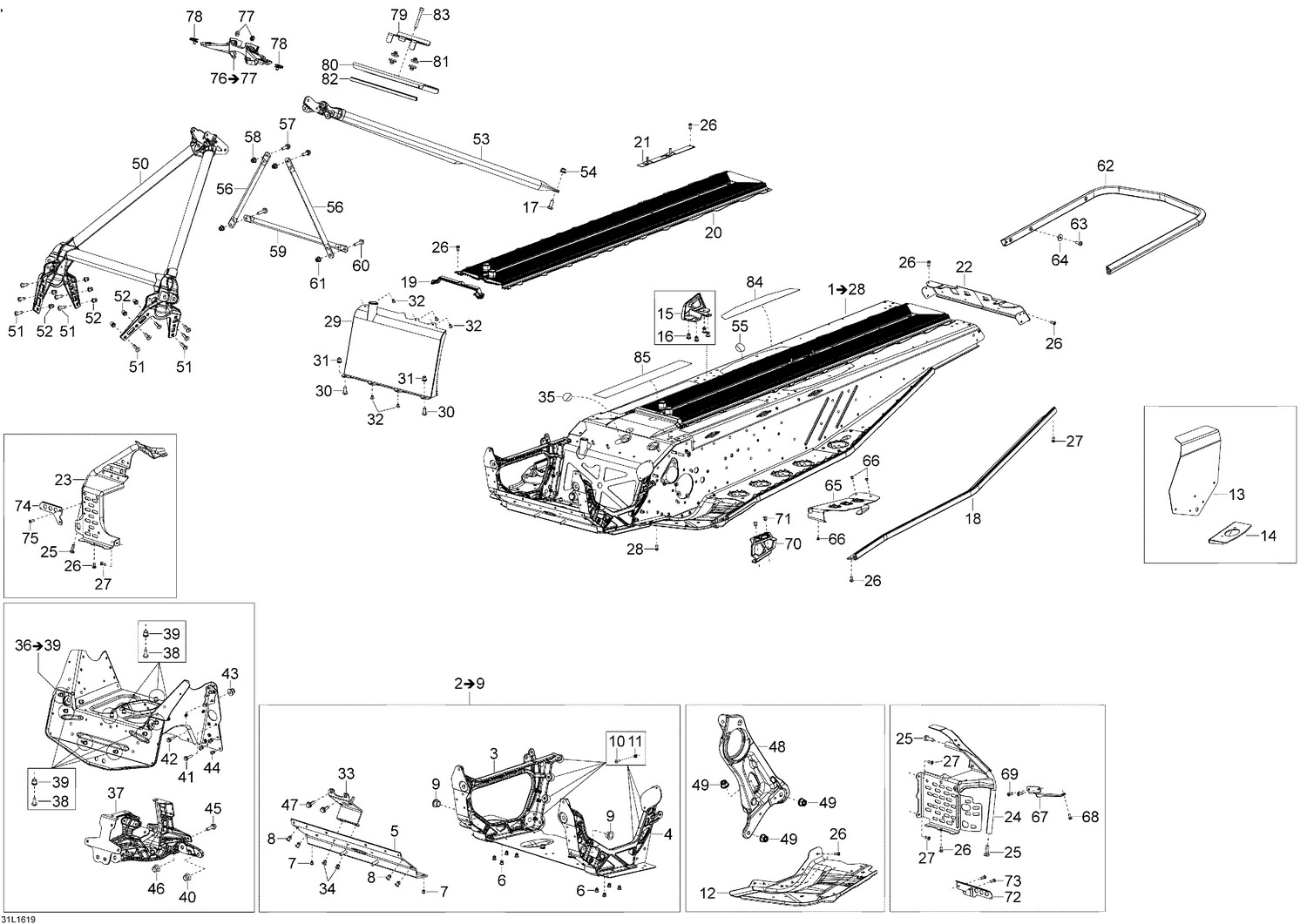

09- Frame
Parts (86)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 518326795 | RH Member |
| 4 | 518326796 | LH Member |
| 5 | 518326198 | Front Member |
| 6 | 390909100 | Avex Rivet |
| 7 | 293150120 | Rivet |
| 8 | 293150119 | Rivet |
| 9 | 505072690 | Leg Bushing |
| 10 | 207662044 | Hex. Flange Screw M6 X 20 |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 12 | 518327242 | LH Front Tunnel |
| 12 | 518327243 | RH Front Tunnel |
| 13 | 518328234 | LH Rear Arm Support |
| 13 | 518328235 | RH Rear Arm Support |
| 14 | 518328236 | Rear Support |
| 15 | 518328435 | LH Rear Base |
| 15 | 518328436 | RH Rear Base |
| 16 | 293150266 | Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 17 | 207182086 | Hex. Cap Screw M8 x 20 |
| 18 | 518327517 | LH Side Profile |
| 18 | 518327518 | RH Side Profile |
| 19 | 518326656 | Seal |
| 20 | 518326786 | Rear Radiator |
| 21 | Not | Available As Spare Part - Battery Support |
| 22 | 518327240 | Rear Cap |
| 23 | 518328940 | RH Stirrup |
| 24 | 518328528 | LH Stirrup |
| 25 | 250000752 | Pan HD Torx Screw M8 x 25 |
| 26 | 390909200 | Avex Rivet |
| 27 | 390909100 | Avex Rivet |
| 28 | 293150096 | Rivet |
| 29 | 518326485 | Front Radiator |
| 30 | 207662044 | Hex. Flange Screw M6 X 20 |
| 31 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 32 | 390909200 | Avex Rivet |
| 33 | 518325943 | MAG Support |
| 34 | 293150119 | Rivet |
| 35 | 518325560 | Adhesive Patch |
| 37 | 518327487 | Support |
| 38 | 207662044 | Hex. Flange Screw M6 X 20 |
| 39 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 40 | 233281414 | Hex. Flange Elastic Nut M8 |
| 41 | 210262050 | Forming Screw M6 x 20 |
| 42 | 207662544 | Hex. Flange Screw M6 X 25 |
| 43 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 44 | 293150179 | MONOBOLT RIVET 4.8 - Call your local BRP dealership |
| 45 | 207662044 | Hex. Flange Screw M6 X 20 |
| 46 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 47 | 207661644 | Hex. Flange Screw M6 X 16 |
| 48 | 518327460 | Pulley Support |
| 49 | 233281414 | Hex. Flange Elastic Nut M8 |
| 50 | 518327565 | Front Member |
| 51 | 207662044 | Hex. Flange Screw M6 X 20 |
| 52 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 53 | 518327237 | Rear Member |
| 54 | 233281414 | Hex. Flange Elastic Nut M8 |
| 55 | 518325560 | Adhesive Patch |
| 56 | 518325114 | Support |
| 57 | 207662056 | Hex. Flange Screw M6 x 20 |
| 58 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 59 | 518325115 | Upper Column |
| 60 | 207662556 | Hex. Flange Screw M6 X 25 |
| 61 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 62 | 518328071 | Black Rear Bumper |
| 63 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 64 | 224061201 | Flat Washer |
| 65 | 518327979 | Black LH Footrest |
| 65 | 518327980 | Black RH Footrest |
| 66 | 36005 | Rivet |
| 67 | 518328079 | Brake Cover Support |
| 68 | 390909200 | Avex Rivet |
| 69 | 293150103 | Pop Rivet 3/16 |
| 70 | 518327507 | Black LH Foot Support |
| 70 | 518327508 | Black RH Foot Support |
| 71 | 293150183 | Rivet |
| 72 | 518327613 | LH Spring Support Plate |
| 73 | 293150103 | Pop Rivet 3/16 |
| 74 | 518327614 | RH Spring Support Plate |
| 75 | 390909200 | Avex Rivet |
| 77 | Not | Available As Spare Part - Bushing |
| 78 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 79 | 513033746 | Upper Support Plate |
| 80 | 513033747 | Lower Support Plate |
| 81 | 605452114 | Plug |
| 82 | Not | Available As Spare Part - Sealing List |
| 83 | 205065044 | SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership |
| 84 | 516006448 | Fuel Tank Protection Decal |
