518326786
Rear Radiator

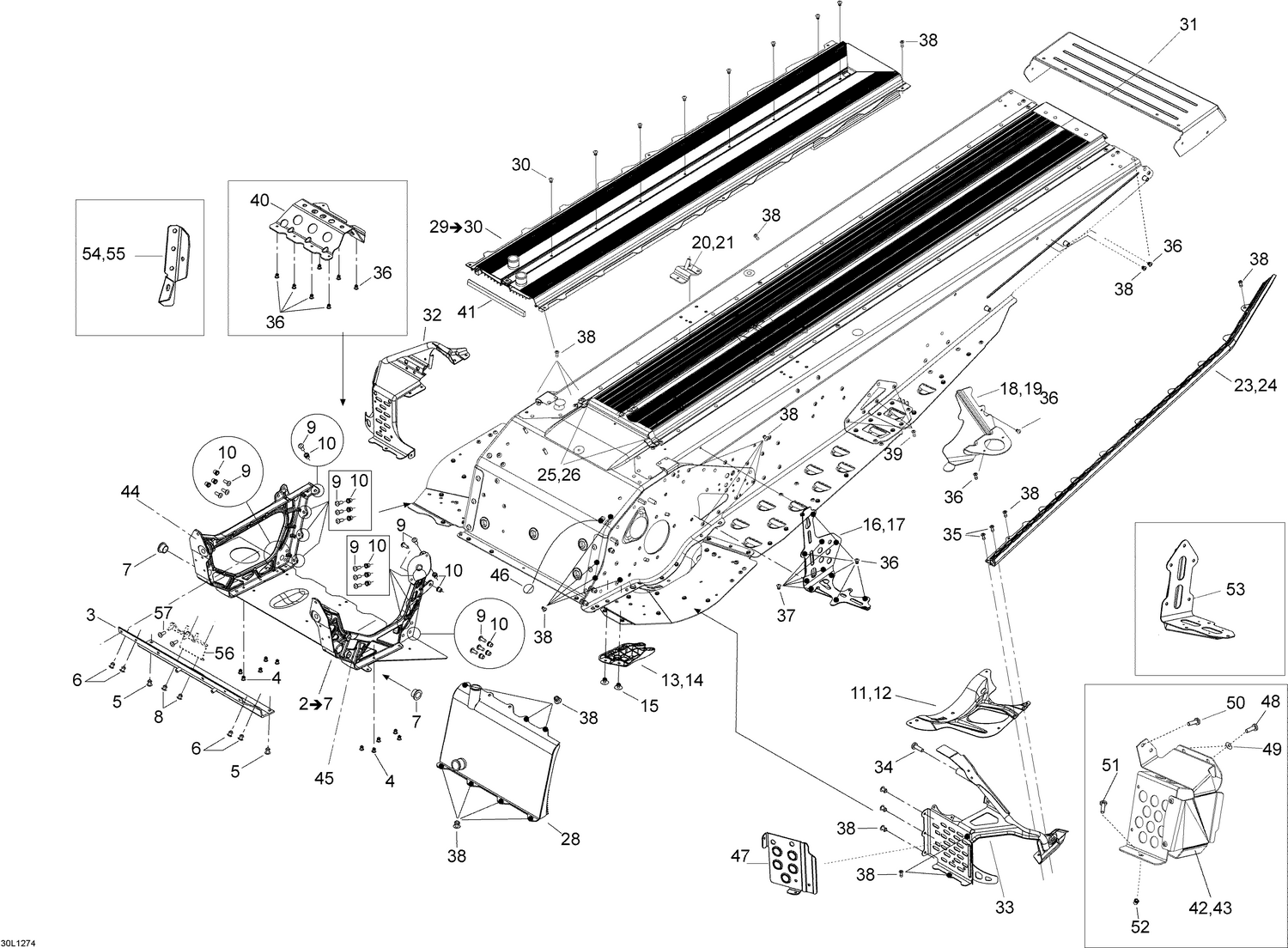

Схема сборки, где используется деталь
Used in (23 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 09- Frame | Lynx / 2012 / Rave / Rave RS 600, 2012 / 09- Frame | 29 |
| LNX_EN_US | 09- Frame | Lynx / 2013 / Rave / Rave GLS 800R E-TEC, 2013 000SUDB00 / 09- Frame | 18 |
| LNX_EN_US | 09- Frame | Lynx / 2013 / Rave / Rave RE 600 E-TEC, 2013 000SCDA00 000SCDC00 / 09- Frame | 19 |
| LNX_EN_US | 09- Frame | Lynx / 2013 / Rave / Rave RE 800R E-TEC, 2013 000SUDA00 000SUDC00 / 09- Frame | 18 |
| LNX_EN_US | 09- Frame | Lynx / 2013 / Rave / Rave RS 600, 2013 000SFDB00 / 09- Frame | 21 |
| LNX_EN_US | 09- Frame | Lynx / 2014 / Rave / Rave RE 600 E-TEC, 2014 000SCEA00 000SCEB00 000SCEC00 000SC | 20 |
| LNX_EN_US | 09- Frame | Lynx / 2014 / Rave / Rave RE 800R E-TEC, 2014 000SUEA00 000SUEB00 000SUEC00 000S | 20 |
| LNX_EN_US | 09- Frame | Lynx / 2014 / Rave / Rave RS 600, 2014 000SFEB00 / 09- Frame | 21 |
| LNX_EN_US | 09- Frame | Lynx / 2014 / Xtrim / Xtrim SC 900 ACE, 2014 000LBEA00 / 09- Frame | 20 |
| LNX_EN_US | 09- Frame | Lynx / 2015 / Rave / Rave 600 ACE, 2015 000LRFD00 / 09- Frame | 22 |
| LNX_EN_US | 09- Frame | Lynx / 2015 / Rave / Rave 600 E-TEC, 2015 000LRFC00 / 09- Frame | 20 |
| LNX_EN_US | 09- Frame | Lynx / 2015 / Rave / Rave RE 600 E-TEC, 2015 000SCFA00 000SCFB00 000SCFC00 000SC | 20 |
| LNX_EN_US | 09- Frame | Lynx / 2015 / Rave / Rave RE 800R E-TEC, 2015 000STFB00 000SUFA00 000SUFB00 000S | 20 |
| LNX_EN_US | 09- Frame | Lynx / 2015 / Rave / Rave RS 600, 2015 000SFFB00 / 09- Frame | 21 |
| LNX_EN_US | 09- Frame | Lynx / 2015 / Xtrim / Xtrim SC 900 ACE, 2015 000LBFA00 / 09- Frame | 20 |
| LNX_EN_US | 09- Frame | Lynx / 2016 / Rave / Rave (2-Stroke), 2016 000LRGC00 / 09- Frame | 20 |
| LNX_EN_US | 09- Frame | Lynx / 2016 / Rave / Rave (4-Stroke), 2016 000LRGD00 / 09- Frame | 22 |
| LNX_EN_US | 09- Frame | Lynx / 2016 / Rave / Rave RE (2-Stroke), 2016 000SCGA00 000SCGB00 000SCGC00 000S | 20 |
| LNX_EN_US | 09- Frame | Lynx / 2016 / Rave / Rave RS (2-Stroke), 2016 000SFGB00 / 09- Frame | 19 |
| LNX_EN_US | 09- Frame | Lynx / 2017 / Rave / Rave (2-Stroke), 2017 000LRHC00 / 09- Frame | 20 |
| LNX_EN_US | 09- Frame | Lynx / 2017 / Rave / Rave (4-Stroke), 2017 000LRHD00 / 09- Frame | 22 |
| LNX_EN_US | 09- Frame | Lynx / 2017 / Rave / Rave RE, 2017 000SCHA00 000SCHB00 000SCHC00 000SCHD00 000SC | 20 |
| LNX_EN_US | 09- Frame | Lynx / 2017 / Rave / Rave RS Racing, 2017 000SFHB00 / 09- Frame | 19 |
