518328236
Rear Support

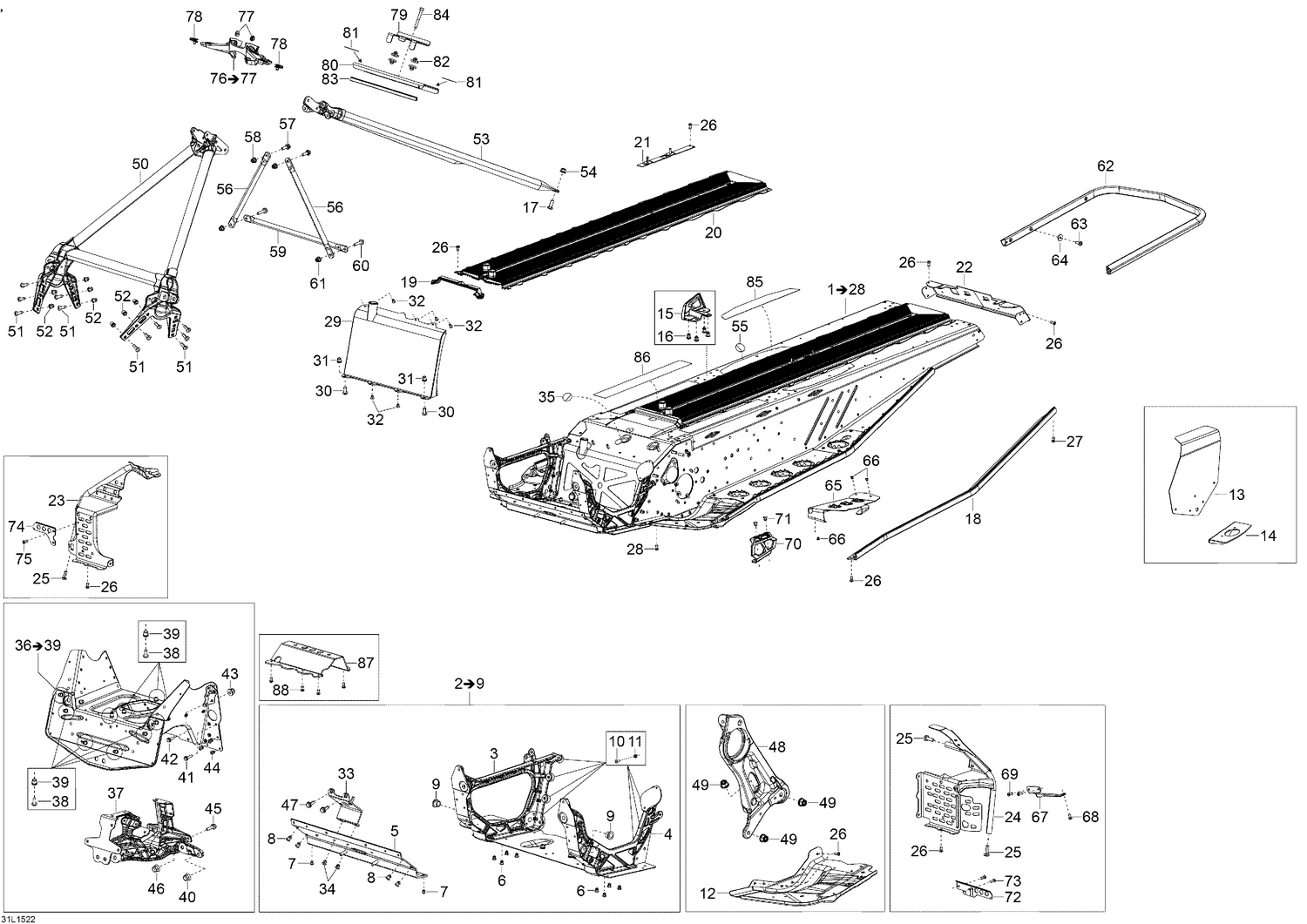

Схема сборки, где используется деталь
Used in (6 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 09- Frame | Lynx / 2015 / Rave / Rave RE 600 E-TEC, 2015 000SCFA00 000SCFB00 000SCFC00 000SC | 14 |
| LNX_EN_US | 09- Frame | Lynx / 2015 / Rave / Rave RE 800R E-TEC, 2015 000STFB00 000SUFA00 000SUFB00 000S | 14 |
| LNX_EN_US | 09- Frame | Lynx / 2016 / Rave / Rave (2-Stroke), 2016 000LRGC00 / 09- Frame | 14 |
| LNX_EN_US | 09- Frame | Lynx / 2016 / Rave / Rave (4-Stroke), 2016 000LRGD00 / 09- Frame | 16 |
| LNX_EN_US | 09- Frame | Lynx / 2016 / Rave / Rave RE (2-Stroke), 2016 000SCGA00 000SCGB00 000SCGC00 000S | 14 |
| LNX_EN_US | 09- Frame | Lynx / 2016 / Rave / Rave RS (2-Stroke), 2016 000SFGB00 / 09- Frame | 14 |
