204100126
PHILLIPS FORMING SCREW M8 X 3/4? - Call your local BRP dealership

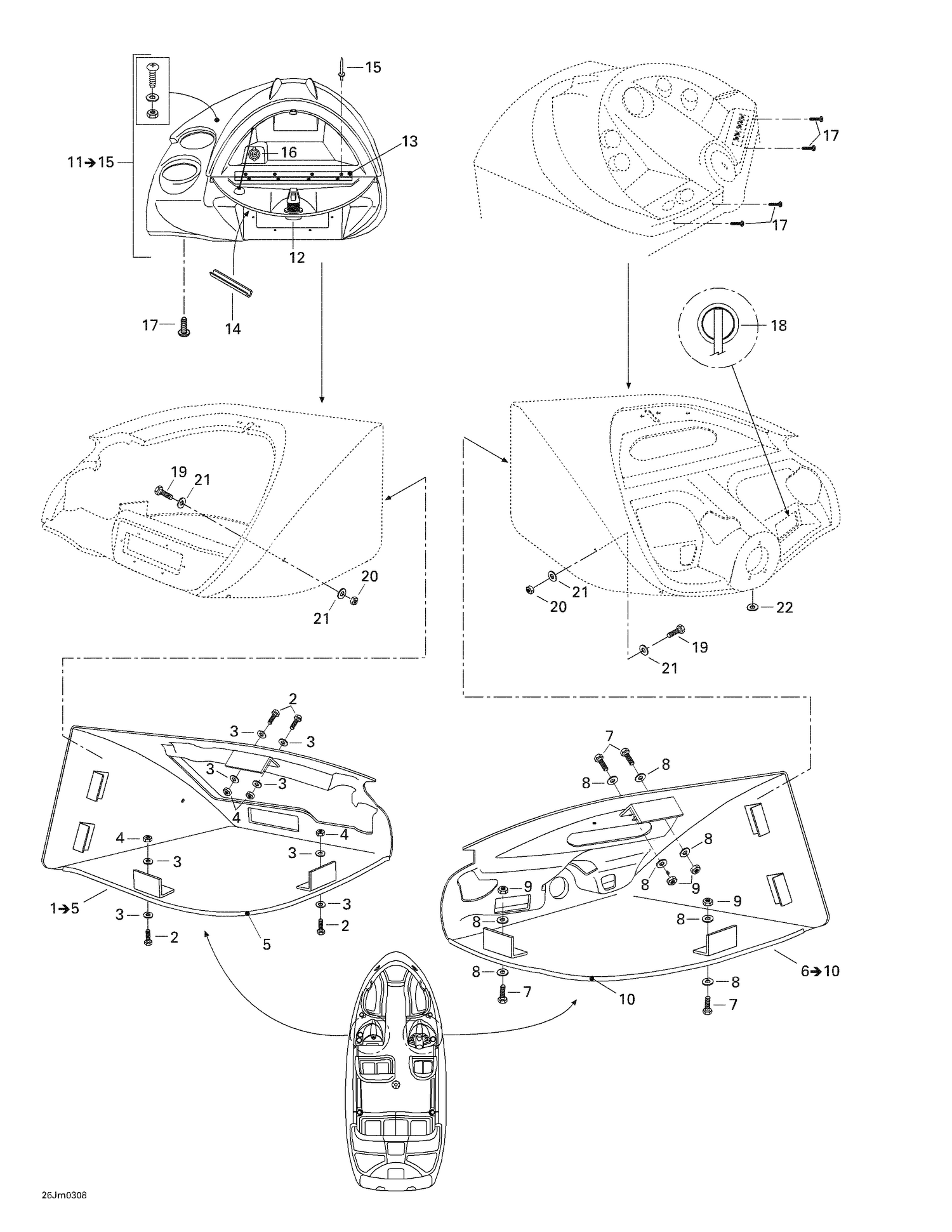

Схема сборки, где используется деталь
Used in (16 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| SEA_DOO_EN_US | 09- Front Console Glove Box | Sea-Doo / Sea-Doo Boats / 2003 / Utopia 185/205 / Utopia 185, 2003 / 09- Front C | 17 |
| SEA_DOO_EN_US | 10- Speed Control Perfect Pass | Sea-Doo / Sea-Doo Boats / 2007 / Challenger / Challenger 230 WAKE 155NA, 2007 00 | 2 |
| SEA_DOO_EN_US | 10- Speed Control Perfect Pass | Sea-Doo / Sea-Doo Boats / 2007 / Speedster / Speedster 200 WAKE 155NA, 2007 0009 | 2 |
| SEA_DOO_EN_US | 10- Speed Control Perfect Pass | Sea-Doo / Sea-Doo Boats / 2007 / Speedster / Speedster WAKE 215IC, 2007 000857E0 | 2 |
| SEA_DOO_EN_US | 10- Speed Control Perfect Pass | Sea-Doo / Sea-Doo Boats / 2008 / Speedster / Speedster WAKE 310, 2008 000968E00 | 2 |
| SEA_DOO_EN_US | 10- Speed Control Perfect Pass | Sea-Doo / Sea-Doo Boats / 2008 / Speedster / Speedster WAKE 430, 2008 000858E00 | 2 |
| SEA_DOO_EN_US | 10- Speed Control Perfect Pass | Sea-Doo / Sea-Doo Boats / 2009 / WAKE / Speedster Wake, 2 x 215 SCIC, 2009 00069 | 2 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2010 / Challenger / 230 Challenger 310, 2x155 1503NA, | 15 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2010 / Challenger / 230 Challenger SP 310, 2x155 1503N | 62 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2010 / Challenger / 230 Challenger SP 430, 2x215 1503S | 62 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2010 / WAKE / 230 Wake SE 430, 2x215 1503SCIC, 2010 00 | 62 |
| SEA_DOO_EN_US | 09- Seat, Rear View | Sea-Doo / Sea-Doo Boats / 2010 / WAKE / 230 Wake SE 510, 2x255 1503HO, 2010 0007 | 62 |
| SEA_DOO_EN_US | 09- Ballast System | Sea-Doo / Sea-Doo Boats / 2012 / WAKE / 210 Wake 310, 2012 00058CK00 00058CW00 0 | 42 |
| SEA_DOO_EN_US | 09- Ballast System | Sea-Doo / Sea-Doo Boats / 2012 / WAKE / 210 Wake 430, 2012 00059CW00 00059CX00 / | 42 |
| SEA_DOO_EN_US | 09- Ballast System | Sea-Doo / Sea-Doo Boats / 2012 / WAKE / 230 Wake 430, 2012 00078CW00 00078CX00 / | 18 |
| SEA_DOO_EN_US | 09- Ballast System | Sea-Doo / Sea-Doo Boats / 2012 / WAKE / 230 Wake 520, 2012 00079CW00 00079CX00 0 | 18 |
