Home / BRP / Part 417300534

417300534

Drive Belt This part replaces 417300253.

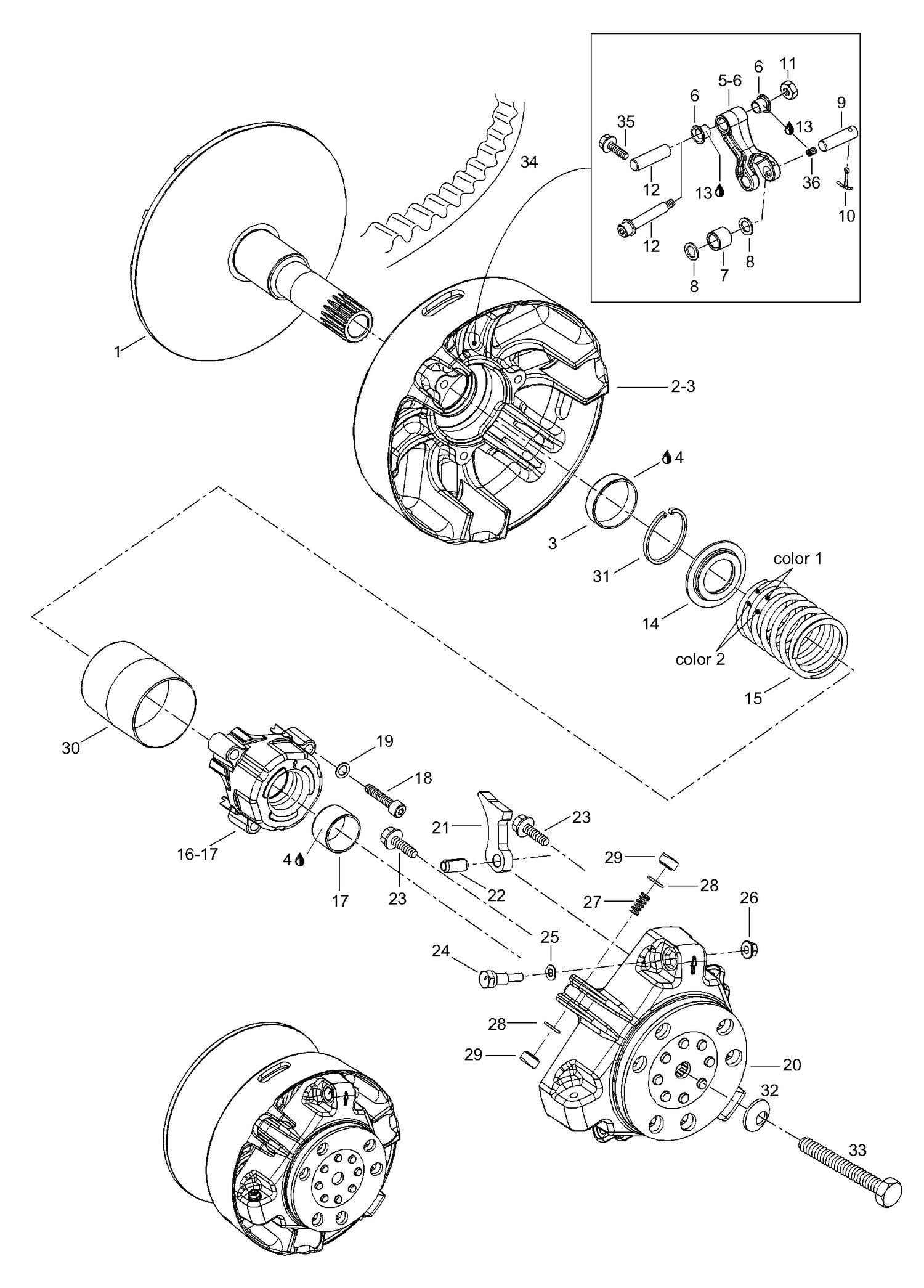

Assembly diagram
Схема сборки, где используется деталь

Used in (29 assemblies)

BrandAssemblyPathRef
LNX_EN_US 05- Clutch Lynx / 2004 / Racing, 2004 / 05- Clutch 34
LNX_EN_US 05- Drive System Lynx / 2005 / Rave 440, 2005 / 05- Drive System 10
LNX_EN_US 05- Drive System Lynx / 2007 / Rave RC 440, 2007 / 05- Drive System 10
LNX_EN_US 05- Pulley System Lynx / 2008 / Rave / Rave RS 600, 2008 / 05- Pulley System 45
LNX_EN_US 05- Drive System Lynx / 2009 / Rave / Rave RS 600, 2009 / 05- Drive System 45
LNX_EN_US 05- Drive System Lynx / 2010 / Rave / Rave RS 600, 2010 / 05- Drive System 45
LNX_EN_US 05- Drive System Lynx / 2011 / Rave / Rave RS 600, 2011 / 05- Drive System 45
LNX_EN_US 05- Pulley System Lynx / 2012 / Rave / Rave RS 600, 2012 / 05- Pulley System 45
LNX_EN_US 05- Pulley System Lynx / 2013 / Rave / Rave RS 600, 2013 000SFDB00 / 05- Pulley System 45
LNX_EN_US 05- Pulley System Lynx / 2014 / Rave / Rave RS 600, 2014 000SFEB00 / 05- Pulley System 45
LNX_EN_US 05- Pulley System Lynx / 2015 / Rave / Rave RS 600, 2015 000SFFB00 / 05- Pulley System 45
LNX_EN_US 05- Pulley System Lynx / 2016 / Rave / Rave RS (2-Stroke), 2016 000SFGB00 / 05- Pulley System 43
LNX_EN_US 05- Pulley System Lynx / 2017 / Rave / Rave RS Racing, 2017 000SFHB00 / 05- Pulley System 43
LNX_EN_US 05- Pulley Rave - 600 RS Lynx / 2018 / RAVE Series / RAVE Racing, 2018 000SFJB00 / 05- Pulley Rave - 600 200
LNX_EN_US 05- Pulley - Rave - 600 Racing Lynx / 2019 / 006 - RAVE Series / 003 - RAVE RS 600 RS E-TEC, 2019 000SFKB00 / 0 200
SKI_DOO_EN_US 05- Pulley System Ski-Doo / 2004 / MX Z / MX Z X 440 Racing, 2004 / 05- Pulley System 62
SKI_DOO_EN_US 05- Pulley System Ski-Doo / 2005 / MX Z / MX Z X 440 Racing, 2005 / 05- Pulley System 48
SKI_DOO_EN_US 05- Pulley System Ski-Doo / 2007 / MX Z / MX Z 440X Racing, 2007 000BM7B00 000BM7C00 / 05- Pulley 48
SKI_DOO_EN_US 05- Pulley System Ski-Doo / 2008 / MX Z / MX Z 600RS, 2008 000BM8A00 000BM8B00 / 05- Pulley System 45
SKI_DOO_EN_US 05- Pulley System Ski-Doo / 2009 / MX Z / MX Z X 600RS, 2009 000BM9A00 000BM9B00 / 05- Pulley Syst 46
SKI_DOO_EN_US 05- Pulley System Ski-Doo / 2010 / MX Z / MX Z X 600RS, 2010 000BMAA00 000BMAB00 / 05- Pulley Syst 46
SKI_DOO_EN_US 05- Pulley System Ski-Doo / 2011 / MX Z / MX Z X 600RS, 2011 000BMBA00 000BMBB00 / 05- Pulley Syst 46
SKI_DOO_EN_US 05- Pulley System Ski-Doo / 2012 / MX Z / MX Z X 600RS, 2012 000BMCA00 000BMCB00 / 05- Pulley Syst 46
SKI_DOO_EN_US 05- Pulley System Ski-Doo / 2013 / MX Z / MXZ X 600RS XP, 2013 000BMDA00 000BMDB00 / 05- Pulley Sy 54
SKI_DOO_EN_US 05- Pulley System _19M1438 Ski-Doo / 2014 / MX Z / MXZ X 600RS XS RS, 2014 000BMEA00 000BMEB00 / 05- Pulley 69
SKI_DOO_EN_US 05- Pulley System Ski-Doo / 2016 / MXZ Family / MXZ 600 RS, 2016 000BMGA00 000BMGB00 / 05- Pulley 41
SKI_DOO_EN_US 05- Pulley System Ski-Doo / 2017 / MXZ Family / MXZ 600 RS, 2017 000BMHA00 000BMHB00 / 05- Pulley 41
SKI_DOO_EN_US 05- Pulley MXZ RS Ski-Doo / 2018 / SKI-DOO - MXZ Racing / 1- MXZ 600RS - Racing, 2018 000BMJA00 00 200
SKI_DOO_EN_US 05- Pulley - 600 Racing Ski-Doo / 2019 / SKI-DOO - MXZ Series / 004 - MXZ 600 RACING, 2019 000BMKA00 000 200
