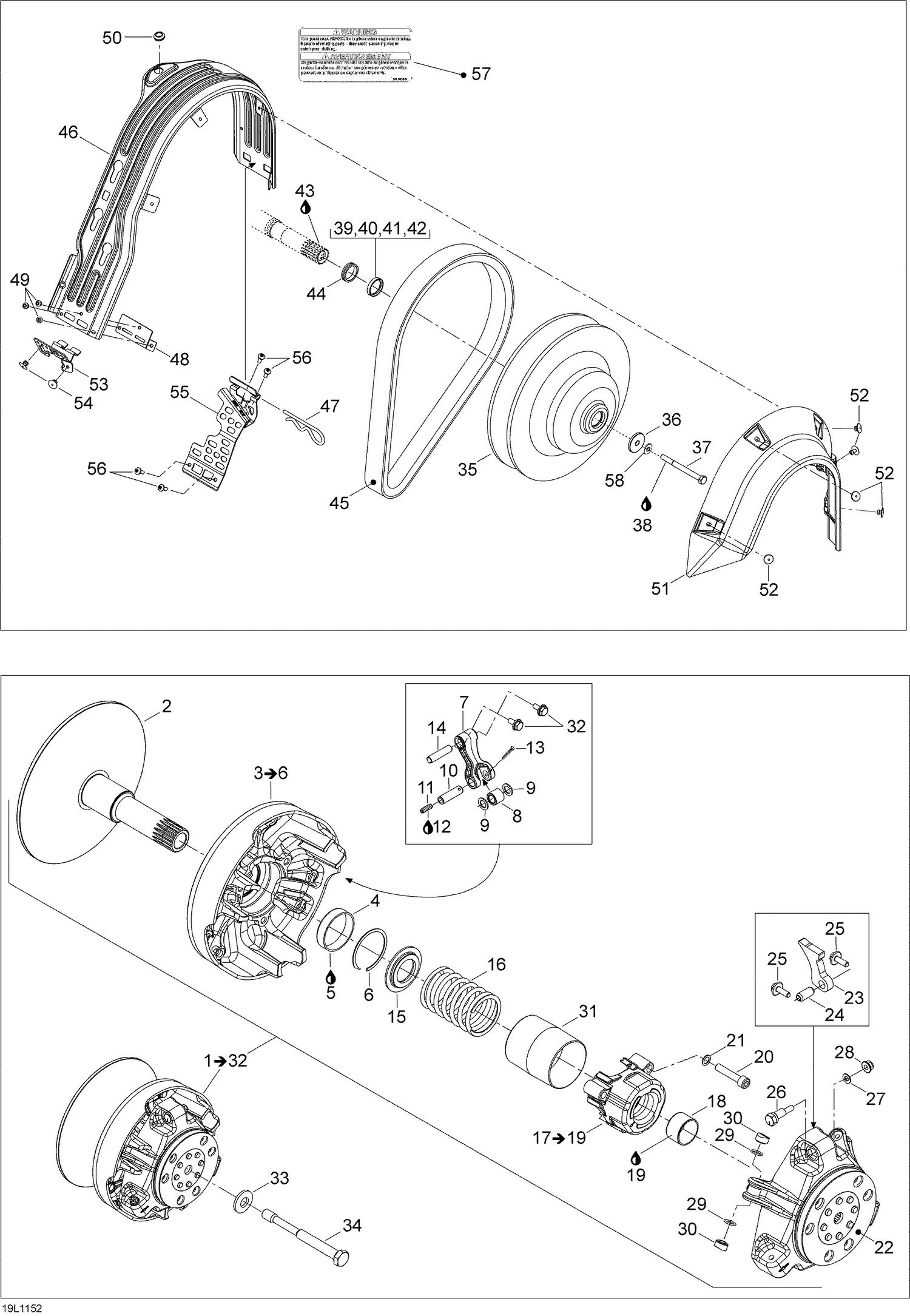

05- Drive System
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417223012 | FIXED FLANGE ASS'Y - Call your local BRP dealership |
| 4 | 417222758 | Bushing Outer Half |
| 5 | 413703100 | Loctite 609, 10 ml |
| 6 | 293370037 | Circlip |
| 7 | 417222671 | Lever |
| 8 | 417222947 | Roller |
| 9 | 417004302 | Stopper Washer |
| 10 | 417222595 | Threaded Pin, M6 |
| 11 | 206262099 | Socket Set Screw M6 X 20 |
| 12 | 293800060 | Loctite 243, 10 ml |
| 13 | 250400060 | Cotter Pin This part replaces 732958001. |
| 14 | 417223164 | Lever Axle |
| 15 | 417222312 | Spring Seat |
| 16 | 417222958 | SPRING, GREY/GREY - Call your local BRP dealership |
| 18 | 417009204 | Bushing |
| 19 | 413703100 | Loctite 609, 10 ml |
| 20 | 205084044 | Socket Head Screw M8 X 40 |
| 21 | 250200009 | Lock Washer 8 mm |
| 22 | 417223366 | GOVERNOR CUP ASS'Y - Call your local BRP dealership |
| 23 | 417223281 | RAMP 443 - Call your local BRP dealership |
| 24 | 250400050 | Spring Pin M10 X 22 |
| 25 | 250000418 | Flanged Hex. Screw M6 X 18, Scotch Grip |
| 26 | 417223501 | Calibration Screw This part replaces 417223460. |
| 27 | 417005600 | Washer |
| 28 | 233061414 | Hex. Flanged Nut M6 |
| 29 | 732401030 | O-Ring |
| 30 | 417223021 | Slider Shoe |
| 31 | 417009205 | Guard |
| 32 | 250000416 | Serrated Hex. Flange Bolt M6 |
| 33 | 250200006 | Spring Washer 14 mm |
| 34 | 417120000 | Drive Pulley Bolt |
| 35 | 417127250 | Driven Pulley Ass. |
| 36 | 503183100 | Washer |
| 37 | 207689534 | Hex. Flanged Scew M8 X 95 |
| 38 | 293800060 | Loctite 243, 10 ml |
| 39 | 504149100 | Spacer |
| 40 | 417300252 | Spacer |
| 41 | 417300265 | Spacer |
| 42 | 504112000 | Shim 0,5 mm. |
| 43 | 293800070 | Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 44 | 417300399 | Spacer |
| 45 | 417300534 | Drive Belt This part replaces 417300288. |
| 46 | 860200362 | BELT GUARD ASS'Y KIT - Call your local BRP dealership This part replaces 417300384. |
| 47 | 114045200 | Hair Pin |
| 48 | 417300380 | Reinforcement |
| 49 | 390909200 | Avex Rivet |
| 50 | 417300381 | Guide |
| 51 | 417300356 | Side Protector |
| 52 | 293150103 | Pop Rivet 3/16 |
| 53 | 417300360 | FRONT BELT GUARD BRACKET - Call your local BRP dealership |
| 54 | 293150104 | Pop Rivet 3/16 |
| 55 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership This part replaces 417300378. |
| 56 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 57 | 516004649 | Security label, Belt Guard |
