417222595
Pin

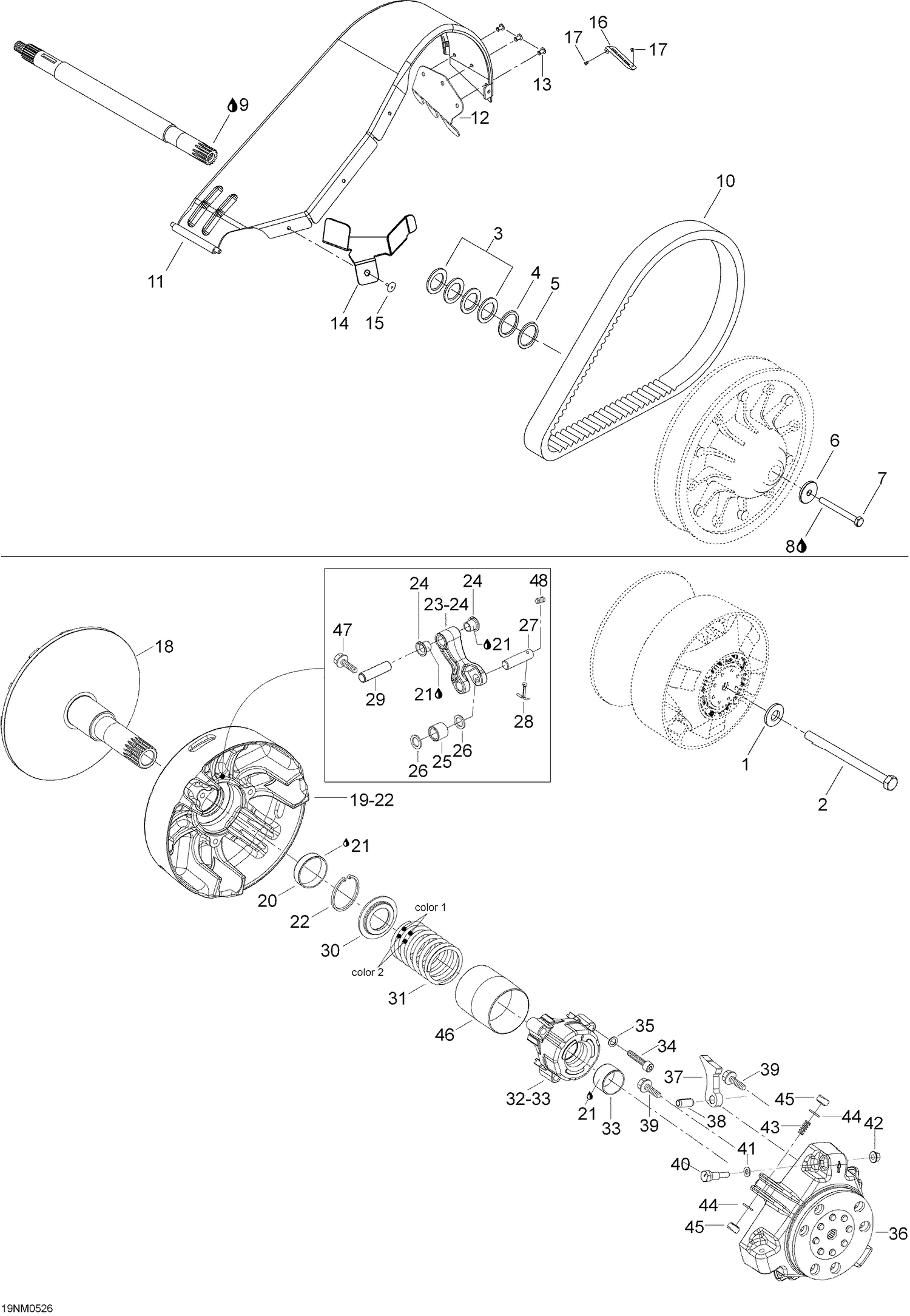

Схема сборки, где используется деталь
Used in (42 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 05- Drive System | Lynx / 2005 / Rave 440, 2005 / 05- Drive System | 27 |
| LNX_EN_US | 05- Drive System | Lynx / 2006 / Rave RC 453, 2006 / 05- Drive System | 25 |
| LNX_EN_US | 05- Drive System | Lynx / 2007 / Rave RC 440, 2007 / 05- Drive System | 25 |
| LNX_EN_US | 05- Pulley System | Lynx / 2008 / Rave / Rave RS 600, 2008 / 05- Pulley System | 10 |
| LNX_EN_US | 05- Drive System | Lynx / 2009 / Rave / Rave RE 800R PowerTEK, 2009 / 05- Drive System | 10 |
| LNX_EN_US | 05- Drive System | Lynx / 2009 / Rave / Rave RS 600, 2009 / 05- Drive System | 10 |
| LNX_EN_US | 05- Drive System | Lynx / 2010 / Rave / Rave RS 600, 2010 / 05- Drive System | 10 |
| LNX_EN_US | 05- Drive System | Lynx / 2011 / Rave / Rave RS 600, 2011 / 05- Drive System | 10 |
| LNX_EN_US | 05- Pulley System | Lynx / 2012 / Rave / Rave RS 600, 2012 / 05- Pulley System | 10 |
| LNX_EN_US | 05- Pulley System | Lynx / 2013 / Rave / Rave RS 600, 2013 000SFDB00 / 05- Pulley System | 10 |
| LNX_EN_US | 05- Pulley System | Lynx / 2014 / Rave / Rave RS 600, 2014 000SFEB00 / 05- Pulley System | 10 |
| LNX_EN_US | 05- Pulley System | Lynx / 2015 / Rave / Rave RS 600, 2015 000SFFB00 / 05- Pulley System | 10 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2005 / MX Z / MX Z X 440 Racing, 2005 / 05- Pulley System | 12 |
| SKI_DOO_EN_US | 05- Pulley System 800HO X | Ski-Doo / 2005 / Summit / Summit 800 HO, 2005 / 05- Pulley System 800HO X | 12 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2006 / MX Z / MX Z 1000 SDI Renegade X, 2006 000BT6A00 000BT6B00 000BT | 12 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2006 / MX Z / MX Z 440 Racing, 2006 000BM6A00 000BM6B00 / 05- Pulley S | 12 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2006 / Mach Z / Mach Z 1000 SDI Adrenaline & X, 2006 000AA6A00 000AA6B | 12 |
| SKI_DOO_EN_US | 05- Pulley System 800HO | Ski-Doo / 2006 / Summit / Summit 800 HO, Adrenaline & X, 2006 000CG6A00 000CG6B0 | 12 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2007 / MACH Z / MACH Z Adrenaline, 2007 / 05- Pulley System | 12 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2007 / MX Z / MX Z 1000 SDI Renegade RT, 2007 000BT7C00 000BT7D00 000B | 12 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2008 / MX Z / MX Z 600RS, 2008 000BM8A00 000BM8B00 / 05- Pulley System | 10 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2009 / MX Z / MX Z X 600RS, 2009 000BM9A00 000BM9B00 / 05- Pulley Syst | 10 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2009 / Summit / Summit HillClimb Edition, 2009 000CF9A00 / 05- Pulley | 10 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2010 / MX Z / MX Z X 600RS, 2010 000BMAA00 000BMAB00 / 05- Pulley Syst | 10 |
| SKI_DOO_EN_US | 05- Pulley System 800R PTEK | Ski-Doo / 2010 / Summit / Summit Everest 800R PTEK, 2010 000CTAA00 000CTAB00 000 | 11 |
| SKI_DOO_EN_US | 05- Pulley System 800R PTEK | Ski-Doo / 2010 / Summit / Summit HillClimb, 2010 000CFAA00 000CFAB00 / 05- Pulle | 11 |
| SKI_DOO_EN_US | 05- Pulley System 800R PTEK | Ski-Doo / 2010 / Summit / Summit X 800R PTEK, 2010 000CGAA00 000CGAB00 000CGAC00 | 11 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2011 / MX Z / MX Z X 600RS, 2011 000BMBA00 000BMBB00 / 05- Pulley Syst | 10 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2011 / Summit / Summit FREERIDE 800R E-TEC, 2011 000UMBA00 000UMBB00 0 | 10 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2012 / MX Z / MX Z X 600RS, 2012 000BMCA00 000BMCB00 / 05- Pulley Syst | 10 |
| SKI_DOO_EN_US | 05- Pulley System 800R ETEC | Ski-Doo / 2012 / Summit / Summit SP 800R E-TEC, 2012 000CTCA00 000CTCA00 000CTCC | 10 |
| SKI_DOO_EN_US | 05- Pulley System 800R PTEK | Ski-Doo / 2012 / Summit / Summit SPORT 800R P-TEK, 2012 000CBCA00 000CBCA00 / 05 | 10 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2012 / Summit / Summit X 800R E-TEC, 2012 000UNCA00 000UNCB00 000UNCC0 | 10 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2013 / FREERIDE / FREERIDE 154R, 800RE XP, 2013 000VDDA00 / 05- Pulley | 80 |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2013 / MX Z / MXZ X 600RS XP, 2013 000BMDA00 000BMDB00 / 05- Pulley Sy | 39 |
| SKI_DOO_EN_US | 05- Pulley System 800R PTEK | Ski-Doo / 2013 / SUMMIT / SUMMIT SPORT 800R PTEK XP, 2013 000CBDA00 000CBDB00 / | 80a |
| SKI_DOO_EN_US | 05- Pulley System _19M1438 | Ski-Doo / 2014 / MX Z / MXZ X 600RS XS RS, 2014 000BMEA00 000BMEB00 / 05- Pulley | 46 |
| SKI_DOO_EN_US | 05- Pulley System 800R PTEK | Ski-Doo / 2014 / SUMMIT / SUMMIT SPORT 800R POWERTEK XP 154, 2014 000CBEA00 000C | 81a |
| SKI_DOO_EN_US | 05- Pulley System _19M1542 | Ski-Doo / 2015 / MX Z / MXZ X-RS 600HOE XS RS, 2015 000BMFA00 000BMFB00 / 05- Pu | 30 |
| SKI_DOO_EN_US | 05- Pulley System _19M1516 | Ski-Doo / 2015 / SUMMIT / Summit Sport 800RPTEK XP154, 2015 000CBFA00 / 05- Pull | 42a |
| SKI_DOO_EN_US | 05- Pulley System | Ski-Doo / 2016 / FREERIDE Family / FREERIDE, 2016 000VAGA00 000VAGB00 000VAGC00 | 38a |
| SKI_DOO_EN_US | 05- Pulley System - 800R ETEC | Ski-Doo / 2016 / MXZ Family / MXZ 800R E-TEC 000MXGA00 000MXGB00 000MXGC00 000MX | 38a |
